Centre Console Mounted Switches of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Centre Console Mounted Switches

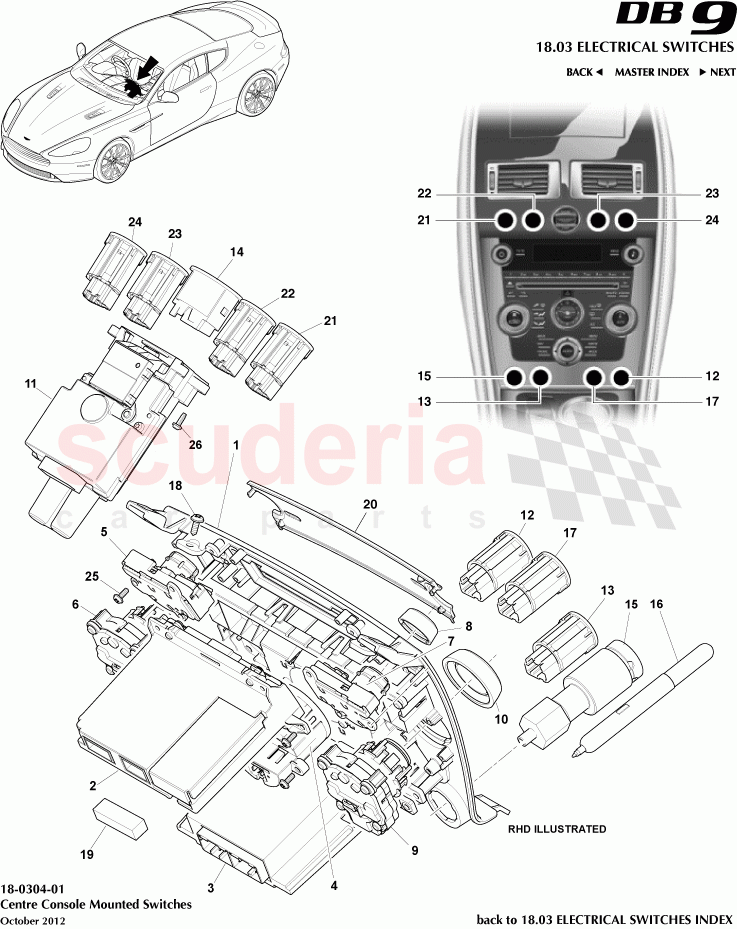

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318C612BA	Module, Centre Console ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315000BB	Analogue Clock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734CB	Switch body, Piano Black surround and Silver lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612DA	Module, Temp HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734DC	SWITCH MAIN BODY (ALUMINIUM)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318817BA	AUDIO CONTROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318783AA	Knob, HVAC control, satin chrome	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4319H386AL	Start Stop Ignition Switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418CA	Switch, Active Damping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418DA	Switch, DSC Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4319H420AJ	TRANS IGN BZL ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4356051BB	PEN HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700623	LAMY POCKET PEN-CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3314B626CB	SPORTS MODE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4304708BB	ICM LENS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

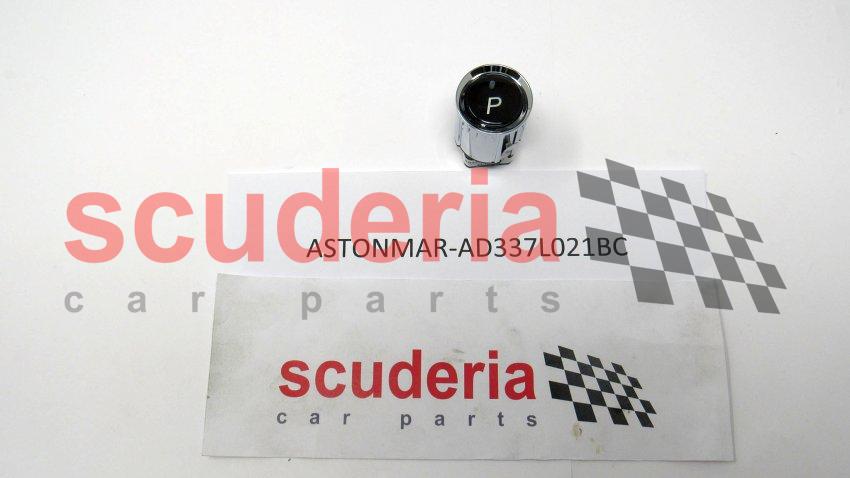

	AD337L021BC	PARK SWITCH AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

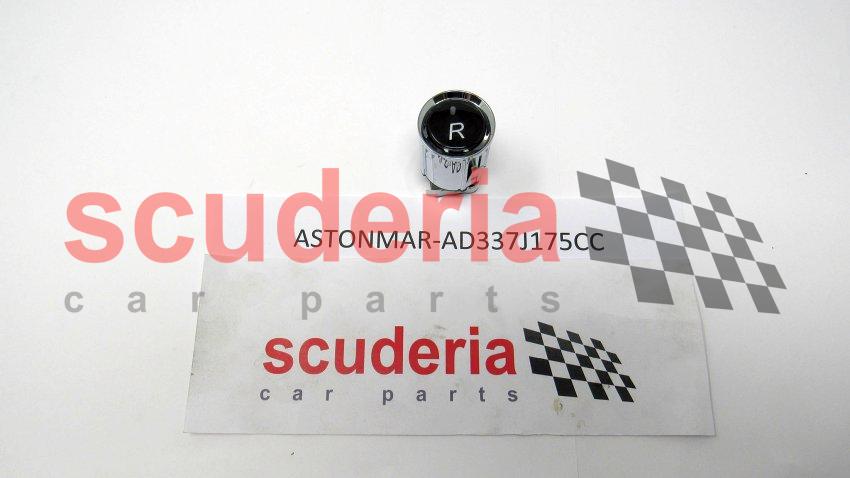

	AD337J175CC	REVERSE SWITCH AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD337A247BC	NEUTRAL SW AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

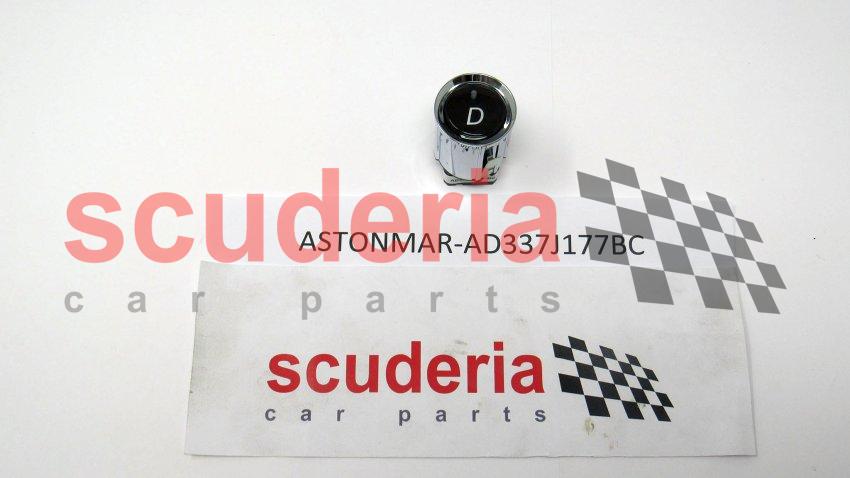

	AD337J177BC	DRIVE SWITCH AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701447	Screw, M4 x 12, Pan Head, Torx Screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4318C815BE	CENTRE STACK ASSY	CG4318C815BE CENTRE STACK ASSY	-	1	Enquire
-	CD3318C815JE	CENTRE STACK ASSY	CD3318C815JE CENTRE STACK ASSY	-	1	Enquire
-	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY	-	1	Enquire
-	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock From VIN B15574	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE	-	1	Enquire
3	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock Up to VIN B15573	-	1	Enquire
5	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
6	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control	-	1	Enquire
7	8D3313D734DC	SWITCH MAIN BODY (ALUMINIUM)	8D3313D734DC SWITCH MAIN BODY (ALUMINIUM)	-	1	Enquire
8	CG4318817BA	AUDIO CONTROL KNOB	CG4318817BA AUDIO CONTROL KNOB	-	2	Enquire
9	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control	-	1	Enquire
10	CG4318783AA	Knob, HVAC control, satin chrome	CG4318783AA Knob, HVAC control, satin chrome	-	2	Enquire
11	9G4319H386AL	Start Stop Ignition Switch	9G4319H386AL Start Stop Ignition Switch	-	2	Enquire
12	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping	-	1	Enquire
13	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control	-	1	Enquire
14	9G4319H420AJ	TRANS IGN BZL ASSY	9G4319H420AJ TRANS IGN BZL ASSY	-	1	Enquire
15	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER	-	1	Enquire
16	700623	LAMY POCKET PEN-CHROME	700623 LAMY POCKET PEN-CHROME	-	1	Enquire
17	AD3314B626CB	SPORTS MODE SWITCH	AD3314B626CB SPORTS MODE SWITCH	-	1	Enquire
18	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	4	Enquire
19	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE	-	1	Enquire
20	AG4304708BB	ICM LENS	AG4304708BB ICM LENS	-	1	Enquire
21	AD337L021BC	PARK SWITCH AUTO	AD337L021BC PARK SWITCH AUTO	-	1	Enquire
22	AD337J175CC	REVERSE SWITCH AUTO	AD337J175CC REVERSE SWITCH AUTO	-	1	Enquire
23	AD337A247BC	NEUTRAL SW AUTO	AD337A247BC NEUTRAL SW AUTO	-	1	Enquire
24	AD337J177BC	DRIVE SWITCH AUTO	AD337J177BC DRIVE SWITCH AUTO	-	1	Enquire
26	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	4	Enquire
