Aston Martin DB9 (2013-2016) - Air Con Lines Fittings

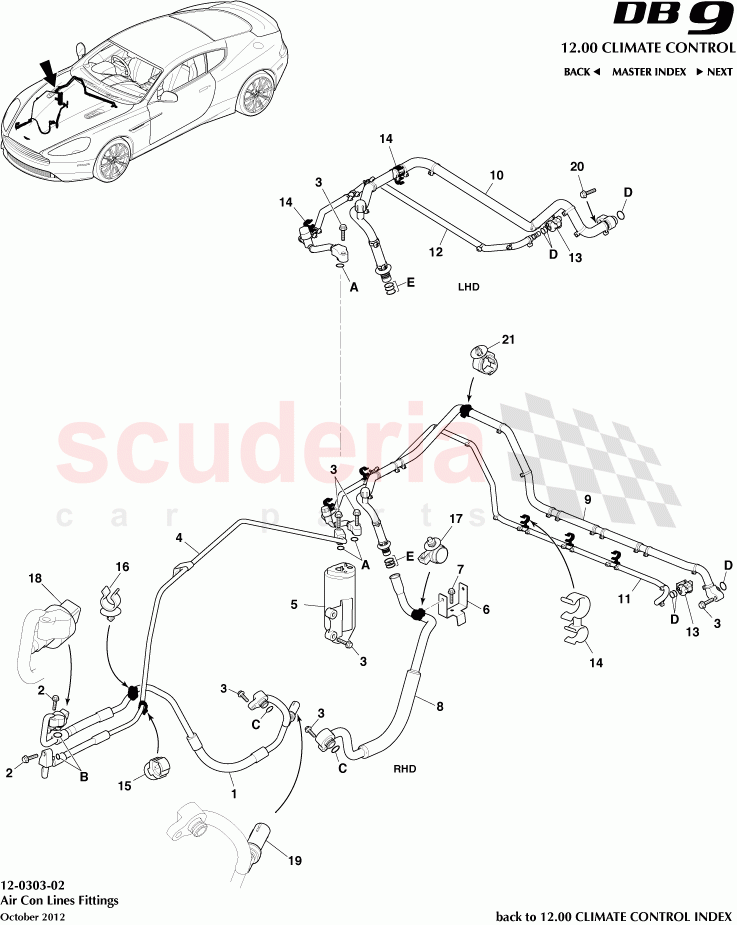

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3319972AC	Tube Assy, A/C Compressor to Condenser	$675.21	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3319D719AC	Tube Assy, Condenser to Receiver Drier	$144.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	$299.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	$42.79	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3319A705AA	Tube Assy, A/C Evaporator Outlet lower	$183.83	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	$362.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	$5.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	$14.96	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319A705BA	Tube Assy, A/C Evaporator Outlet, Upper	$201.47	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	$196.97	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319835BA	Tube Assy, Receiver Drier to Evaporator	$785.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434073AAA	CLAMP - LIQ	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	701182	Clip, Pipe Swivel	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	701572	Clip, Tube, 14mm Dia	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	$69.55	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910192	Switch, A/C High Pressure	$587.07	To Order

Photo	Part No	Description	Price (each)	Stock
	AG438911295	SW ASY-A/C PRES CTOF	$628.00	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	702291	Clip, 11-18 x 6.5 x 7	$1.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
A	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	$5.95	1
B	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2)	$6.06	1
D	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3	$14.96	1
E	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2	$9.73	1
1	CD3319972AC	Tube Assy, A/C Compressor to Condenser	CD3319972AC Tube Assy, A/C Compressor to Condenser	$675.21	1
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	$0.71	2
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free Only 4 Required For LHD	$0.45	5
4	CD3319D719AC	Tube Assy, Condenser to Receiver Drier	CD3319D719AC Tube Assy, Condenser to Receiver Drier	$144.43	1
5	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier	$299.56	1
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL RHD Only	$42.79	1
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	$0.53	1
8	CD3319A705AA	Tube Assy, A/C Evaporator Outlet lower	CD3319A705AA Tube Assy, A/C Evaporator Outlet lower	$183.83	1
9	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper RHD Only	$362.69	1
10	AG4319A705BA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705BA Tube Assy, A/C Evaporator Outlet, Upper LHD Only	$201.47	1
11	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	AG4319835CA Tube Assy, Receiver Drier to Evaporator RHD Only	$196.97	1
12	AG4319835BA	Tube Assy, Receiver Drier to Evaporator	AG4319835BA Tube Assy, Receiver Drier to Evaporator LHD Only	$785.27	1
13	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ	$5.42	1
14	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel Only 2 Required For LHD	$2.10	5
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	$1.44	1
16	701572	Clip, Tube, 14mm Dia	701572 Clip, Tube, 14mm Dia	$1.25	1
17	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) 100 Per Pack	$69.55	1
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure	$587.07	1
19	AG438911295	SW ASY-A/C PRES CTOF	AG438911295 SW ASY-A/C PRES CTOF	$628.00	1
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head LHD Only	$0.21	1
21	702291	Clip, 11-18 x 6.5 x 7	702291 Clip, 11-18 x 6.5 x 7 RHD Only	$1.60	1
