Speakers - Alpine of Aston Martin Aston Martin DB9 (2013-2016)

View All

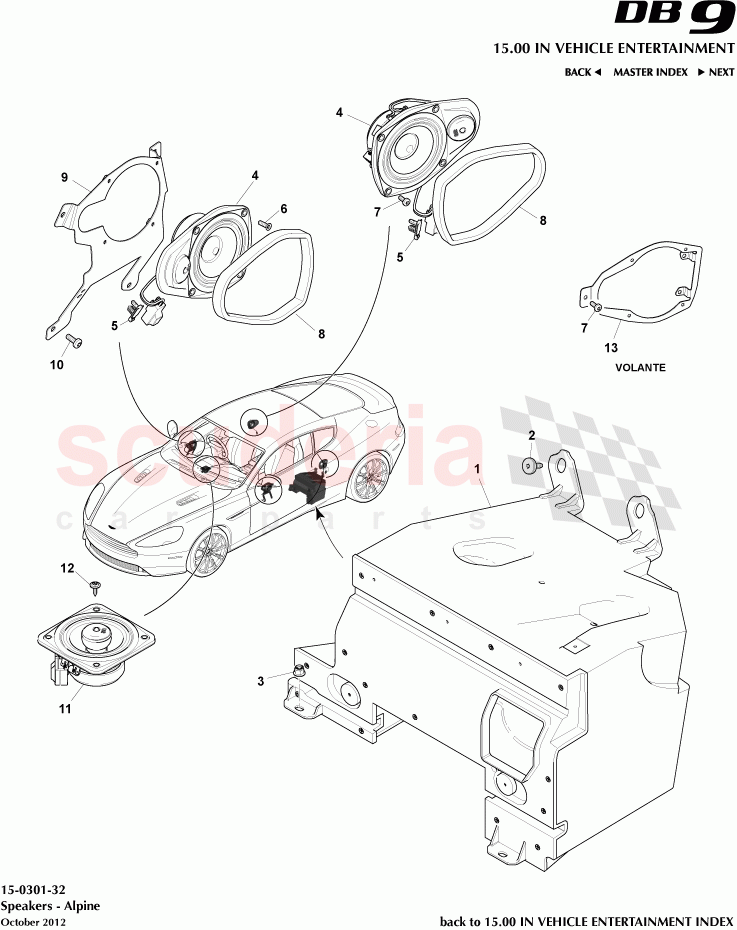

Aston Martin DB9 (2013-2016) - Speakers - Alpine

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4318808GC	SUB WOOFER & SHIELD	$786.27	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4318808JB	Speaker, Side, Alpine	$160.96	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430110042	Retainer, Connector	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	707515	SCREW M5 X 16 PAN HEAD BLACK	$4.06	To Order

Photo	Part No	Description	Price (each)	Stock
	703735	Screw, M5 x 12, Pan Head	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318808EB	Gasket, Door Speaker	$10.16	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318808KC	Bracket, Front Door Speaker, RH	$32.23	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4318808FA	Speaker, Centre, Alpine	$153.58	To Order

Photo	Part No	Description	Price (each)	Stock
	703736	Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4318808AA	REAR SPEAKER BRACKETS RH	$37.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	6G3318808LC	Bracket, Front Door Speaker, LH	6G3318808LC Bracket, Front Door Speaker, LH	$32.23	1
-	8G4318808BA	REAR SPEAKER BRACKETS LH	8G4318808BA REAR SPEAKER BRACKETS LH Volante	$37.46	1
1	9G4318808GC	SUB WOOFER & SHIELD	9G4318808GC SUB WOOFER & SHIELD	$786.27	1
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 20 per Pack	$21.68	2
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	2
4	9G4318808JB	Speaker, Side, Alpine	9G4318808JB Speaker, Side, Alpine	$160.96	4
5	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector	$0.37	4
6	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK 4 per Speaker	$4.06	8
7	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head Coupe - 4 per Speaker, Volante - 7 per Speaker	$0.57	14
8	6G3318808EB	Gasket, Door Speaker	6G3318808EB Gasket, Door Speaker	$10.16	4
9	6G3318808KC	Bracket, Front Door Speaker, RH	6G3318808KC Bracket, Front Door Speaker, RH	$32.23	1
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	$0.36	8
11	9G4318808FA	Speaker, Centre, Alpine	9G4318808FA Speaker, Centre, Alpine	$153.58	1
12	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	4
13	8G4318808AA	REAR SPEAKER BRACKETS RH	8G4318808AA REAR SPEAKER BRACKETS RH Volante	$37.46	1
