Body Harness Assembly - VOLANTE of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Body Harness Assembly - VOLANTE

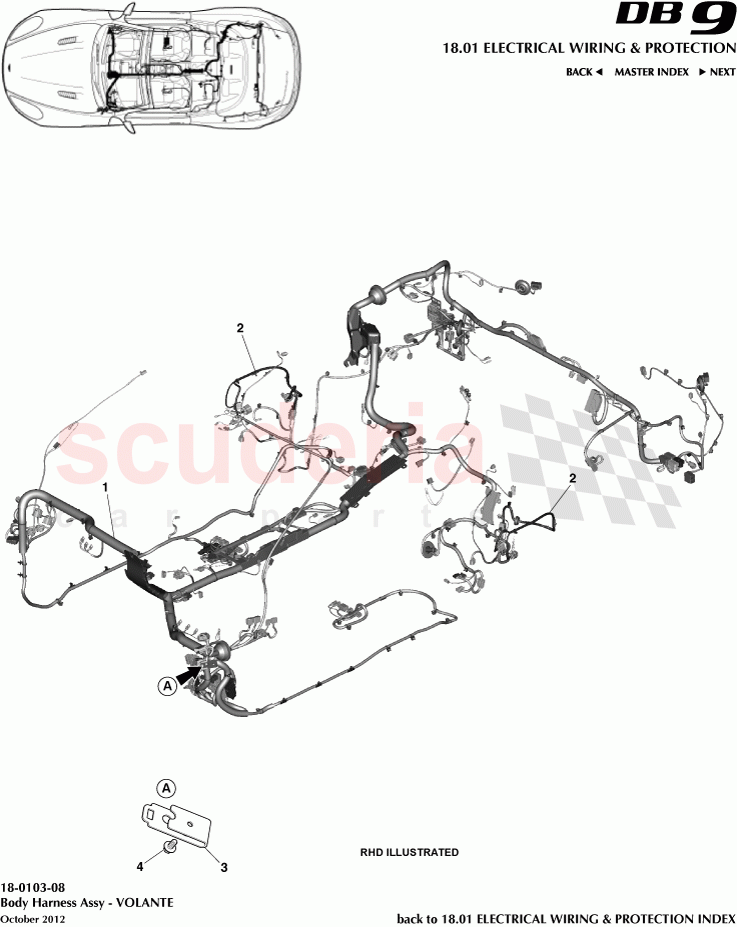

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG4314A005HC	Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314284AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314N003CG	Inline Bracket, Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702299	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG4314A005HA	Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O)	EG4314A005HA Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O) 14.5MY	-	1	Enquire
-	DG4314A005GD	Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O)	DG4314A005GD Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O) Up to 14.5MY	-	1	Enquire
-	EG4314A005GA	Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O)	EG4314A005GA Harness Assembly, Cabin, LHD, Bang & Olufsen (B&O) 14.5MY	-	1	Enquire
-	DG4314A005DD	Harness Assembly, Cabin, RHD, Alpine	DG4314A005DD Harness Assembly, Cabin, RHD, Alpine Up to 14.5MY	-	1	Enquire
-	EG4314A005DA	Harness Assembly, Cabin, RHD, Alpine	EG4314A005DA Harness Assembly, Cabin, RHD, Alpine 14.5MY	-	1	Enquire
-	DG4314A005CD	Harness Assembly, Cabin, LHD, Alpine	DG4314A005CD Harness Assembly, Cabin, LHD, Alpine Up to 14.5MY	-	1	Enquire
-	EG4314A005CA	Harness Assembly, Cabin, LHD, Alpine	EG4314A005CA Harness Assembly, Cabin, LHD, Alpine 14.5MY	-	1	Enquire
-	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head Ground Positions	-	28	Enquire
-	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	A/R	Enquire
1	DG4314A005HC	Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O)	DG4314A005HC Harness Assembly, Cabin, RHD, Bang & Olufsen (B&O) Up to 14.5MY	-	1	Enquire
2	4G4314284AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	4G4314284AB REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	-	2	Enquire
3	4G4314N003CG	Inline Bracket, Connector	4G4314N003CG Inline Bracket, Connector	-	1	Enquire
4	702299	Screw, M6 x 12, Hex Flange Head	702299 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
