Aston Martin DB9 (2013-2016) - Speakers - B&O

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9D3318C956AC Sub Enclosure Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE Enquire To Order
Photo Part No Description Price (each) Stock
9D336696XBA Speaker Box, Front Door, RH Enquire To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm Enquire To Order
Photo Part No Description Price (each) Stock
9D3346684AA DB9 COUPE RR SPEAKER RH Enquire To Order
Photo Part No Description Price (each) Stock
703735 Screw, M5 x 12, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
9D3318D801AB ACOUSTIC LENS TWEETER-BASALT Enquire To Order
Photo Part No Description Price (each) Stock
705464 Screw, 4.2 x 16, Washer Head, Self Tapping Enquire To Order
Photo Part No Description Price (each) Stock
9D3370451AB Speaker Box Assy, Centre Enquire To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head Enquire To Order
Photo Part No Description Price (each) Stock
9D336696XAC Speaker Box, Footwell, RH Enquire To Order
Photo Part No Description Price (each) Stock
9D336696YAC Speaker Box, Footwell, LH Enquire To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
9D3319080AA Mounting Bracket, Loudspeaker Enquire To Order
Photo Part No Description Price (each) Stock
9D332B100AC Bracket, Foot Well Speaker Box, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH Enquire To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head Enquire To Order
View All

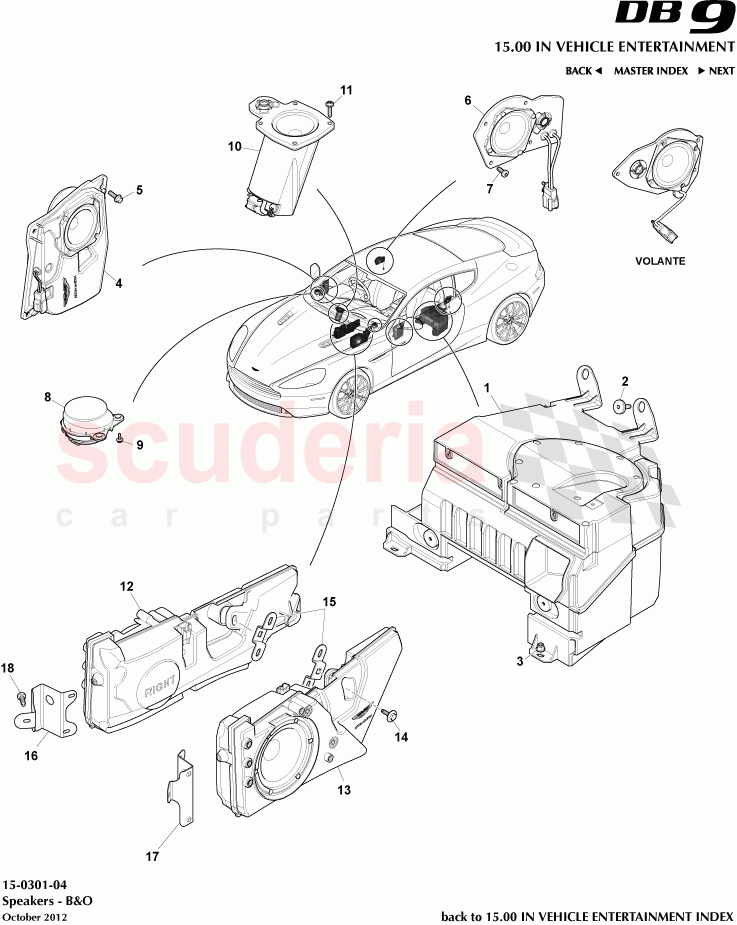

Speakers - B&O of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9D336696YBA
Speaker Box, Front Door, LH 		- 1 Enquire
- 9D3346685AA
DB9 COUPE RR SPEAKER LH 		- 1 Enquire
- 9D3346684BA
Speaker, Rear, RH Volante 		- 1 Enquire
- 9D3346685BA
Speaker, Rear, LH Volante 		- 1 Enquire
1 9D3318C956AC
Sub Enclosure 		- 1 Enquire
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 2 Enquire
3 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		- 2 Enquire
4 9D336696XBA
Speaker Box, Front Door, RH 		- 1 Enquire
5 700607
Screw Hex Flange Head M6 x 16mm
4 Per Door 		- 8 Enquire
6 9D3346684AA
DB9 COUPE RR SPEAKER RH 		- 1 Enquire
7 703735
Screw, M5 x 12, Pan Head
4 Per Speaker 		- 8 Enquire
8 9D3318D801AB
ACOUSTIC LENS TWEETER-BASALT 		- 2 Enquire
9 705464
Screw, 4.2 x 16, Washer Head, Self Tapping 		- 3 Per Tweeter Enquire
10 9D3370451AB
Speaker Box Assy, Centre 		- 1 Enquire
11 703736
Screw Self Tapping, 4.2 x 19, Washer Head 		- 1 Enquire
12 9D336696XAC
Speaker Box, Footwell, RH 		- 1 Enquire
13 9D336696YAC
Speaker Box, Footwell, LH 		- 1 Enquire
14 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
2 Per Speaker 		- 4 Enquire
15 9D3319080AA
Mounting Bracket, Loudspeaker 		- 2 Enquire
16 9D332B100AC
Bracket, Foot Well Speaker Box, RH 		- 1 Enquire
17 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH 		- 1 Enquire
18 703026
Screw, M5 x 16, Hex Flange Head 		- 6 Enquire
