Load Compartment Fuse Box

Find Your Part

Aston Martin DB9 (2013-2016) - Load Compartment Fuse Box

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4314A073AJ Fusebox, Rear $459.25 To Order
Photo Part No Description Price (each) Stock
4G4314A301AH Bracket, Boot Fusebox $47.71 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 To Order
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE $0.50 To Order
Photo Part No Description Price (each) Stock
3785236 Protector, Power Stud $6.04 To Order
Photo Part No Description Price (each) Stock
1R123710526 RELAY-CHANGE OVER 40A MAXI $10.14 To Order
View All

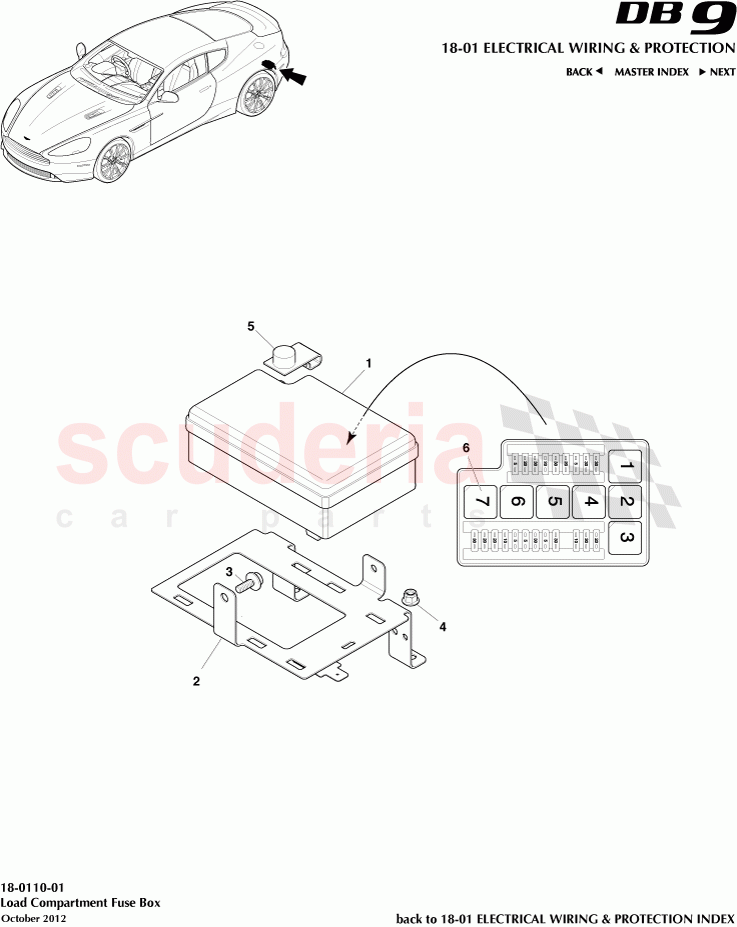

Load Compartment Fuse Box of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G4314A073AJ
Fusebox, Rear 		$459.25 1
2 4G4314A301AH
Bracket, Boot Fusebox 		$47.71 1
3 703151
Screw M6x16 Washer Hex HD Chrome Free 		$0.53 1
4 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		$0.50 2
5 3785236
Protector, Power Stud 		$6.04 1
6 1R123710526
RELAY-CHANGE OVER 40A MAXI 		$10.14 7
