Engine Wiring

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Engine Wiring

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD3312B637AH HARNESS ASSY ENGINE $8,917.68 To Order
Photo Part No Description Price (each) Stock
4G4314A004GF Bracket, Bank A, RH, CMS Sensor Enquire To Order
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL $42.79 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 IN STOCK
View All

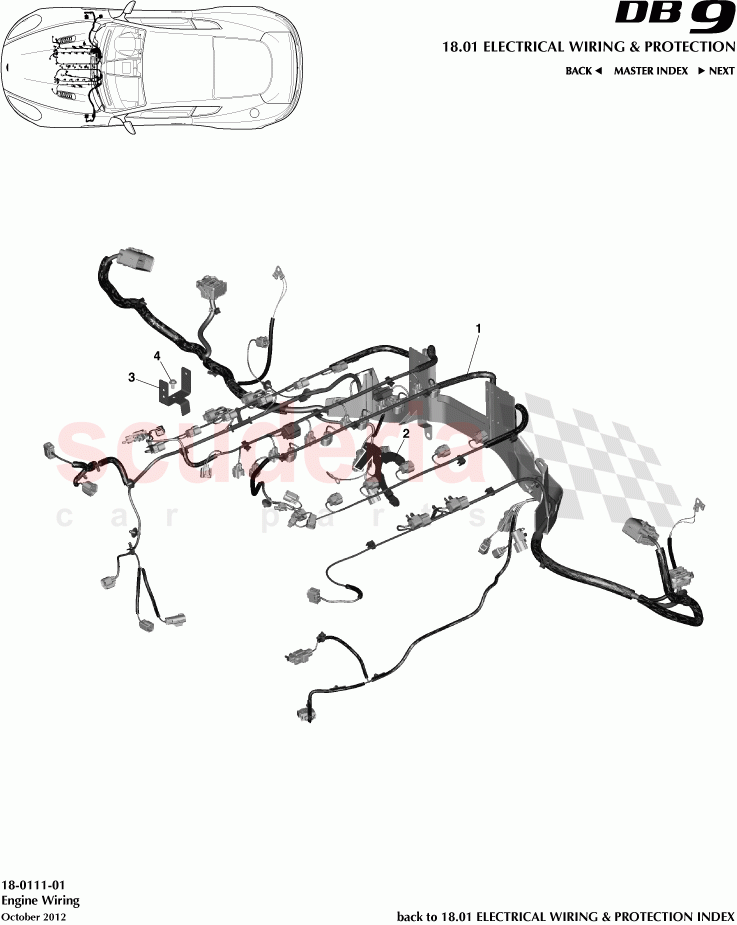

Engine Wiring of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CD3312B637AH
HARNESS ASSY ENGINE 		$8,917.68 1
2 4G4314A004GF
Bracket, Bank A, RH, CMS Sensor 		- 1 Enquire
3 4G436147XAD
BRACKET - AIRCON / ELECTRICAL
LHD Only 		$42.79 1
4 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.53 1
