Hypoid Unit, Drive and Prop Shafts of Aston Martin Aston Martin DB7 Vantage

View All

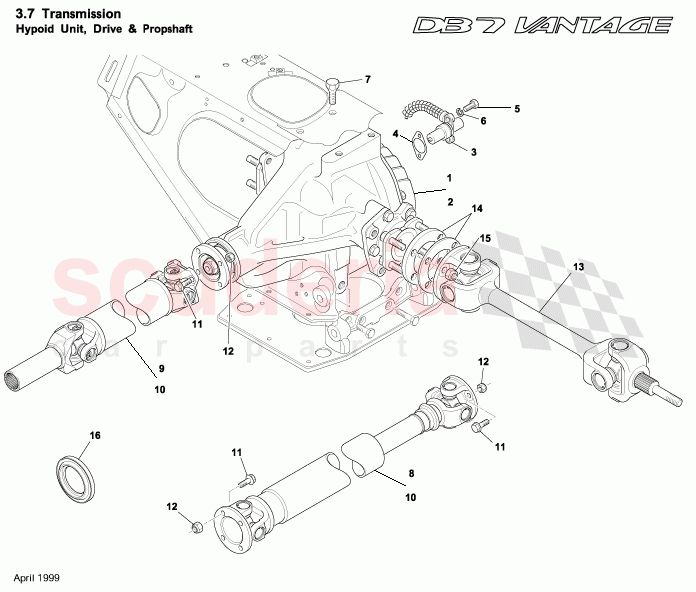

Aston Martin DB7 Vantage - Hypoid Unit, Drive and Prop Shafts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91431	HYPOID 3.77	Enquire	To Order
	91500	HYPOID 3.77	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91504	HYPOID 4.09 GT	Enquire	To Order
	91501	Differential unit 3.06: 1 - Recon	Enquire	To Order
	91432	HYPOID 3.06	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9080245	WHEEL SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3751825	SHIM-SPEEDO TRANSDCR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697435	SCREW M6 x 16 HEX HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703128	WASHER LOCK M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	2783418	SCREW 1/2UNCx1 5/8 CSK HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31124071AA	BOLT - PROP SHAFT	Enquire	To Order
	31120191AD	ASSY DRIVESHAFT AUTO	Enquire	To Order
	3185897	PROPSHAFT-AUTO ZERO BALANCE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	31140012AA	ASSEMBLY PROPSHAFT MANUAL	Enquire	To Order
	91747	P/SHAFT-ZERO BAL-M	Enquire	To Order
	91746	ASSY-DRIVESHAFT MANL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3183482	U/J KIT- AUTO PROPSHAFT	Enquire	To Order
	3183483	U/J KIT- MANUAL PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3180504	BOLT- PROPSHAFT COUPLING 3/8in	Enquire	To Order
	31124071AA	BOLT - PROP SHAFT	Enquire	To Order
	699319	BOLT 3/8 UNF X 1 1/2 8.8 ZINC PASSIVATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697220	NUT 3/8in UNF NYLOC	Enquire	IN STOCK
	697529	NUT M10 x 1 HEX CONE	Enquire	To Order
	697220	NUT 3/8in UNF NYLOC	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	2680854	HALF SHAFT ASSY	Enquire	To Order
	91869	HALF SHAFT ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2683233	SPACER-HALFSHAFT .40	Enquire	To Order
	2683234	SPACER-H/SHAFT 45mm	Enquire	To Order
	2683235	SPACER-H/SHAFT -50mm	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697204	LOCKNUT 7/16in UNF PREV. TOR HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2785817	HYPOID DRIVE FLANGE	Enquire	To Order
	2783420	Pinion Oil Seal	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91431	HYPOID 3.77	91431 HYPOID 3.77 Manual Up to (V) 401693	-	1	Enquire
1	91500	HYPOID 3.77	91500 HYPOID 3.77 Manual From (V) 401694	-	1	Enquire
2	91504	HYPOID 4.09 GT	91504 HYPOID 4.09 GT Manual Optional, standard on GT	-	1	Enquire
2	91501	Differential unit 3.06: 1 - Recon	91501 Differential unit 3.06: 1 - Recon Auto From (V) 401694 -Recon	-	1	Enquire
2	91432	HYPOID 3.06	91432 HYPOID 3.06 Auto Up to (V) 401693	-	1	Enquire
2	26124437AA	DRIVE UNIT - AUTO	26124437AA DRIVE UNIT - AUTO Auto From (V) 401694	-	1	Enquire
2	26124747AA	Differential unit	26124747AA Differential unit Manual Middle East	-	1	Enquire
2	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm) Middle East cars	-	1	Enquire
2	32124658AA	Duct, differential	32124658AA Duct, differential Middle East cars	-	1	Enquire
2	26124746AA	Differential unit	26124746AA Differential unit Auto Middle East	-	1	Enquire
2	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper Middle East cars	-	1	Enquire
2	26124657AA	Rear cover, differential	26124657AA Rear cover, differential	-	1	Enquire
3	9080245	WHEEL SPEED SENSOR	9080245 WHEEL SPEED SENSOR	-	1	Enquire
4	3751825	SHIM-SPEEDO TRANSDCR IN STOCK	3751825 SHIM-SPEEDO TRANSDCR IN STOCK	-	5	Enquire
5	697435	SCREW M6 x 16 HEX HEAD GRADE 8.8	697435 SCREW M6 x 16 HEX HEAD GRADE 8.8	-	2	Enquire
6	703128	WASHER LOCK M6 IN STOCK	703128 WASHER LOCK M6 IN STOCK	-	2	Enquire
7	2783418	SCREW 1/2UNCx1 5/8 CSK HEAD	2783418 SCREW 1/2UNCx1 5/8 CSK HEAD Hypoid to crossbeam	-	4	Enquire
8	31124071AA	BOLT - PROP SHAFT	31124071AA BOLT - PROP SHAFT Up to (V) 401267	-	1	Enquire
8	31120191AD	ASSY DRIVESHAFT AUTO	31120191AD ASSY DRIVESHAFT AUTO Up to (V) 401267	-	1	Enquire
8	3185897	PROPSHAFT-AUTO ZERO BALANCE	3185897 PROPSHAFT-AUTO ZERO BALANCE From (V) 401268	-	1	Enquire
8	31120191AE	ASSY DRIVESHAFT AUTO	31120191AE ASSY DRIVESHAFT AUTO From (V) 401268	-	1	Enquire
9	31140012AA	ASSEMBLY PROPSHAFT MANUAL	31140012AA ASSEMBLY PROPSHAFT MANUAL Zagato	-	1	Enquire
9	91747	P/SHAFT-ZERO BAL-M	91747 P/SHAFT-ZERO BAL-M	-	1	Enquire
9	91746	ASSY-DRIVESHAFT MANL	91746 ASSY-DRIVESHAFT MANL	-	1	Enquire
10	3183482	U/J KIT- AUTO PROPSHAFT	3183482 U/J KIT- AUTO PROPSHAFT Not illustrated	-	1	Enquire
10	3183483	U/J KIT- MANUAL PROPSHAFT	3183483 U/J KIT- MANUAL PROPSHAFT Not illustrated	-	2	Enquire
11	3180504	BOLT- PROPSHAFT COUPLING 3/8in	3180504 BOLT- PROPSHAFT COUPLING 3/8in Manual Up to (V) 401267	-	4	Enquire
11	31124071AA	BOLT - PROP SHAFT	31124071AA BOLT - PROP SHAFT Manual From (V) 401268	-	4	Enquire
11	699319	BOLT 3/8 UNF X 1 1/2 8.8 ZINC PASSIVATE	699319 BOLT 3/8 UNF X 1 1/2 8.8 ZINC PASSIVATE Auto Up to (V) 401267	-	4	Enquire
11	3180504	BOLT- PROPSHAFT COUPLING 3/8in	3180504 BOLT- PROPSHAFT COUPLING 3/8in Auto Up to (V) 401267	-	4	Enquire
11	31124071AA	BOLT - PROP SHAFT	31124071AA BOLT - PROP SHAFT Auto From (V) 401268	-	8	Enquire
12	697220	NUT 3/8in UNF NYLOC IN STOCK	697220 NUT 3/8in UNF NYLOC Manual Up to (V) 401267 IN STOCK	-	4	Enquire
12	697529	NUT M10 x 1 HEX CONE	697529 NUT M10 x 1 HEX CONE Manual From (V) 401268	-	4	Enquire
12	697220	NUT 3/8in UNF NYLOC IN STOCK	697220 NUT 3/8in UNF NYLOC Auto Up to (V) 401267 IN STOCK	-	8	Enquire
12	697529	NUT M10 x 1 HEX CONE	697529 NUT M10 x 1 HEX CONE Auto From (V) 401268	-	8	Enquire
13	2680854	HALF SHAFT ASSY	2680854 HALF SHAFT ASSY Up to (V) 300831	-	2	Enquire
13	91869	HALF SHAFT ASSY	91869 HALF SHAFT ASSY From (V) 300832	-	2	Enquire
14	2683233	SPACER-HALFSHAFT .40	2683233 SPACER-HALFSHAFT .40 Use selectively	-	-	Enquire
14	2683234	SPACER-H/SHAFT 45mm	2683234 SPACER-H/SHAFT 45mm Use selectively	-	-	Enquire
14	2683235	SPACER-H/SHAFT -50mm	2683235 SPACER-H/SHAFT -50mm Use selectively	-	-	Enquire
14	2683236	SPACER-H/SHAFT -55mm	2683236 SPACER-H/SHAFT -55mm Use selectively	-	-	Enquire
14	2683237	SPACER-H/SHAFT -60mm	2683237 SPACER-H/SHAFT -60mm Use selectively	-	-	Enquire
14	2683238	SPACER-H/SHAFT -65mm	2683238 SPACER-H/SHAFT -65mm Use selectively	-	-	Enquire
14	2683239	SPACER-H/SHAFT -70mm	2683239 SPACER-H/SHAFT -70mm Use selectively	-	-	Enquire
14	2683232	SPACER-H/SHAFT 35mm	2683232 SPACER-H/SHAFT 35mm Use selectively	-	2	Enquire
15	697204	LOCKNUT 7/16in UNF PREV. TOR HEX	697204 LOCKNUT 7/16in UNF PREV. TOR HEX	-	8	Enquire
16	2785817	HYPOID DRIVE FLANGE	2785817 HYPOID DRIVE FLANGE	-	1	Enquire

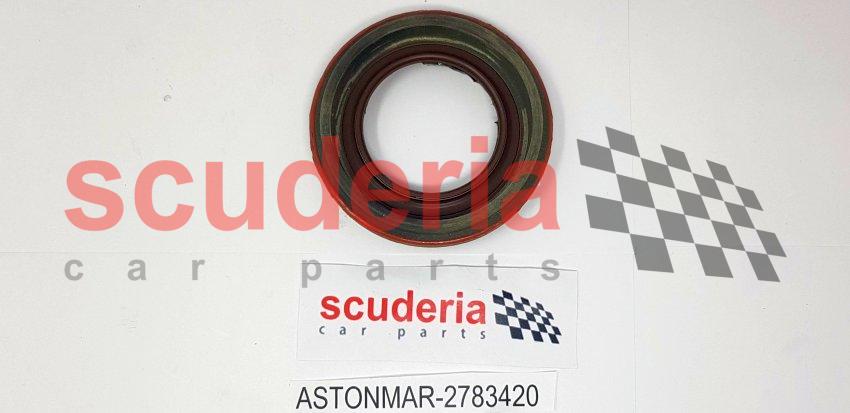

16	2783420	Pinion Oil Seal IN STOCK	2783420 Pinion Oil Seal IN STOCK	-	1	Enquire
