Clutch Hydraulics of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Clutch Hydraulics

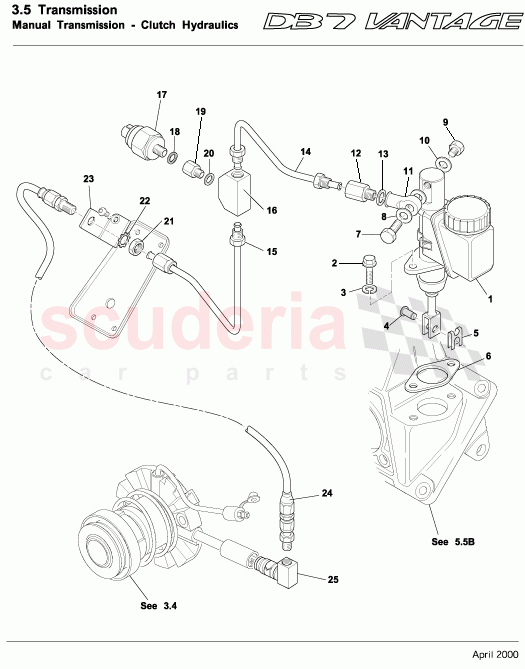

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33125415AA	CLUTCH MASTER CYLINDER - GT	Enquire	To Order
	33125421AA	C.S.C. BLEED ADAPTOR WASHER - GT	Enquire	To Order
	33125420AA	FEED ADAPTOR - GT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697131	WASHER 5/16 SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2981266	PIN-5/16inDIA SHANKx 1/2in LONG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3380240	CLUTCH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3380486	BOLT-BANJO 3/8in UNF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3381138	WASHER-COPPER 10.2 ID x 14. 0 OD 1.5mm THICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697347	SCREW 3/8 UNF x 3/8 HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384731	WASHER COPPER 0.433 id 3/4 od	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3380485	BANJO ADAPT-STRAIGHT 3/8in UNF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697105	WASHER-COPPER 25/64inIDx 5/8in OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33121337AB	CLUTCH PIPES MASTER CYLINDER TO T PIECE LHD	Enquire	To Order
	33121336AC	CLUTCH PIPE RHD MASTER CYLINDER TO T PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33123504AA	CLUTCH PIPE RHD T PIECE TO FLEXI HOSE	Enquire	To Order
	33120059AA	CLUTCH PIPE LHD ''T' PIECE TO FLEXI HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384322	`T' PIECE-CLUTCH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1186531	KIT-PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11122078AA	SEALING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11122077AA	Adaptor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3384731	WASHER COPPER 0.433 id 3/4 od	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697633	NUT-M12 x 1mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703130	Washer Shake Proof EXT M12 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33121341AA	BRACKET CLUTCH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33125418AA	FLEX HOSE ASY CLUTCH - GT	Enquire	To Order
	33121338AA	ASSY FLEX HOSE CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33125421AA	C.S.C. BLEED ADAPTOR WASHER - GT	Enquire	To Order
	1R12382661AC	HOSE ASSY CSC BLEED	Enquire	To Order
	33125417AA	C.S.C. BLEEDER ADAPTOR - GT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	33125415AA	CLUTCH MASTER CYLINDER - GT	33125415AA CLUTCH MASTER CYLINDER - GT GT	-	1	Enquire
1	33125421AA	C.S.C. BLEED ADAPTOR WASHER - GT	33125421AA C.S.C. BLEED ADAPTOR WASHER - GT GT	-	1	Enquire
1	33125420AA	FEED ADAPTOR - GT	33125420AA FEED ADAPTOR - GT GT	-	1	Enquire
1	33122010AA	CLUTCH MASTER CYLINDER	33122010AA CLUTCH MASTER CYLINDER	-	1	Enquire
2	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	697133 SCREW M8 x 20 HEX HEAD GRD 8.8	-	2	Enquire
3	697131	WASHER 5/16 SPRING	697131 WASHER 5/16 SPRING	-	2	Enquire
4	2981266	PIN-5/16inDIA SHANKx 1/2in LONG	2981266 PIN-5/16inDIA SHANKx 1/2in LONG	-	1	Enquire
5	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16	-	1	Enquire
6	3380240	CLUTCH GASKET	3380240 CLUTCH GASKET	-	1	Enquire
7	3380486	BOLT-BANJO 3/8in UNF	3380486 BOLT-BANJO 3/8in UNF	-	1	Enquire
8	3381138	WASHER-COPPER 10.2 ID x 14. 0 OD 1.5mm THICK	3381138 WASHER-COPPER 10.2 ID x 14. 0 OD 1.5mm THICK	-	2	Enquire
9	697347	SCREW 3/8 UNF x 3/8 HEX HEAD	697347 SCREW 3/8 UNF x 3/8 HEX HEAD	-	1	Enquire
10	3384731	WASHER COPPER 0.433 id 3/4 od	3384731 WASHER COPPER 0.433 id 3/4 od	-	1	Enquire
11	3380485	BANJO ADAPT-STRAIGHT 3/8in UNF	3380485 BANJO ADAPT-STRAIGHT 3/8in UNF	-	1	Enquire
13	697105	WASHER-COPPER 25/64inIDx 5/8in OD	697105 WASHER-COPPER 25/64inIDx 5/8in OD	-	1	Enquire
14	33121337AB	CLUTCH PIPES MASTER CYLINDER TO T PIECE LHD	33121337AB CLUTCH PIPES MASTER CYLINDER TO T PIECE LHD LHD	-	1	Enquire
14	33121336AC	CLUTCH PIPE RHD MASTER CYLINDER TO T PIECE	33121336AC CLUTCH PIPE RHD MASTER CYLINDER TO T PIECE RHD	-	1	Enquire
15	33123504AA	CLUTCH PIPE RHD T PIECE TO FLEXI HOSE	33123504AA CLUTCH PIPE RHD T PIECE TO FLEXI HOSE RHD	-	1	Enquire
15	33120059AA	CLUTCH PIPE LHD ''T' PIECE TO FLEXI HOSE	33120059AA CLUTCH PIPE LHD ''T' PIECE TO FLEXI HOSE LHD	-	1	Enquire
16	3384322	`T' PIECE-CLUTCH PIPE	3384322 `T' PIECE-CLUTCH PIPE	-	1	Enquire
17	1186531	KIT-PRESSURE SWITCH	1186531 KIT-PRESSURE SWITCH	-	1	Enquire
18	11122078AA	SEALING WASHER	11122078AA SEALING WASHER	-	1	Enquire
19	11122077AA	Adaptor	11122077AA Adaptor	-	1	Enquire
20	3384731	WASHER COPPER 0.433 id 3/4 od	3384731 WASHER COPPER 0.433 id 3/4 od	-	1	Enquire
21	697633	NUT-M12 x 1mm	697633 NUT-M12 x 1mm	-	1	Enquire
22	703130	Washer Shake Proof EXT M12 Chrome Free	703130 Washer Shake Proof EXT M12 Chrome Free	-	1	Enquire
23	33121341AA	BRACKET CLUTCH PIPE	33121341AA BRACKET CLUTCH PIPE	-	1	Enquire
24	33125418AA	FLEX HOSE ASY CLUTCH - GT	33125418AA FLEX HOSE ASY CLUTCH - GT GT	-	1	Enquire
24	33121338AA	ASSY FLEX HOSE CLUTCH	33121338AA ASSY FLEX HOSE CLUTCH	-	1	Enquire
25	33125421AA	C.S.C. BLEED ADAPTOR WASHER - GT	33125421AA C.S.C. BLEED ADAPTOR WASHER - GT GT	-	1	Enquire
25	1R12382661AC	HOSE ASSY CSC BLEED	1R12382661AC HOSE ASSY CSC BLEED GT	-	1	Enquire
25	33125417AA	C.S.C. BLEEDER ADAPTOR - GT	33125417AA C.S.C. BLEEDER ADAPTOR - GT GT	-	1	Enquire
25	11121567AA	ADAPTOR HYDRAULIC	11121567AA ADAPTOR HYDRAULIC	-	1	Enquire
