Manual Gearbox and Clutch of Aston Martin Aston Martin DB7 Vantage

View All

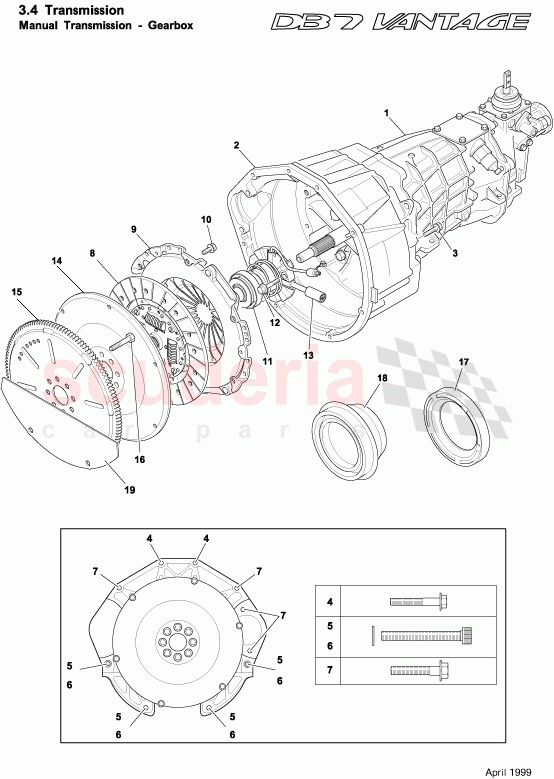

Aston Martin DB7 Vantage - Manual Gearbox and Clutch

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4186043	GEARBOX MANUAL-DRY	Enquire	To Order
	41125414AA	ASSY TRANSMISSION 6S P MANUAL - GT	Enquire	To Order
	41125383AA	SHORT THROW SHIFTER - GT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41121997AA	HOUSING-CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697778	BOLT M8 x 1.25 x 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698921	BOLT-M10x1.5x90 SKT CP HD GRD 12.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698879	WASHERS CLUTCH HSG M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697784	BOLT M10 x 1.5 x 50 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1186465	Clutch Kit DB7 V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1186465	Clutch Kit DB7 V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11122001AA	BOLT M10x1.5x21 HX HD & LOCK WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A564AB	Clutch Slave Cylinder	Enquire	To Order
	33125416AB	Spacer, C.S.C	Enquire	To Order
	33122011AB	CYLINDER CONCENTRIC SLAVE & BEARING ASSY HYDRAULIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700224	SCREW M8x30 HEX FLG8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1186465	Clutch Kit DB7 V12	Enquire	To Order
	1186465	Clutch Kit DB7 V12	Enquire	To Order
	11121567AA	ADAPTOR HYDRAULIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1186031	CLUTCH &FLYWHEEL ASY	Enquire	To Order
	286009	Flywheel, single mass	Enquire	To Order
	4G437550AA	Clutch disc assy	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1185397	FLEX PLT& R/GEAR ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order
	11122012AA	Dowel pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4185644	OIL SEAL-FRONT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4185790	OIL SEAL-TAIL SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42122008AA	PLATE REAR ENGINE COVER	Enquire	To Order
	4285906	OUTPUT SPEED SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4186043	GEARBOX MANUAL-DRY	4186043 GEARBOX MANUAL-DRY Up to (V) 300555	-	1	Enquire
1	4186043	GEARBOX MANUAL-DRY	4186043 GEARBOX MANUAL-DRY From (V) 300556	-	1	Enquire
1	41125414AA	ASSY TRANSMISSION 6S P MANUAL - GT	41125414AA ASSY TRANSMISSION 6S P MANUAL - GT GT	-	1	Enquire
1	41125383AA	SHORT THROW SHIFTER - GT	41125383AA SHORT THROW SHIFTER - GT GT	-	1	Enquire
2	41121997AA	HOUSING-CLUTCH	41121997AA HOUSING-CLUTCH	-	1	Enquire
3	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE Transmission to bell housing	-	8	Enquire
4	697778	BOLT M8 x 1.25 x 50	697778 BOLT M8 x 1.25 x 50	-	2	Enquire
5	698921	BOLT-M10x1.5x90 SKT CP HD GRD 12.9	698921 BOLT-M10x1.5x90 SKT CP HD GRD 12.9	-	4	Enquire
6	698879	WASHERS CLUTCH HSG M10	698879 WASHERS CLUTCH HSG M10	-	4	Enquire
7	697784	BOLT M10 x 1.5 x 50 FLG HD	697784 BOLT M10 x 1.5 x 50 FLG HD 2 for Starter Motor	-	4	Enquire
8	1186465	Clutch Kit DB7 V12	1186465 Clutch Kit DB7 V12	-	1	Enquire
9	1186465	Clutch Kit DB7 V12	1186465 Clutch Kit DB7 V12	-	1	Enquire
10	11122001AA	BOLT M10x1.5x21 HX HD & LOCK WASHER	11122001AA BOLT M10x1.5x21 HX HD & LOCK WASHER Pressure plate to flywheel	-	6	Enquire
11	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder GT	-	1	Enquire
11	33125416AB	Spacer, C.S.C	33125416AB Spacer, C.S.C GT	-	1	Enquire
11	33122011AB	CYLINDER CONCENTRIC SLAVE & BEARING ASSY HYDRAULIC	33122011AB CYLINDER CONCENTRIC SLAVE & BEARING ASSY HYDRAULIC	-	1	Enquire
12	700224	SCREW M8x30 HEX FLG8	700224 SCREW M8x30 HEX FLG8	-	2	Enquire
13	1186465	Clutch Kit DB7 V12	1186465 Clutch Kit DB7 V12 Up to (V) 302526	-	1	Enquire
13	1186465	Clutch Kit DB7 V12	1186465 Clutch Kit DB7 V12 From (V) 302527	-	1	Enquire
13	11121567AA	ADAPTOR HYDRAULIC	11121567AA ADAPTOR HYDRAULIC	-	1	Enquire
14	1186031	CLUTCH &FLYWHEEL ASY	1186031 CLUTCH &FLYWHEEL ASY GT	-	1	Enquire
14	286009	Flywheel, single mass	286009 Flywheel, single mass GT	-	1	Enquire
14	4G437550AA	Clutch disc assy	4G437550AA Clutch disc assy GT	-	1	Enquire
14	1186465	Clutch Kit DB7 V12	1186465 Clutch Kit DB7 V12	-	1	Enquire
15	1185397	FLEX PLT& R/GEAR ASY	1185397 FLEX PLT& R/GEAR ASY	-	1	Enquire
16	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain Flywheel to crankshaft	-	8	Enquire
16	11122012AA	Dowel pin	11122012AA Dowel pin	-	2	Enquire
17	4185644	OIL SEAL-FRONT SHAFT	4185644 OIL SEAL-FRONT SHAFT	-	1	Enquire
18	4185790	OIL SEAL-TAIL SHAFT	4185790 OIL SEAL-TAIL SHAFT	-	1	Enquire
19	42122008AA	PLATE REAR ENGINE COVER	42122008AA PLATE REAR ENGINE COVER	-	1	Enquire
19	4285906	OUTPUT SPEED SENSOR	4285906 OUTPUT SPEED SENSOR	-	1	Enquire
