Automatic - Gear Selector Assembly of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Automatic - Gear Selector Assembly

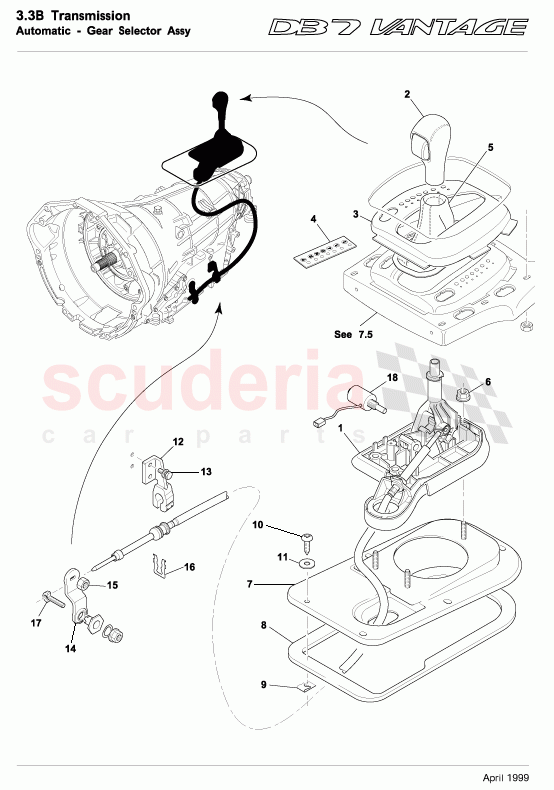

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	42123382AA	GEARSHIFT SELECTOR AUTO ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80122842AA	PRNDL SURROUND RHD	Enquire	To Order
	83124104AB	PRNDL SURROUND RHD (SOFT FEEL)	Enquire	To Order
	42120802AAW	AUTO GEAR KNOB	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80122843AA	PRNDL SURROUND LHD	Enquire	To Order
	83124103AB	PRNDL SURROUND LHD (SOFT FEEL)	Enquire	To Order
	42121992AA	PRNDL ILLUMINATOR STRIP RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42121993AA	PRNDL ILLUMINATOR STRIP LHD	Enquire	To Order
	4286023	PRNDL DISPLAY UNIT	Enquire	To Order
	80121194AB	SUBSTRATE - CONSOLE VENEER (AUTO)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80121358AAW	GAITER ASSY - AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697781	NUT M6 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80121694AA	ASSY COVER AUTO GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42121113AA	SEAL-GEARBOX COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697572	SCREW No12 x 5/8in PAN HEAD `B' S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697439	WASHER M5 LARGE OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42123838AA	BRACKET-CABLE ABUTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699140	BOLT M6 x 40 HEX FLG GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42120803AA	SELECTOR LEVER - AUTO TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42120923AA	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42120805AA	CABLE SECURING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42120807AA	CABLE-CLAMPING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42123382AA	GEARSHIFT SELECTOR AUTO ASSY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	42123382AA	GEARSHIFT SELECTOR AUTO ASSY	42123382AA GEARSHIFT SELECTOR AUTO ASSY	-	1	Enquire
2	80122842AA	PRNDL SURROUND RHD	80122842AA PRNDL SURROUND RHD RHD Up to (V) 302252	-	1	Enquire
2	83124104AB	PRNDL SURROUND RHD (SOFT FEEL)	83124104AB PRNDL SURROUND RHD (SOFT FEEL) RHD From (V) 302253	-	1	Enquire
2	42120802AAW	AUTO GEAR KNOB	42120802AAW AUTO GEAR KNOB From (V) 300556	-	1	Enquire
2	42120802AA/FIB	Gear knob, auto/touchtronic - carbon fibre	42120802AA/FIB Gear knob, auto/touchtronic - carbon fibre Optional	-	1	Enquire
2	42120802AA/ALU	Gear knob, auto/touchtronic - aluminium	42120802AA/ALU Gear knob, auto/touchtronic - aluminium Optional	-	1	Enquire
2	42120802AA/WAL	Gear knob, auto/touchtronic - walnut	42120802AA/WAL Gear knob, auto/touchtronic - walnut Optional	-	1	Enquire
2	42120802AA/MAP	Gear knob, auto/touchtronic - maple	42120802AA/MAP Gear knob, auto/touchtronic - maple Optional	-	1	Enquire
2	42120802AA/ELM	Gear knob, auto/touchtronic - elm	42120802AA/ELM Gear knob, auto/touchtronic - elm Optional	-	1	Enquire
2	42120802AA/OAK	Gear knob, auto/touchtronic - oak	42120802AA/OAK Gear knob, auto/touchtronic - oak Optional	-	1	Enquire
3	80122843AA	PRNDL SURROUND LHD	80122843AA PRNDL SURROUND LHD LHD Up to (V) 302252	-	1	Enquire
3	83124103AB	PRNDL SURROUND LHD (SOFT FEEL)	83124103AB PRNDL SURROUND LHD (SOFT FEEL) LHD From (V) 302253	-	1	Enquire
3	42121992AA	PRNDL ILLUMINATOR STRIP RHD	42121992AA PRNDL ILLUMINATOR STRIP RHD RHD	-	1	Enquire
4	42121993AA	PRNDL ILLUMINATOR STRIP LHD	42121993AA PRNDL ILLUMINATOR STRIP LHD LHD	-	1	Enquire
4	4286023	PRNDL DISPLAY UNIT	4286023 PRNDL DISPLAY UNIT	-	1	Enquire
4	80121194AB	SUBSTRATE - CONSOLE VENEER (AUTO)	80121194AB SUBSTRATE - CONSOLE VENEER (AUTO)	-	1	Enquire
5	80121358AAW	GAITER ASSY - AUTO	80121358AAW GAITER ASSY - AUTO	-	1	Enquire
6	697781	NUT M6 FLG	697781 NUT M6 FLG	-	3	Enquire
7	80121694AA	ASSY COVER AUTO GEARBOX	80121694AA ASSY COVER AUTO GEARBOX	-	1	Enquire
8	42121113AA	SEAL-GEARBOX COVER	42121113AA SEAL-GEARBOX COVER	-	1	Enquire
9	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	88123445AA NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	-	6	Enquire
10	697572	SCREW No12 x 5/8in PAN HEAD `B' S.T.	697572 SCREW No12 x 5/8in PAN HEAD `B' S.T.	-	6	Enquire
11	697439	WASHER M5 LARGE OD	697439 WASHER M5 LARGE OD	-	6	Enquire
12	42123838AA	BRACKET-CABLE ABUTMENT	42123838AA BRACKET-CABLE ABUTMENT	-	1	Enquire
13	699140	BOLT M6 x 40 HEX FLG GRD 8.8	699140 BOLT M6 x 40 HEX FLG GRD 8.8	-	2	Enquire
14	42120803AA	SELECTOR LEVER - AUTO TRANS	42120803AA SELECTOR LEVER - AUTO TRANS	-	1	Enquire
15	42120923AA	NUT	42120923AA NUT	-	1	Enquire
16	42120805AA	CABLE SECURING PLATE	42120805AA CABLE SECURING PLATE	-	1	Enquire
17	42120807AA	CABLE-CLAMPING KIT	42120807AA CABLE-CLAMPING KIT	-	1	Enquire
18	42123382AA	GEARSHIFT SELECTOR AUTO ASSY	42123382AA GEARSHIFT SELECTOR AUTO ASSY	-	1	Enquire
