Manual Transmission - Gearbox Cooling of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Manual Transmission - Gearbox Cooling

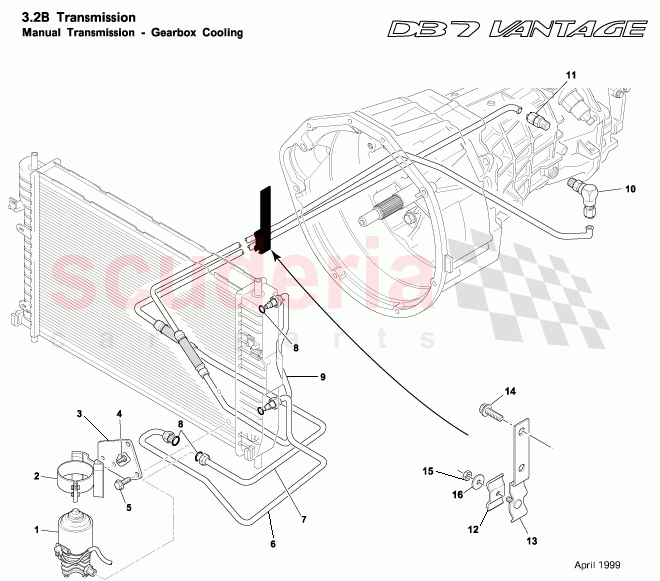

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	32122742AA	OIL PUMP MANUAL TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122743AA	INSULATOR - OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122646AA	MTG BRKT ASSY OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700332	Nut, M6, paint clearing	Enquire	To Order
	695565	Screw, flg, M6 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697285	NUT M10 FLANGED	Enquire	To Order
	697822	Screw, M 10 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122741AB	PIPE ASSY PUMP - RETURN MAN TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122740AC	PIPE ASSY PUMP FEED MAN TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699328	`O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122719AC	PIPE ASSY COOLER RETURN MAN TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4185841	GEARBOX HOSE ELBOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4185839	G/BOX HOSE CONNECTOR	Enquire	To Order
	4185840	G/BOX HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32121506AA	CLAMP PLATE - TRANS COOLER PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32121500AB	ASSY SUPPORT BRKT - TRANS COOLER PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700332	Nut, M6, paint clearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697123	WASHER 1/4 PLAIN FORM A	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	32122742AA	OIL PUMP MANUAL TRANSMISSION	32122742AA OIL PUMP MANUAL TRANSMISSION	-	1	Enquire
2	32122743AA	INSULATOR - OIL PUMP	32122743AA INSULATOR - OIL PUMP	-	1	Enquire
3	32122646AA	MTG BRKT ASSY OIL PUMP	32122646AA MTG BRKT ASSY OIL PUMP	-	1	Enquire
4	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	2	Enquire
4	695565	Screw, flg, M6 x 25	695565 Screw, flg, M6 x 25	-	2	Enquire
5	697285	NUT M10 FLANGED	697285 NUT M10 FLANGED	-	2	Enquire
5	697822	Screw, M 10 x 35	697822 Screw, M 10 x 35	-	4	Enquire
6	32122741AB	PIPE ASSY PUMP - RETURN MAN TRANS	32122741AB PIPE ASSY PUMP - RETURN MAN TRANS	-	1	Enquire
7	32122740AC	PIPE ASSY PUMP FEED MAN TRANS	32122740AC PIPE ASSY PUMP FEED MAN TRANS	-	1	Enquire
8	699328	`O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	699328 `O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	-	4	Enquire
9	32122719AC	PIPE ASSY COOLER RETURN MAN TRANS	32122719AC PIPE ASSY COOLER RETURN MAN TRANS	-	1	Enquire
10	4185841	GEARBOX HOSE ELBOW	4185841 GEARBOX HOSE ELBOW	-	1	Enquire
11	4185839	G/BOX HOSE CONNECTOR	4185839 G/BOX HOSE CONNECTOR	-	2	Enquire
11	4185840	G/BOX HOSE CONNECTOR	4185840 G/BOX HOSE CONNECTOR	-	2	Enquire
12	32121506AA	CLAMP PLATE - TRANS COOLER PIPES	32121506AA CLAMP PLATE - TRANS COOLER PIPES	-	2	Enquire
13	32121500AB	ASSY SUPPORT BRKT - TRANS COOLER PIPES	32121500AB ASSY SUPPORT BRKT - TRANS COOLER PIPES	-	2	Enquire
14	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8	-	2	Enquire
15	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	2	Enquire
16	697123	WASHER 1/4 PLAIN FORM A	697123 WASHER 1/4 PLAIN FORM A	-	2	Enquire
