Automatic Transmission - Gearbox Cooling of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Automatic Transmission - Gearbox Cooling

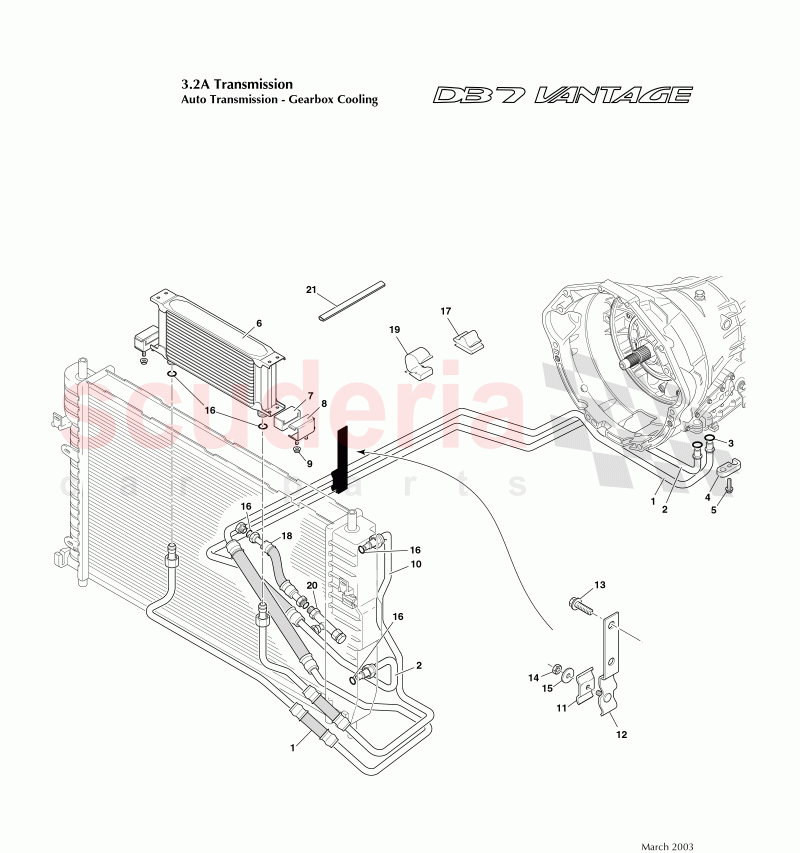

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	32124654AA	CONNECTOR COOLER PIPE RETURN	Enquire	To Order
	32120301AF	ASSY PIPE-COOLER RETURN-AUTO TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32124653AA	CONNECTOR COOLER PIPE FEED	Enquire	To Order
	32124670AA	ADAPTER CONNECTOR PIPE (1/2 BSP)	Enquire	To Order
	32120300AG	PIPE ASSY COOLER FEED AUTO TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4286036	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42120687AC	Clamping plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32124652AA	AUTO TRANSMISSION COOLER MIDDLE EAST	Enquire	To Order
	7782546	SEAL-NUMBER PLATE HOUSING-790mm lg	Enquire	To Order
	699084	SCREW M6 x 18 FLG HD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4481589	MOUNTING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4481588	MTG BRKT-OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697121	NUT/WASHER ASSY-M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32121641AC	PIPE ASSY COOLER FEED AUTO TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32121506AA	CLAMP PLATE - TRANS COOLER PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32121500AB	ASSY SUPPORT BRKT - TRANS COOLER PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700332	Nut, M6, paint clearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697123	WASHER 1/4 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699328	`O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122811AA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122836AC	ASSY JUMP HOSE -AUTO TRANS COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122811AA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122324AC	ASSY THERMOSTAT - AUTO TRANS COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32124726AA	RETAINING PLATE OIL COOLER HOSE	Enquire	To Order
	3781933	STRIP EDGE	Enquire	To Order
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	32124654AA	CONNECTOR COOLER PIPE RETURN	32124654AA CONNECTOR COOLER PIPE RETURN Middle East cars	-	1	Enquire
1	32120301AF	ASSY PIPE-COOLER RETURN-AUTO TRANS	32120301AF ASSY PIPE-COOLER RETURN-AUTO TRANS	-	1	Enquire
2	32124653AA	CONNECTOR COOLER PIPE FEED	32124653AA CONNECTOR COOLER PIPE FEED Middle East cars	-	1	Enquire
2	32124670AA	ADAPTER CONNECTOR PIPE (1/2 BSP)	32124670AA ADAPTER CONNECTOR PIPE (1/2 BSP) Middle East cars	-	2	Enquire
2	32120300AG	PIPE ASSY COOLER FEED AUTO TRANS	32120300AG PIPE ASSY COOLER FEED AUTO TRANS	-	1	Enquire
3	4286036	O RING	4286036 O RING	-	4	Enquire
4	42120687AC	Clamping plate	42120687AC Clamping plate	-	2	Enquire
5	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
6	32124652AA	AUTO TRANSMISSION COOLER MIDDLE EAST	32124652AA AUTO TRANSMISSION COOLER MIDDLE EAST Middle East cars	-	1	Enquire
6	7782546	SEAL-NUMBER PLATE HOUSING-790mm lg	7782546 SEAL-NUMBER PLATE HOUSING-790mm lg Middle East cars	-	1	Enquire
6	699084	SCREW M6 x 18 FLG HD	699084 SCREW M6 x 18 FLG HD Middle East cars	-	2	Enquire
6	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm Middle East cars	-	4	Enquire
6	32121643AB	OIL COOLER AUTO TRAN BLACK	32121643AB OIL COOLER AUTO TRAN BLACK	-	1	Enquire
7	4481589	MOUNTING RUBBER	4481589 MOUNTING RUBBER	-	2	Enquire
8	4481588	MTG BRKT-OIL COOLER	4481588 MTG BRKT-OIL COOLER	-	2	Enquire
9	697121	NUT/WASHER ASSY-M6	697121 NUT/WASHER ASSY-M6	-	4	Enquire
10	32121641AC	PIPE ASSY COOLER FEED AUTO TRANS	32121641AC PIPE ASSY COOLER FEED AUTO TRANS	-	1	Enquire
11	32121506AA	CLAMP PLATE - TRANS COOLER PIPES	32121506AA CLAMP PLATE - TRANS COOLER PIPES	-	3	Enquire
12	32121500AB	ASSY SUPPORT BRKT - TRANS COOLER PIPES	32121500AB ASSY SUPPORT BRKT - TRANS COOLER PIPES	-	3	Enquire
13	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8	-	3	Enquire
14	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	3	Enquire
15	697123	WASHER 1/4 PLAIN FORM A	697123 WASHER 1/4 PLAIN FORM A	-	3	Enquire
16	699328	`O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	699328 `O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING	-	6	Enquire
17	37122811AA	CLIP	37122811AA CLIP	-	2	Enquire
18	32122836AC	ASSY JUMP HOSE -AUTO TRANS COOLING	32122836AC ASSY JUMP HOSE -AUTO TRANS COOLING	-	1	Enquire
19	37122811AA	CLIP	37122811AA CLIP	-	1	Enquire
20	32122324AC	ASSY THERMOSTAT - AUTO TRANS COOLING	32122324AC ASSY THERMOSTAT - AUTO TRANS COOLING	-	1	Enquire
21	32124726AA	RETAINING PLATE OIL COOLER HOSE	32124726AA RETAINING PLATE OIL COOLER HOSE	-	1	Enquire
21	3781933	STRIP EDGE	3781933 STRIP EDGE	-	1	Enquire
21	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
