Automatic Transmission and Torque Converter of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Automatic Transmission and Torque Converter

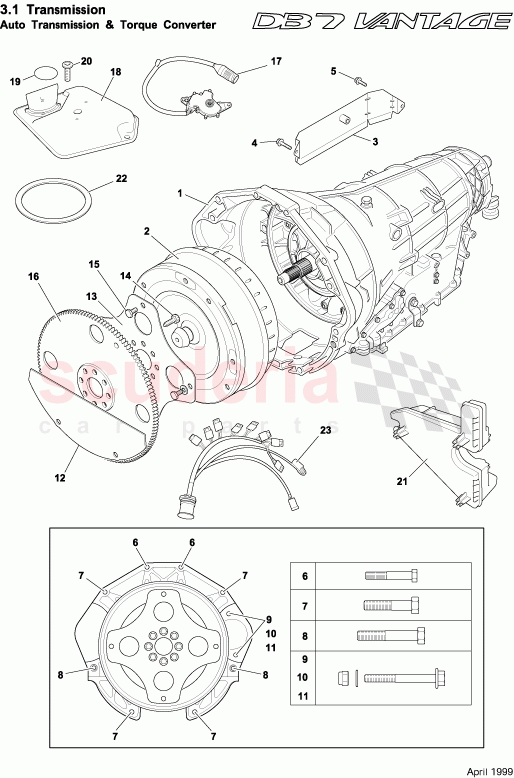

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91403	AUTO GEARBOX	Enquire	To Order
	4285611	SEAL-DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285832	TORQUE CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86120478AB	HEAT SHIELD ASSY AUTO TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695437	BOLT M6 x 35 HEX FLG GRD 8 8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695567	SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697778	BOLT M8 x 1.25 x 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697779	BOLT M10x 1.5 x 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697780	BOLT M10 x 1.5 x 60	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695455	BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692034	NUT M10 HEX SLK GRD 8 ZINC PLATE NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692058	WASHER M10 PLAIN MED MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42122008AA	PLATE REAR ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42121852AA	FLEX PLATE - AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698878	BOLT m10x1.5x17.5 FLEX PLATE TO CONVTR TORQUE 46NM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42121551AB	RING GEAR STARTER AUTO TRANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285561	AUTO TRANSMISSION POSITION SWITCH	Enquire	To Order
	4285715	Gasket-G/Box Sump	Enquire	To Order
	4285713	AUTO G/BOX SUMP ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285710	Sump Filter C/with O Ring & 2 Screws	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285711	O-RING SUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285712	Screw	Enquire	To Order
	4285716	DRAIN PLUG-SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285744	SEAL KIT-TAIL SHAFT AUTO GEARBOX	Enquire	To Order
	4285827	CLAMPING SLEEVE	Enquire	To Order
	4285826	SELECTOR SHAFT	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4285906	OUTPUT SPEED SENSOR	Enquire	To Order
	4285611	SEAL-DRAIN PLUG	Enquire	To Order
	4285834	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4285836	PRESSURE REGULATOR	Enquire	To Order
	4286033	SEAL-INPUT SHAFT/PMP	Enquire	To Order
	4285993	HARNESS-VALVE BLOCK	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91403	AUTO GEARBOX	91403 AUTO GEARBOX	-	1	Enquire
1	4285611	SEAL-DRAIN PLUG	4285611 SEAL-DRAIN PLUG	-	1	Enquire
2	4285832	TORQUE CONVERTER	4285832 TORQUE CONVERTER	-	1	Enquire
3	86120478AB	HEAT SHIELD ASSY AUTO TRANSMISSION	86120478AB HEAT SHIELD ASSY AUTO TRANSMISSION	-	1	Enquire
4	695437	BOLT M6 x 35 HEX FLG GRD 8 8 ZINC PLATE	695437 BOLT M6 x 35 HEX FLG GRD 8 8 ZINC PLATE	-	1	Enquire
5	695567	SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	695567 SCREW M8 x20 HEX FLG GRD 8 8 ZINC PLATE	-	1	Enquire
6	697778	BOLT M8 x 1.25 x 50	697778 BOLT M8 x 1.25 x 50	-	2	Enquire
7	697779	BOLT M10x 1.5 x 50	697779 BOLT M10x 1.5 x 50 Auto trans to engine	-	4	Enquire
8	697780	BOLT M10 x 1.5 x 60	697780 BOLT M10 x 1.5 x 60 Auto trans to engine	-	2	Enquire
9	695455	BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8	695455 BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8 Auto trans to engine	-	2	Enquire
10	692034	NUT M10 HEX SLK GRD 8 ZINC PLATE NYLOC	692034 NUT M10 HEX SLK GRD 8 ZINC PLATE NYLOC Auto trans to engine	-	2	Enquire
11	692058	WASHER M10 PLAIN MED MILD STEEL ZINC PLT	692058 WASHER M10 PLAIN MED MILD STEEL ZINC PLT Auto trans to engine	-	2	Enquire
12	42122008AA	PLATE REAR ENGINE COVER	42122008AA PLATE REAR ENGINE COVER	-	1	Enquire
13	42121852AA	FLEX PLATE - AUTO	42121852AA FLEX PLATE - AUTO	-	1	Enquire
14	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain Flex plate to crankshaft	-	8	Enquire
15	698878	BOLT m10x1.5x17.5 FLEX PLATE TO CONVTR TORQUE 46NM	698878 BOLT m10x1.5x17.5 FLEX PLATE TO CONVTR TORQUE 46NM Flex plate to torque converter	-	4	Enquire
16	42121551AB	RING GEAR STARTER AUTO TRANS	42121551AB RING GEAR STARTER AUTO TRANS	-	1	Enquire
17	4285561	AUTO TRANSMISSION POSITION SWITCH	4285561 AUTO TRANSMISSION POSITION SWITCH	-	1	Enquire
17	4285715	Gasket-G/Box Sump	4285715 Gasket-G/Box Sump	-	1	Enquire
17	4285713	AUTO G/BOX SUMP ASSY	4285713 AUTO G/BOX SUMP ASSY	-	1	Enquire
18	4285710	Sump Filter C/with O Ring & 2 Screws	4285710 Sump Filter C/with O Ring & 2 Screws	-	1	Enquire
19	4285711	O-RING SUMP FILTER	4285711 O-RING SUMP FILTER Oil filter	-	1	Enquire
20	4285712	Screw	4285712 Screw Oil filter	-	2	Enquire
20	4285716	DRAIN PLUG-SUMP	4285716 DRAIN PLUG-SUMP	-	1	Enquire
21	4285744	SEAL KIT-TAIL SHAFT AUTO GEARBOX	4285744 SEAL KIT-TAIL SHAFT AUTO GEARBOX	-	1	Enquire
21	4285827	CLAMPING SLEEVE	4285827 CLAMPING SLEEVE	-	1	Enquire
21	4285826	SELECTOR SHAFT	4285826 SELECTOR SHAFT	-	1	Enquire
21	4285829	BREATHER COVER	4285829 BREATHER COVER	-	1	Enquire
21	4285828	BREATHER TUBE	4285828 BREATHER TUBE	-	1	Enquire
21	4285831	PLUG SEAL RING	4285831 PLUG SEAL RING	-	1	Enquire
21	4285830	PLUG-M24	4285830 PLUG-M24	-	1	Enquire
21	4285717	OIL TANK-G/BOX SUMP	4285717 OIL TANK-G/BOX SUMP	-	1	Enquire
21	4285825	SHAFT SEAL	4285825 SHAFT SEAL	-	2	Enquire
22	4285906	OUTPUT SPEED SENSOR	4285906 OUTPUT SPEED SENSOR	-	1	Enquire
22	4285611	SEAL-DRAIN PLUG	4285611 SEAL-DRAIN PLUG	-	1	Enquire
22	4285834	O RING	4285834 O RING	-	4	Enquire
23	4285836	PRESSURE REGULATOR	4285836 PRESSURE REGULATOR	-	1	Enquire
23	4286033	SEAL-INPUT SHAFT/PMP	4286033 SEAL-INPUT SHAFT/PMP	-	1	Enquire
23	4285993	HARNESS-VALVE BLOCK	4285993 HARNESS-VALVE BLOCK	-	1	Enquire
23	4285838	Control unit	4285838 Control unit	-	1	Enquire
23	4285835	SOLENOID VALVE	4285835 SOLENOID VALVE	-	3	Enquire
23	4285837	PRESSURE REGULATOR	4285837 PRESSURE REGULATOR	-	4	Enquire
