Cooling Pack Module (Page 1)

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Cooling Pack Module (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1640040220 Radiator Assy Enquire To Order
Photo Part No Description Price (each) Stock
1656140020 Seal, radiator to Support, No1 Enquire To Order
Photo Part No Description Price (each) Stock
1656140040 Seal, radiator to Support, No1 Enquire To Order
Photo Part No Description Price (each) Stock
1656140030 Seal, radiator to Support, No1 Enquire To Order
Photo Part No Description Price (each) Stock
1656140050 Seal, radiator to Support, No1 Enquire To Order
Photo Part No Description Price (each) Stock
1649221050 Packing, Drain Cock, Radiator Enquire To Order
Photo Part No Description Price (each) Stock
1641721280 Plug, Radiator Drain Cock Enquire To Order
Photo Part No Description Price (each) Stock
165230Q020 Cushion, Radiator Support Enquire To Order
Photo Part No Description Price (each) Stock
90480W0005 Grommet Enquire To Order
Photo Part No Description Price (each) Stock
1671140040 Shroud, Fan Enquire To Order
Photo Part No Description Price (each) Stock
1647123030 Cap Sub-Assy, Reserve Tank Enquire To Order
Photo Part No Description Price (each) Stock
1647240020 Hose, Breather Enquire To Order
Photo Part No Description Price (each) Stock
9046711085 Clamp or Clip, Reserve Tank Hose Enquire To Order
Photo Part No Description Price (each) Stock
1683240010 Seal, Fan Shroud Enquire To Order
Photo Part No Description Price (each) Stock
1770547110 Cap Sub-Assy, Air Cleaner Enquire To Order
Photo Part No Description Price (each) Stock
1780140040 Element Sub-Assy, Air Cleaner Filter Enquire To Order
Photo Part No Description Price (each) Stock
1636340010 Motor, Cooling Fan Enquire To Order
Photo Part No Description Price (each) Stock
1636140080 Fan Enquire To Order
Photo Part No Description Price (each) Stock
9009905164 Nut Enquire To Order
Photo Part No Description Price (each) Stock
9009904119 Bolt Enquire To Order
Photo Part No Description Price (each) Stock
1637447010 Insulator, Cooling Fan Motor Enquire To Order
Photo Part No Description Price (each) Stock
1657247050 Hose, Radiator, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
9613643901 Clamp or Clip, Hose, Radiator Outlet Enquire To Order
Photo Part No Description Price (each) Stock
1657347030 Hose, Radiator, No.3 Enquire To Order
Photo Part No Description Price (each) Stock
9613643901 Clamp or Clip, Hose, Radiator Outlet Enquire To Order
Photo Part No Description Price (each) Stock
1658140050 Clamp, Hose Enquire To Order
Photo Part No Description Price (each) Stock
1652040010 Filler Assy, Water Enquire To Order
Photo Part No Description Price (each) Stock
1640131480 Cap Sub-Assy, Water Filler Enquire To Order
Photo Part No Description Price (each) Stock
9167380616 Bolt, Flange, W/Washer Enquire To Order
Photo Part No Description Price (each) Stock
1657147060 Hose, Radiator no.1 Enquire To Order
Photo Part No Description Price (each) Stock
9613643901 Clamp or Clip, Hose, Radiator Outlet Enquire To Order
Photo Part No Description Price (each) Stock
8872320081 Lable, Caution Enquire To Order
Photo Part No Description Price (each) Stock
9046611003 Clip, Hose, VM02 Enquire To Order
View All

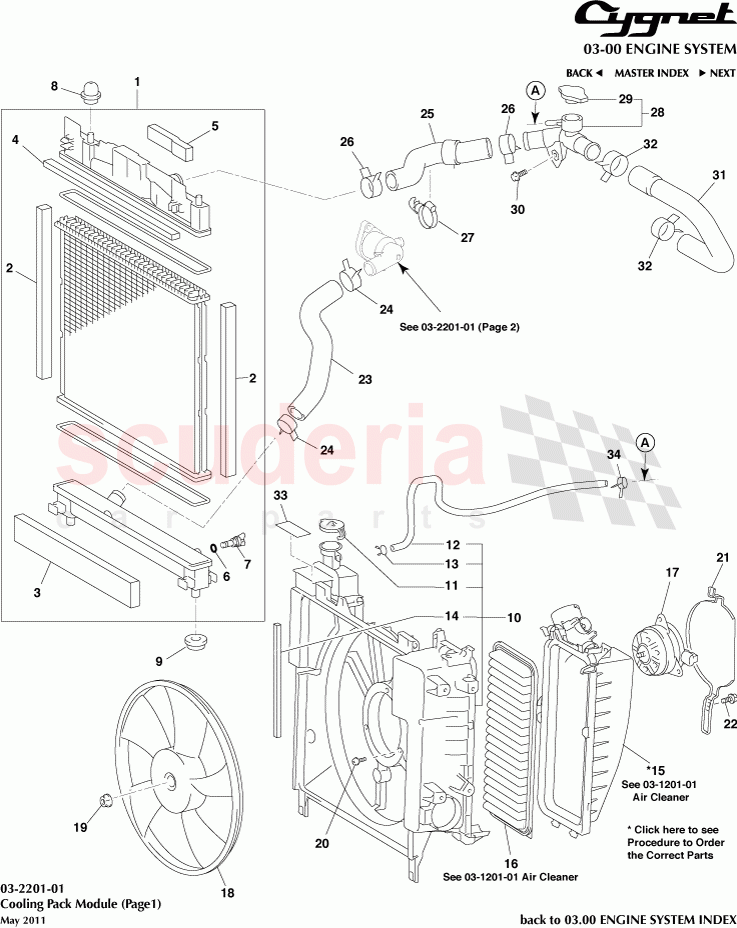

Cooling Pack Module (Page 1) of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 1770547111
Cap Sub-Assy, Air Cleaner
*from 04/2011 		- 1 Enquire
1 1640040220
Radiator Assy 		- 1 Enquire
2 1656140020
Seal, radiator to Support, No1 		- 2 Enquire
3 1656140040
Seal, radiator to Support, No1 		- 1 Enquire
4 1656140030
Seal, radiator to Support, No1 		- 1 Enquire
5 1656140050
Seal, radiator to Support, No1 		- 1 Enquire
6 1649221050
Packing, Drain Cock, Radiator 		- 1 Enquire
7 1641721280
Plug, Radiator Drain Cock 		- 1 Enquire
8 165230Q020
Cushion, Radiator Support 		- 2 Enquire
9 90480W0005
Grommet 		- 2 Enquire
10 1671140040
Shroud, Fan 		- 1 Enquire
11 1647123030
Cap Sub-Assy, Reserve Tank 		- 1 Enquire
12 1647240020
Hose, Breather 		- 1 Enquire
13 9046711085
Clamp or Clip, Reserve Tank Hose 		- 1 Enquire
14 1683240010
Seal, Fan Shroud 		- 1 Enquire
15 1770547110
Cap Sub-Assy, Air Cleaner
*05/2010 to 03/2011 		- 1 Enquire
16 1780140040
Element Sub-Assy, Air Cleaner Filter 		- 1 Enquire
17 1636340010
Motor, Cooling Fan 		- 1 Enquire
18 1636140080
Fan 		- 1 Enquire
19 9009905164
Nut 		- 1 Enquire
20 9009904119
Bolt 		- 3 Enquire
21 1637447010
Insulator, Cooling Fan Motor 		- 1 Enquire
22 9011906817
Bolt, Insulator 		- 1 Enquire
23 1657247050
Hose, Radiator, No.2 		- 1 Enquire
24 9613643901
Clamp or Clip, Hose, Radiator Outlet 		- 2 Enquire
25 1657347030
Hose, Radiator, No.3 		- 1 Enquire
26 9613643901
Clamp or Clip, Hose, Radiator Outlet 		- 2 Enquire
27 1658140050
Clamp, Hose 		- 1 Enquire
28 1652040010
Filler Assy, Water 		- 1 Enquire
29 1640131480
Cap Sub-Assy, Water Filler 		- 1 Enquire
30 9167380616
Bolt, Flange, W/Washer 		- 1 Enquire
31 1657147060
Hose, Radiator no.1 		- 1 Enquire
32 9613643901
Clamp or Clip, Hose, Radiator Outlet 		- 2 Enquire
33 8872320081
Lable, Caution 		- 1 Enquire
34 9046611003
Clip, Hose, VM02 		- 1 Enquire
