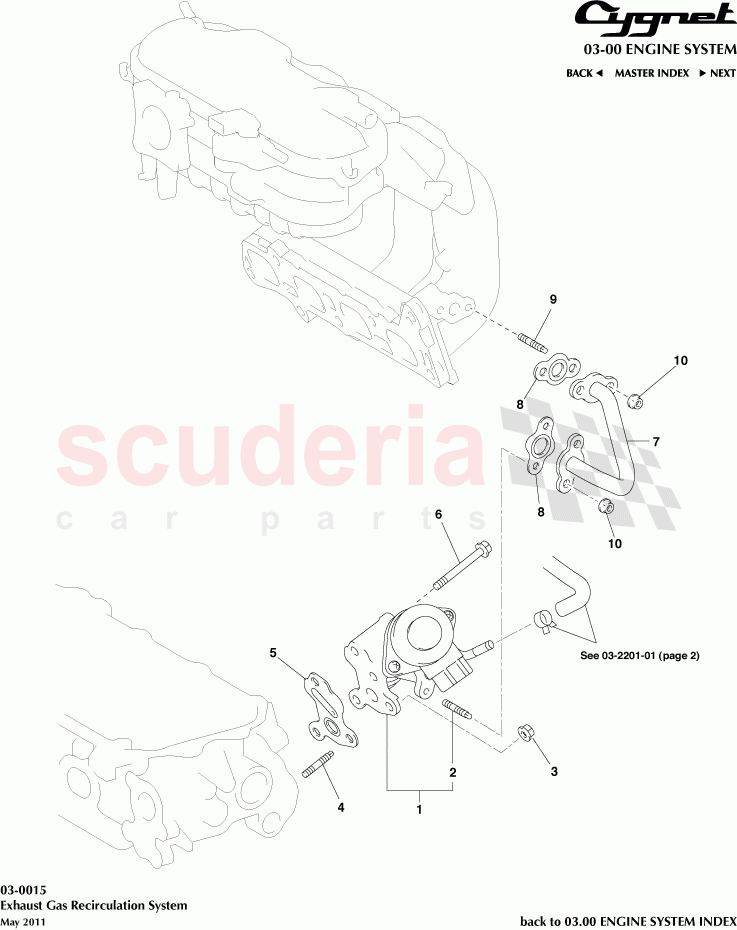

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2562047020	Valve Assy, EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9012606029	Stud, Hexalobul NF07	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9418800841	Nut, Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9012608063	Bolt, Stud, Exhaust Manifold to Cylinder Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2563347010	Gasket, EGR Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91551F0855	Bolt, Flange FL09	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2561147020	Pipe, EGR, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2563447010	Gasket, EGR Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9012606029	Stud, Hexalobul NF07	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9415180600	Nut	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	2562047020	Valve Assy, EGR	2562047020 Valve Assy, EGR	-	1	Enquire
2	9012606029	Stud, Hexalobul NF07	9012606029 Stud, Hexalobul NF07	-	2	Enquire
3	9418800841	Nut, Lock	9418800841 Nut, Lock	-	2	Enquire
4	9012608063	Bolt, Stud, Exhaust Manifold to Cylinder Head	9012608063 Bolt, Stud, Exhaust Manifold to Cylinder Head	-	2	Enquire
5	2563347010	Gasket, EGR Valve	2563347010 Gasket, EGR Valve	-	1	Enquire
6	91551F0855	Bolt, Flange FL09	91551F0855 Bolt, Flange FL09	-	1	Enquire
7	2561147020	Pipe, EGR, No.1	2561147020 Pipe, EGR, No.1	-	1	Enquire
8	2563447010	Gasket, EGR Pipe	2563447010 Gasket, EGR Pipe	-	2	Enquire
9	9012606029	Stud, Hexalobul NF07	9012606029 Stud, Hexalobul NF07	-	2	Enquire
10	9415180600	Nut	9415180600 Nut	-	4	Enquire
