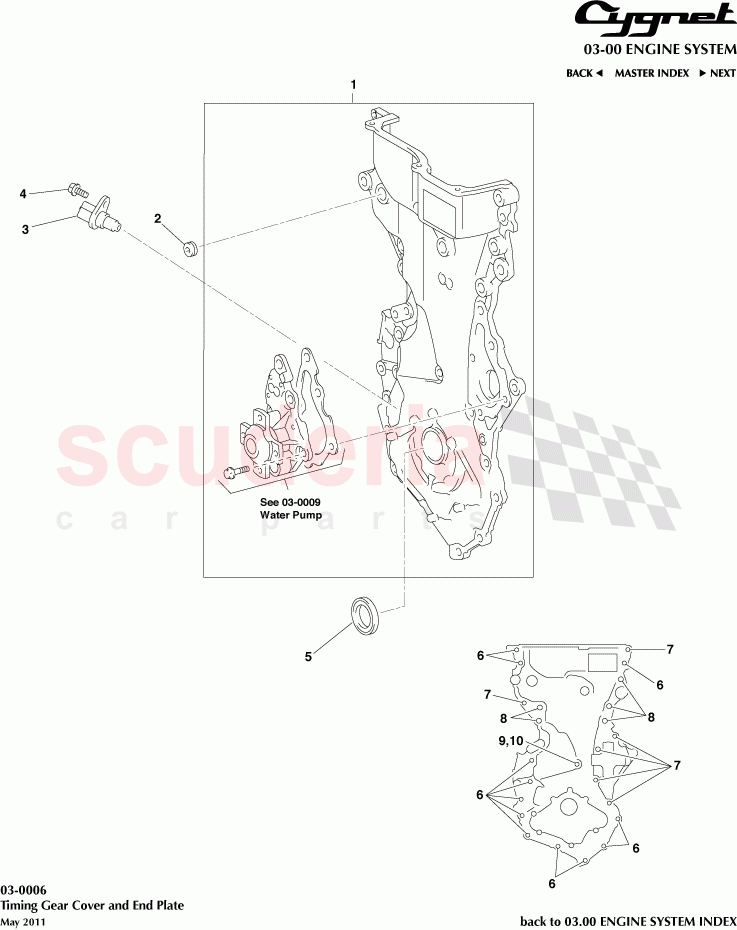

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1131047022	Cover Sub-Assy, Timing Chain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9034453006	Plug, Taper SCR SV91	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	9091905073	Sensor, Crank Position	$133.81	To Order

Photo	Part No	Description	Price (each)	Stock
	90119W0030	Bolt, with Washer	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	9031125031	Seal, Oil, Timing Chain Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91551F0825	Bolt, Flange	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180840	Bolt, Flange, A805	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	9155281040	Bolt, Flange, V106	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180635	Bolt, Head to Camshaft Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9021005008	Washer, Seal	$1.71	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1131047022	Cover Sub-Assy, Timing Chain	1131047022 Cover Sub-Assy, Timing Chain	-	1	Enquire
2	9034453006	Plug, Taper SCR SV91	9034453006 Plug, Taper SCR SV91	$5.31	1
3	9091905073	Sensor, Crank Position	9091905073 Sensor, Crank Position	$133.81	1
4	90119W0030	Bolt, with Washer	90119W0030 Bolt, with Washer	$1.27	1
5	9031125031	Seal, Oil, Timing Chain Cover	9031125031 Seal, Oil, Timing Chain Cover	-	1	Enquire
6	91551F0825	Bolt, Flange	91551F0825 Bolt, Flange	$1.68	12
7	9155180840	Bolt, Flange, A805	9155180840 Bolt, Flange, A805	$2.53	6
8	9155281040	Bolt, Flange, V106	9155281040 Bolt, Flange, V106	$2.53	5
9	9155180635	Bolt, Head to Camshaft Bearing Cap	9155180635 Bolt, Head to Camshaft Bearing Cap	-	1	Enquire
10	9021005008	Washer, Seal	9021005008 Washer, Seal	$1.71	1
