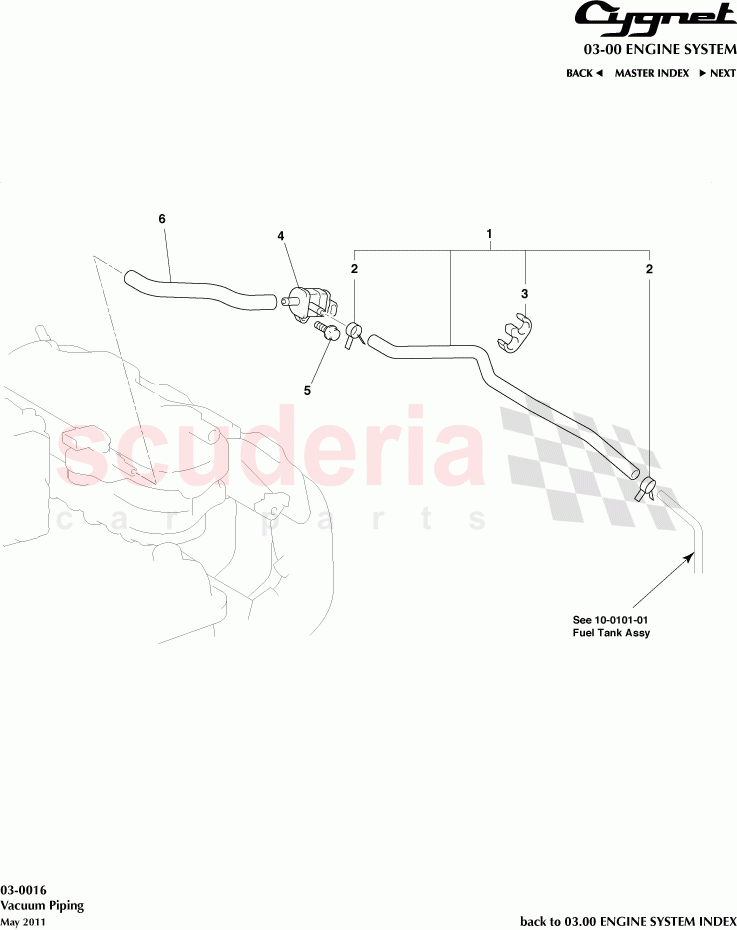

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	2382647040	Hose, Fuel Vapour Feed, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046611003	Clip, Hose, VM02	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7728150040	Clamp, Fuel Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9091012280	Valve, Vacuum Switching, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180620	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2382747040	Hose, Fuel Vapor Feed, No.2	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	2382647040	Hose, Fuel Vapour Feed, No.1	2382647040 Hose, Fuel Vapour Feed, No.1	-	1	Enquire
2	9046611003	Clip, Hose, VM02	9046611003 Clip, Hose, VM02	-	2	Enquire
3	7728150040	Clamp, Fuel Hose	7728150040 Clamp, Fuel Hose	-	1	Enquire
4	9091012280	Valve, Vacuum Switching, No.1	9091012280 Valve, Vacuum Switching, No.1	-	1	Enquire
5	9167180620	Bolt, Flange	9167180620 Bolt, Flange	-	1	Enquire
6	2382747040	Hose, Fuel Vapor Feed, No.2	2382747040 Hose, Fuel Vapor Feed, No.2	-	1	Enquire
