Camshafts and Valves of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Camshafts and Valves

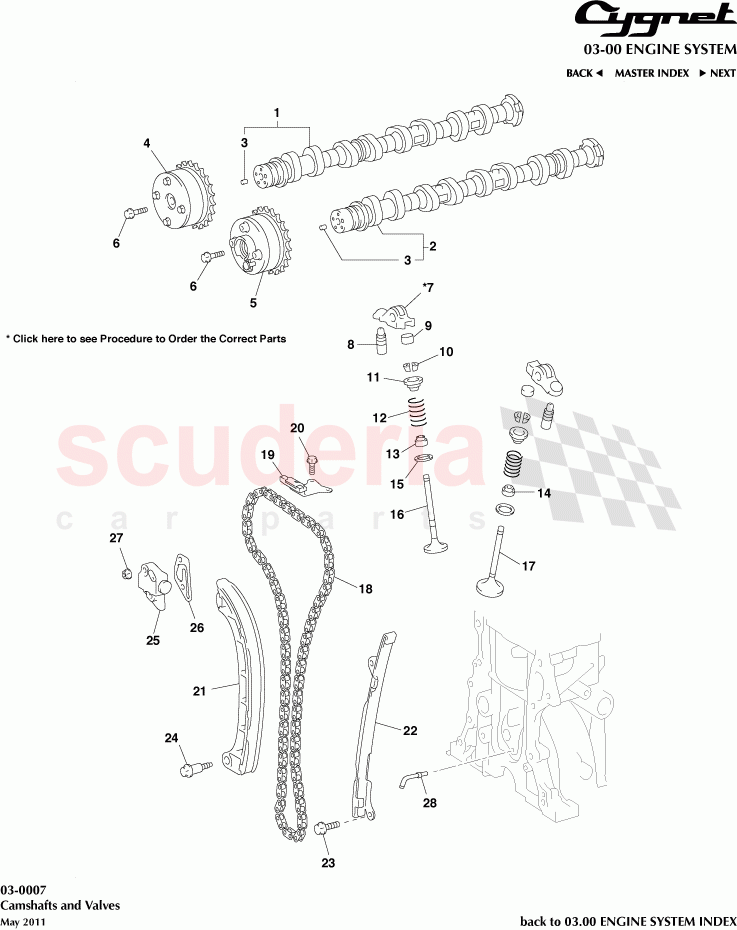

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1350147020	Camshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1350247010	Camshaft, N0.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9025005027	Pin, Straight, Camshaft Knock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1305047010	Gear Assy, Camshaft Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1307047010	Gear Assy, Camshaft Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510445	Bolt, Washer Based	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1380123011	Arm Sub-Assy, Valve Rocker, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1375075020	Adjuster Assy, Valve Lash	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1371675020	Cap, Valve Stem	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9091303028	Lock, Valve Spring Retainer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1374120021	Retainer, Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9050132062	Spring, Compression	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9008031061	Seal or O Ring, Intake Valve Stem Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9091302112	Seal, Exhaust Valve Stem Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1373462020	Seal. Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1371147010	Valve, Intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1371547010	Valve, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1350647010	Chain Sub-Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1356247010	Damper, Chain Vibration, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180614	Bolt, Flange with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1359147010	Arm, Timing Chain Tension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1356647010	Guide, Timing Chain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180614	Bolt, Flange with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010908304	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1354047010	Tensioner Assy, Chain No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1355247010	Gasket, Chain Tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9415180600	Nut	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1380147010	Arm Sub-Assy, Valve Rocker, No.1	1380147010 Arm Sub-Assy, Valve Rocker, No.1 *from 08/2010	-	16	Enquire
1	1350147020	Camshaft	1350147020 Camshaft	-	1	Enquire
2	1350247010	Camshaft, N0.2	1350247010 Camshaft, N0.2	-	1	Enquire
3	9025005027	Pin, Straight, Camshaft Knock	9025005027 Pin, Straight, Camshaft Knock L=8, OD=5	-	2	Enquire
4	1305047010	Gear Assy, Camshaft Timing	1305047010 Gear Assy, Camshaft Timing	-	1	Enquire
5	1307047010	Gear Assy, Camshaft Timing	1307047010 Gear Assy, Camshaft Timing	-	1	Enquire
6	9010510445	Bolt, Washer Based	9010510445 Bolt, Washer Based	-	2	Enquire
7	1380123011	Arm Sub-Assy, Valve Rocker, No.1	1380123011 Arm Sub-Assy, Valve Rocker, No.1 *05/2009 to 08/2010	-	16	Enquire
8	1375075020	Adjuster Assy, Valve Lash	1375075020 Adjuster Assy, Valve Lash	-	16	Enquire
9	1371675020	Cap, Valve Stem	1371675020 Cap, Valve Stem	-	16	Enquire
10	9091303028	Lock, Valve Spring Retainer	9091303028 Lock, Valve Spring Retainer	-	32	Enquire
11	1374120021	Retainer, Valve Spring	1374120021 Retainer, Valve Spring	-	16	Enquire
12	9050132062	Spring, Compression	9050132062 Spring, Compression	-	16	Enquire
13	9008031061	Seal or O Ring, Intake Valve Stem Oil	9008031061 Seal or O Ring, Intake Valve Stem Oil	-	8	Enquire
14	9091302112	Seal, Exhaust Valve Stem Oil	9091302112 Seal, Exhaust Valve Stem Oil	-	8	Enquire
15	1373462020	Seal. Valve Spring	1373462020 Seal. Valve Spring	-	16	Enquire
16	1371147010	Valve, Intake	1371147010 Valve, Intake	-	8	Enquire
17	1371547010	Valve, Exhaust	1371547010 Valve, Exhaust	-	8	Enquire
18	1350647010	Chain Sub-Assy	1350647010 Chain Sub-Assy	-	1	Enquire
19	1356247010	Damper, Chain Vibration, No.2	1356247010 Damper, Chain Vibration, No.2	-	1	Enquire
20	9167180614	Bolt, Flange with Washer	9167180614 Bolt, Flange with Washer	-	2	Enquire
21	1359147010	Arm, Timing Chain Tension	1359147010 Arm, Timing Chain Tension	-	1	Enquire
22	1356647010	Guide, Timing Chain	1356647010 Guide, Timing Chain	-	1	Enquire
23	9167180614	Bolt, Flange with Washer	9167180614 Bolt, Flange with Washer	-	2	Enquire
24	9010908304	Bolt	9010908304 Bolt	-	1	Enquire
25	1354047010	Tensioner Assy, Chain No.1	1354047010 Tensioner Assy, Chain No.1	-	1	Enquire
26	1355247010	Gasket, Chain Tensioner	1355247010 Gasket, Chain Tensioner	-	1	Enquire
27	9415180600	Nut	9415180600 Nut	-	2	Enquire
