Cylinder Head of Aston Martin Aston Martin Cygnet

View All

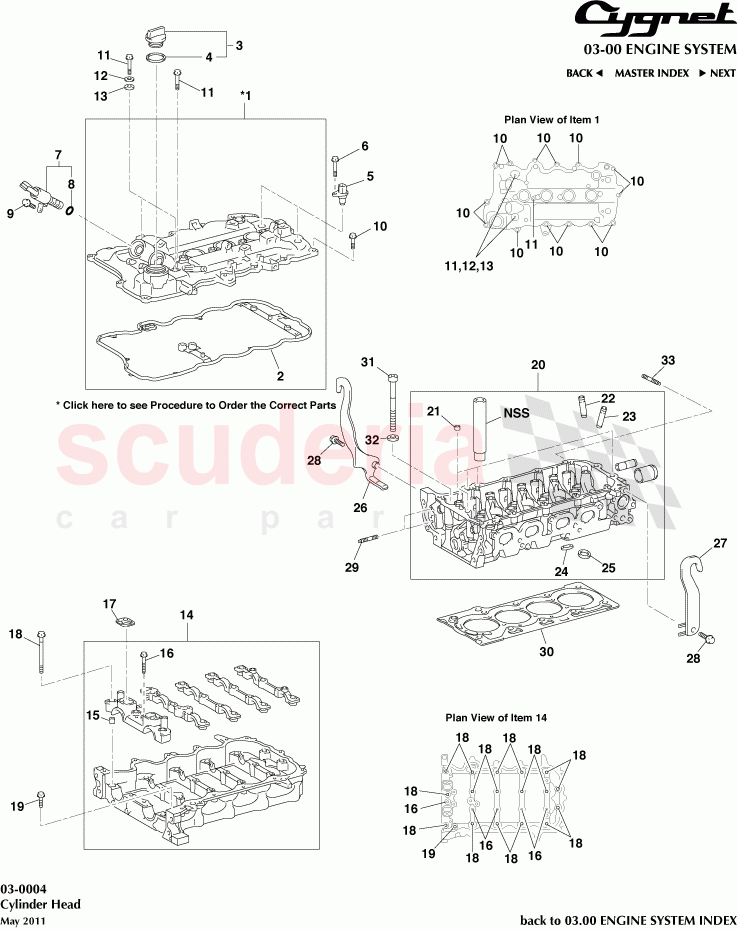

Aston Martin Cygnet - Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1120147080	Cover Sub-Assy, Cylinder Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1121347020	Gasket, Cylinder Head Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1218038010	Cap Sub-Assy, Oil Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9043035001	Gasket, Oil Filler Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9091905060	Sensor, Crank Position, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180635	Bolt, Head to Camshaft Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1533047020	Valve Assy, Camshaft Timing Oil Control, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9009914137	O Ring, Cam Timing Oil Control Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180614	Bolt, Flange with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010906384	Bolt J807	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180635	Bolt, Head to Camshaft Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9020106047	Washer, Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9021012011	Washer, Seal, Cylinder Head Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1110347010	Housing Sub-Assy, Camshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9025313005	Pin, Ring, Camshaft Bearing Cap Setting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010508455	Bolt, Camshaft housing Set, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1115947010	Gasket, Camshaft Bearing Cap Oil Hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010508455	Bolt, Camshaft housing Set, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91671G0835	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1110149465	Head Sub-Assy, Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9025311004	Pin, Ring with Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1112231041	Bush, Exhaust Valve Guide, STD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1112231041	Bush, Exhaust Valve Guide, STD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1113247010	Seat, Intake Valve, O/S 0,03	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1113547010	Seat, Exhaust Valve, STD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1228147022	Hanger, Engine, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1228247010	Hanger, Engine, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155281040	Bolt, Flange, V106	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9012606002	Stud, Hex Lobular	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1111547050	Gasket, Cylinder Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9091002174	Bolt, Cylinder Head Set	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9020110344	Washer, Plate, Cylinder head Set	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9012608063	Bolt, Stud, Exhaust Manifold to Cylinder Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1120147081	Cover Sub-Assy, Cylinder Head	1120147081 Cover Sub-Assy, Cylinder Head *From 05/2010	-	1	Enquire
-	1533047010	Valve Assy, Camshaft Timing Oil Control, No.1	1533047010 Valve Assy, Camshaft Timing Oil Control, No.1	-	1	Enquire
-	9011907009	Bolt, Camshaft housing Set, No.1	9011907009 Bolt, Camshaft housing Set, No.1	-	5	Enquire
-	9011907009	Bolt, Camshaft housing Set, No.1	9011907009 Bolt, Camshaft housing Set, No.1	-	16	Enquire
-	1112331041	Bush, Exhaust Valve Guide, O/S 0.05	1112331041 Bush, Exhaust Valve Guide, O/S 0.05 O/S 0,05	-	8	Enquire
-	1113147010	Seat, Intake Valve, STD	1113147010 Seat, Intake Valve, STD STD	-	8	Enquire
-	1113647010	Seat, Exhaust Valve, O/S 0,03	1113647010 Seat, Exhaust Valve, O/S 0,03 O/S 0,03	-	8	Enquire
1	1120147080	Cover Sub-Assy, Cylinder Head	1120147080 Cover Sub-Assy, Cylinder Head *05/2009 to 05/2010	-	1	Enquire
2	1121347020	Gasket, Cylinder Head Cover	1121347020 Gasket, Cylinder Head Cover	-	1	Enquire
3	1218038010	Cap Sub-Assy, Oil Filler	1218038010 Cap Sub-Assy, Oil Filler	-	1	Enquire
4	9043035001	Gasket, Oil Filler Cap	9043035001 Gasket, Oil Filler Cap	-	1	Enquire
5	9091905060	Sensor, Crank Position, No.1	9091905060 Sensor, Crank Position, No.1	-	1	Enquire
6	9155180635	Bolt, Head to Camshaft Bearing Cap	9155180635 Bolt, Head to Camshaft Bearing Cap	-	2	Enquire
7	1533047020	Valve Assy, Camshaft Timing Oil Control, No.2	1533047020 Valve Assy, Camshaft Timing Oil Control, No.2	-	1	Enquire
8	9009914137	O Ring, Cam Timing Oil Control Valve	9009914137 O Ring, Cam Timing Oil Control Valve 1 per Valve	-	2	Enquire
9	9167180614	Bolt, Flange with Washer	9167180614 Bolt, Flange with Washer 1 per Valve	-	2	Enquire
10	9010906384	Bolt J807	9010906384 Bolt J807	-	15	Enquire
11	9155180635	Bolt, Head to Camshaft Bearing Cap	9155180635 Bolt, Head to Camshaft Bearing Cap	-	3	Enquire
12	9020106047	Washer, Plate	9020106047 Washer, Plate	-	2	Enquire
13	9021012011	Washer, Seal, Cylinder Head Cover	9021012011 Washer, Seal, Cylinder Head Cover	-	2	Enquire
14	1110347010	Housing Sub-Assy, Camshaft	1110347010 Housing Sub-Assy, Camshaft	-	1	Enquire
15	9025313005	Pin, Ring, Camshaft Bearing Cap Setting	9025313005 Pin, Ring, Camshaft Bearing Cap Setting	-	1	Enquire
16	9010508455	Bolt, Camshaft housing Set, No.2	9010508455 Bolt, Camshaft housing Set, No.2	-	5	Enquire
17	1115947010	Gasket, Camshaft Bearing Cap Oil Hole	1115947010 Gasket, Camshaft Bearing Cap Oil Hole	-	1	Enquire
18	9010508455	Bolt, Camshaft housing Set, No.2	9010508455 Bolt, Camshaft housing Set, No.2	-	16	Enquire
19	91671G0835	Bolt, Flange	91671G0835 Bolt, Flange	-	1	Enquire
20	1110149465	Head Sub-Assy, Cylinder	1110149465 Head Sub-Assy, Cylinder	-	1	Enquire
21	9025311004	Pin, Ring with Head	9025311004 Pin, Ring with Head	-	1	Enquire
22	1112231041	Bush, Exhaust Valve Guide, STD	1112231041 Bush, Exhaust Valve Guide, STD STD	-	8	Enquire
23	1112231041	Bush, Exhaust Valve Guide, STD	1112231041 Bush, Exhaust Valve Guide, STD STD	-	8	Enquire
24	1113247010	Seat, Intake Valve, O/S 0,03	1113247010 Seat, Intake Valve, O/S 0,03 O/S 0,03	-	8	Enquire
25	1113547010	Seat, Exhaust Valve, STD	1113547010 Seat, Exhaust Valve, STD STD	-	8	Enquire
26	1228147022	Hanger, Engine, No.1	1228147022 Hanger, Engine, No.1	-	1	Enquire
27	1228247010	Hanger, Engine, No.2	1228247010 Hanger, Engine, No.2	-	1	Enquire
28	9155281040	Bolt, Flange, V106	9155281040 Bolt, Flange, V106	-	2	Enquire
29	9012606002	Stud, Hex Lobular	9012606002 Stud, Hex Lobular	-	2	Enquire
30	1111547050	Gasket, Cylinder Head	1111547050 Gasket, Cylinder Head	-	1	Enquire
31	9091002174	Bolt, Cylinder Head Set	9091002174 Bolt, Cylinder Head Set	-	1	Enquire
32	9020110344	Washer, Plate, Cylinder head Set	9020110344 Washer, Plate, Cylinder head Set	-	1	Enquire
33	9012608063	Bolt, Stud, Exhaust Manifold to Cylinder Head	9012608063 Bolt, Stud, Exhaust Manifold to Cylinder Head	-	1	Enquire
