Cylinder Block Component Parts

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Cylinder Block Component Parts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1210147140 Pan-Sub Assy, Oil Enquire To Order
Photo Part No Description Price (each) Stock
9025311021 Pin Enquire To Order
Photo Part No Description Price (each) Stock
9025008074 Pin, Straight, Oil Pan Enquire To Order
Photo Part No Description Price (each) Stock
1210247020 Pan-Sub Assy, Oil, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
9034112032 Plug, Oil Pan Drain Enquire To Order
Photo Part No Description Price (each) Stock

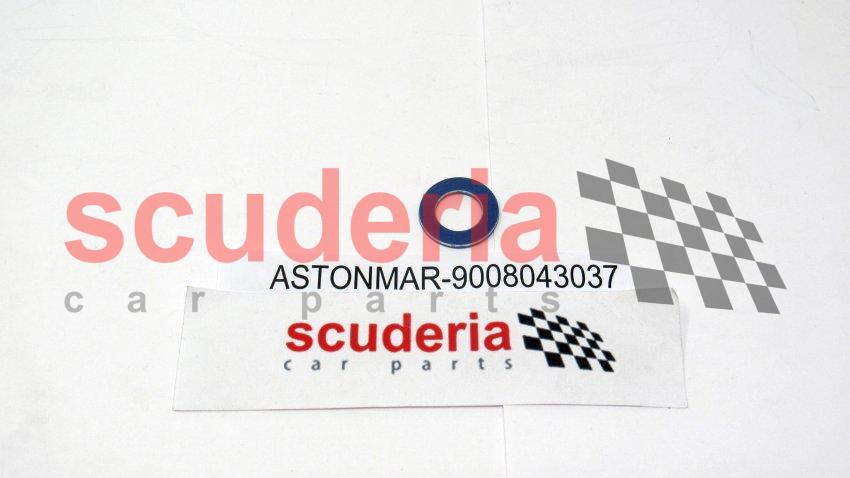

9008043037 Gasket, Oil Drain Plug Enquire To Order
Photo Part No Description Price (each) Stock
9011906938 Bolt, with Washer Enquire To Order
Photo Part No Description Price (each) Stock
90105W0016 Bolt, Flange R206 Enquire To Order
Photo Part No Description Price (each) Stock
91551F0855 Bolt, Flange FL09 Enquire To Order
Photo Part No Description Price (each) Stock
9010510540 Bolt, Flange Enquire To Order
Photo Part No Description Price (each) Stock
9030119023 O Ring Enquire To Order
Photo Part No Description Price (each) Stock
9031199012 Seal, Engine Rear Oil, MAN Enquire To Order
Photo Part No Description Price (each) Stock
1212147020 Plate, Oil Pan Baffle, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
9011906848 Bolt, with Washer Enquire To Order
Photo Part No Description Price (each) Stock
1140947020 Guide, Oil Level Gage Enquire To Order
Photo Part No Description Price (each) Stock
9674119010 O Ring, Oil Level Gage Enquire To Order
Photo Part No Description Price (each) Stock
9167180820 Bolt, Transmission Control Cable Bracket Enquire To Order
Photo Part No Description Price (each) Stock
1530147030 Gage Sub Assy, Oil Level Enquire To Order
Photo Part No Description Price (each) Stock
1144547010 Spacer, Cylinder Block Water Jacket Enquire To Order
Photo Part No Description Price (each) Stock
8961502020 Sensor, Knock Control Enquire To Order
Photo Part No Description Price (each) Stock
90105W0016 Bolt, Flange R206 Enquire To Order
Photo Part No Description Price (each) Stock
8353005010 Switch Assy, Oil Pressure Enquire To Order
Photo Part No Description Price (each) Stock
9025004097 Pin, Straight, Timing Gear Cover Set Enquire To Order
Photo Part No Description Price (each) Stock
1351640010 Jet, Oil Enquire To Order
Photo Part No Description Price (each) Stock
9043012039 O Ring, Oil Pan Enquire To Order
Photo Part No Description Price (each) Stock
1570847030 Nozzle Sub-Assy, Oil, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
9011006040 Bolt, Hexagon Socket Enquire To Order
Photo Part No Description Price (each) Stock
9155281045 Bolt, Flange CF09 Enquire To Order
Photo Part No Description Price (each) Stock
9025010113 Pin, Straight, Clutch Housing Set Enquire To Order
Photo Part No Description Price (each) Stock
9025313017 Pin, Ring, Cylinder Head Set Enquire To Order
Photo Part No Description Price (each) Stock
1136340010 Cover, Flywheel Housing Side Enquire To Order
View All

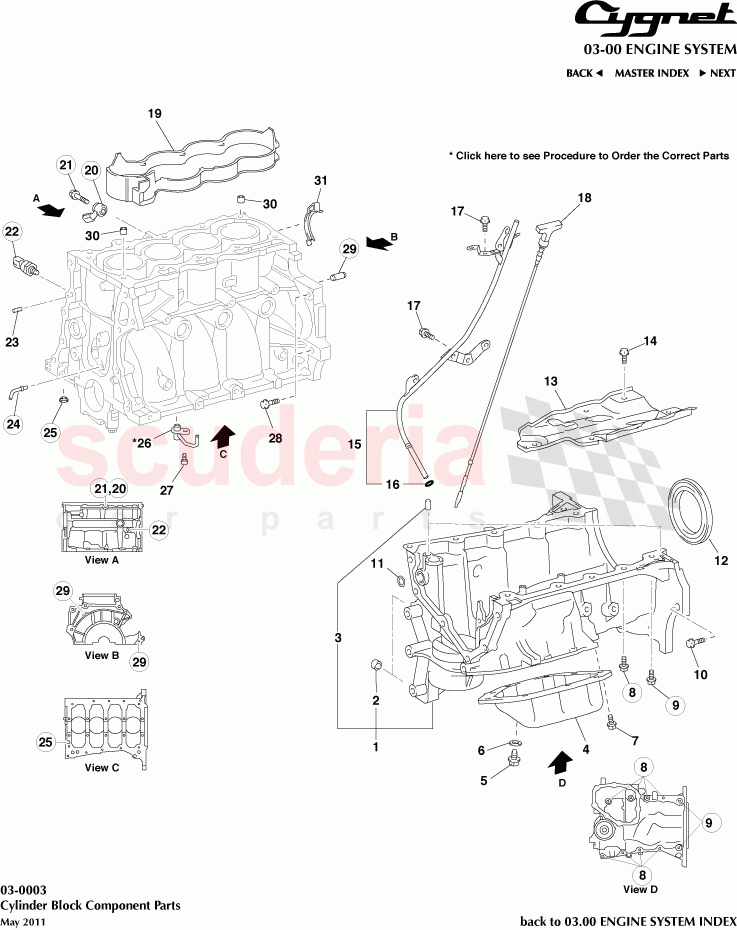

Cylinder Block Component Parts of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9031178003
Seal, Engine Rear Oil, AUTO 		- 1 Enquire
- 1570847040
Nozzle Sub-Assy, Oil, No.1
*From 04/2011 		- 1 Enquire
1 1210147140
Pan-Sub Assy, Oil 		- 1 Enquire
2 9025311021
Pin 		- 2 Enquire
3 9025008074
Pin, Straight, Oil Pan 		- 1 Enquire
4 1210247020
Pan-Sub Assy, Oil, No.2 		- 1 Enquire
5 9034112032
Plug, Oil Pan Drain 		- 1 Enquire
6 9008043037
Gasket, Oil Drain Plug 		- 1 Enquire
7 9011906938
Bolt, with Washer 		- 9 Enquire
8 90105W0016
Bolt, Flange R206 		- 8 Enquire
9 91551F0855
Bolt, Flange FL09 		- 2 Enquire
10 9010510540
Bolt, Flange 		- 5 Enquire
11 9030119023
O Ring 		- 1 Enquire
12 9031199012
Seal, Engine Rear Oil, MAN 		- 1 Enquire
13 1212147020
Plate, Oil Pan Baffle, No.1 		- 1 Enquire
14 9011906848
Bolt, with Washer 		- 6 Enquire
15 1140947020
Guide, Oil Level Gage 		- 1 Enquire
16 9674119010
O Ring, Oil Level Gage 		- 1 Enquire
17 9167180820
Bolt, Transmission Control Cable Bracket 		- 2 Enquire
18 1530147030
Gage Sub Assy, Oil Level 		- 1 Enquire
19 1144547010
Spacer, Cylinder Block Water Jacket 		- 1 Enquire
20 8961502020
Sensor, Knock Control 		- 1 Enquire
21 90105W0016
Bolt, Flange R206 		- 1 Enquire
22 8353005010
Switch Assy, Oil Pressure 		- 1 Enquire
23 9025004097
Pin, Straight, Timing Gear Cover Set 		- 1 Enquire
24 1351640010
Jet, Oil 		- 1 Enquire
25 9043012039
O Ring, Oil Pan 		- 1 Enquire
26 1570847030
Nozzle Sub-Assy, Oil, No.1
*09/2010 to 04/2011 		- 1 Enquire
27 9011006040
Bolt, Hexagon Socket 		- 4 Enquire
28 9155281045
Bolt, Flange CF09 		- 2 Enquire
29 9025010113
Pin, Straight, Clutch Housing Set 		- 2 Enquire
30 9025313017
Pin, Ring, Cylinder Head Set 		- 2 Enquire
31 1136340010
Cover, Flywheel Housing Side 		- 1 Enquire
