9 - CLOSURES ANCILLARIES - 9.8 - CLOSURES SEALS of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 9 - CLOSURES ANCILLARIES - 9.8 - CLOSURES SEALS

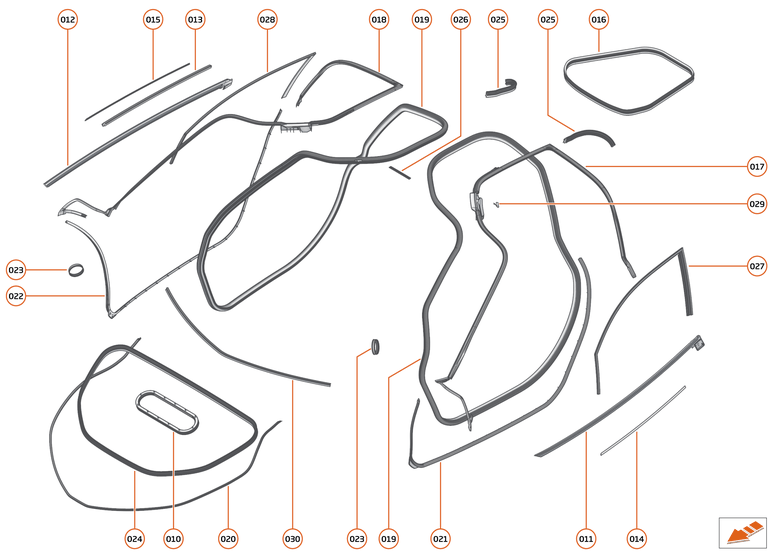

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA596	SCREW - TORX - NO8X3_8-SS-90	00RA596 SCREW - TORX - NO8X3_8-SS-90 Row ID: ID__00RA596_ContPgHS;	-	3	Enquire
000	00RA130	SCREW - NR8X13 - FLANGE	00RA130 SCREW - NR8X13 - FLANGE Row ID: ID__00RA130_ContPgHS;	-	10	Enquire
000	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	3	Enquire
010	13A1353CP	SEAL - INLET - HVAC	13A1353CP SEAL - INLET - HVAC Row ID: ID__13A1353CP_ContPgHS;	-	1	Enquire
011	23AE089CP	SEAL DOOR WAIST OTR LH	23AE089CP SEAL DOOR WAIST OTR LH Row ID: ID__23AE089CP_ContPgHS;	-	1	Enquire
012	23AE090CP	SEAL DOOR WAIST OTR RH	23AE090CP SEAL DOOR WAIST OTR RH Row ID: ID__23AE090CP_ContPgHS;	-	1	Enquire
013	23AA105CP	SEAL DOOR WAIST INR	23AA105CP SEAL DOOR WAIST INR Row ID: ID__23AA105CP_ContPgHS;	-	1	Enquire
013	23AA107CP	SEAL DOOR WAIST INR RH	23AA107CP SEAL DOOR WAIST INR RH Row ID: ID__23AA107CP_ContPgHS;	-	1	Enquire
014	23AA148CP	SEAL DROP GLASS LH	23AA148CP SEAL DROP GLASS LH Row ID: ID__23AA148CP_ContPgHS;	-	1	Enquire
015	23AA150CP	SEAL DROP GLASS - RH	23AA150CP SEAL DROP GLASS - RH Row ID: ID__23AA150CP_ContPgHS;	-	1	Enquire
016	23AA195CP	SEAL TAILGATE	23AA195CP SEAL TAILGATE Row ID: ID__23AA195CP_ContPgHS;	-	1	Enquire
017	23AA328CP	ASSY SECONDARY SEAL UPPER LH	23AA328CP ASSY SECONDARY SEAL UPPER LH Row ID: ID__23AA328CP_ContPgHS;	-	1	Enquire
018	23AA330CP	ASSY SECONDARY SEAL UPPER RH	23AA330CP ASSY SECONDARY SEAL UPPER RH Row ID: ID__23AA330CP_ContPgHS;	-	1	Enquire
019	23AE088CP	DOOR PRIMARY SEAL	23AE088CP DOOR PRIMARY SEAL Row ID: ID__23AE088CP_ContPgHS;	-	1	Enquire
020	23AA448CP	SEAL BONNET MARGIN	23AA448CP SEAL BONNET MARGIN Row ID: ID__23AA448CP_ContPgHS;	-	1	Enquire
021	23AA451CP	SEAL DOOR SECONDARY LWR LH	23AA451CP SEAL DOOR SECONDARY LWR LH Row ID: ID__23AA451CP_ContPgHS;	-	1	Enquire
022	23AA453CP	SEAL DOOR SECONDARY LWR RH	23AA453CP SEAL DOOR SECONDARY LWR RH Row ID: ID__23AA453CP_ContPgHS;	-	1	Enquire
023	23AA307CP	SEAL DOOR TO FACIA - VENT	23AA307CP SEAL DOOR TO FACIA - VENT Row ID: ID__23AA307CP_ContPgHS;	-	1	Enquire
024	23AA466CP	SEAL BONNET PRIMARY	23AA466CP SEAL BONNET PRIMARY Row ID: ID__23AA466CP_ContPgHS;	-	1	Enquire
025	23AE091CP	SEAL ENGINE COVER	23AE091CP SEAL ENGINE COVER Row ID: ID__23AE091CP_ContPgHS;	-	1	Enquire
026	23AC916CP	SEAL WINDSCREEN HEADER	23AC916CP SEAL WINDSCREEN HEADER Row ID: ID__23AC916CP_ContPgHS;	-	1	Enquire
027	15AB207CP	SEAL DOOR PRIMARY GLASS RUN LH	15AB207CP SEAL DOOR PRIMARY GLASS RUN LH Row ID: ID__15AB207CP_ContPgHS;	-	1	Enquire
028	15AB208CP	SEAL DOOR PRIMARY GLASS RUN RH	15AB208CP SEAL DOOR PRIMARY GLASS RUN RH Row ID: ID__15AB208CP_ContPgHS;	-	1	Enquire
029	23AC843CP	SEAL MOULDING DOOR FIXED LH	23AC843CP SEAL MOULDING DOOR FIXED LH Row ID: ID__23AC843CP_ContPgHS;	-	1	Enquire
030	23AA925CP	SEAL - WINDSCREEN LOWER	23AA925CP SEAL - WINDSCREEN LOWER Row ID: ID__23AA925CP_ContPgHS;	-	1	Enquire
