10 - EXTERIOR ORNAMENTATION - 10.6 - REAR TRIM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 10 - EXTERIOR ORNAMENTATION - 10.6 - REAR TRIM

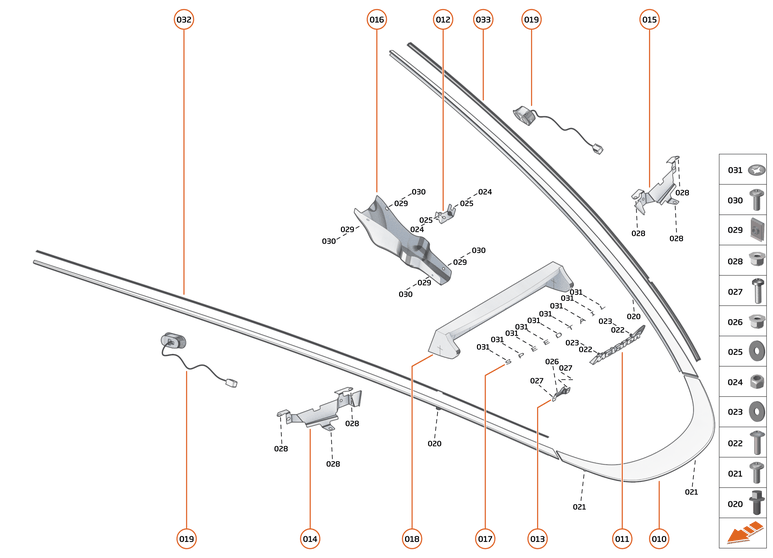

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	23AE880CP	PPF - REAR BUMPER - PRECIOUS METAL BADGE	23AE880CP PPF - REAR BUMPER - PRECIOUS METAL BADGE Row ID: ID__23AE880CP_ContPgHS;	-	1	Enquire
000	23AE881CP	PPF - REAR BUMPER-NON PRECIOUS METAL BADGE	23AE881CP PPF - REAR BUMPER-NON PRECIOUS METAL BADGE Row ID: ID__23AE881CP_ContPgHS;	-	1	Enquire
010	23AB014CP	TAILGATE FINISHER	23AB014CP TAILGATE FINISHER Row ID: ID__23AB014CP_ContPgHS;	-	1	Enquire
011	23AE418CP	ASSY - MCLAREN BADGE REAR	23AE418CP ASSY - MCLAREN BADGE REAR Row ID: ID__23AE418CP_ContPgHS;	-	1	Enquire
011	23AD328CP	ASSY - MCLAREN BADGE REAR OPTI	23AD328CP ASSY - MCLAREN BADGE REAR OPTI Row ID: ID__23AD328CP_ContPgHS;	-	1	Enquire
011	23AD329CP	ASSY - MCLAREN BADGE REAR OPTI	23AD329CP ASSY - MCLAREN BADGE REAR OPTI Row ID: ID__23AD329CP_ContPgHS;	-	1	Enquire
012	23AB906CP	BRKT - CHMSL MNTG	23AB906CP BRKT - CHMSL MNTG Row ID: ID__23AB906CP_ContPgHS;	-	1	Enquire
013	23AC517CP	REAR CAMERA BRKT MAC	23AC517CP REAR CAMERA BRKT MAC Row ID: ID__23AC517CP_ContPgHS;	-	1	Enquire
014	23AC513CP	REFLECTOR BRKT LH	23AC513CP REFLECTOR BRKT LH Row ID: ID__23AC513CP_ContPgHS;	-	1	Enquire
015	23AC515CP	REFLECTOR BRKT RH	23AC515CP REFLECTOR BRKT RH Row ID: ID__23AC515CP_ContPgHS;	-	1	Enquire
016	23AC356CP	CHMSL HEAT SHIELD	23AC356CP CHMSL HEAT SHIELD Row ID: ID__23AC356CP_ContPgHS;	-	1	Enquire
017	23AE420CP	NAME BADGE REAR	23AE420CP NAME BADGE REAR Row ID: ID__23AE420CP_ContPgHS;	-	1	Enquire
017	23AD322CP	NAME BADGE REAR OPTION A	23AD322CP NAME BADGE REAR OPTION A Row ID: ID__23AD322CP_ContPgHS;	-	1	Enquire
017	23AD323CP	NAME BADGE REAR OPTION B	23AD323CP NAME BADGE REAR OPTION B Row ID: ID__23AD323CP_ContPgHS;	-	1	Enquire
018	23AC789CP	REAR CAMERA HEAT SHIELD	23AC789CP REAR CAMERA HEAT SHIELD Row ID: ID__23AC789CP_ContPgHS;	-	1	Enquire
019	12M0762CP	SWITCH - DOOR LOCK - PUSH BUTTON	12M0762CP SWITCH - DOOR LOCK - PUSH BUTTON Row ID: ID__12M0762CP_ContPgHS;	-	1	Enquire
020	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	2	Enquire
021	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS Row ID: ID__00RA695_ContPgHS;	-	2	Enquire
022	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	2	Enquire
023	00RC030	Washer - M4x12x1	00RC030 Washer - M4x12x1 Row ID: ID__00RC030_ContPgHS;	-	2	Enquire
024	00RA428	LOCKING NUT M5 - HEX	00RA428 LOCKING NUT M5 - HEX Row ID: ID__00RA428_ContPgHS;	-	2	Enquire
025	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	2	Enquire
026	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	1	Enquire
027	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Row ID: ID__00RA464_ContPgHS;	-	2	Enquire
028	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	6	Enquire
029	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	4	Enquire
030	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	4	Enquire
031	23AD138CP	STARLOCK D1.5 MMXD9.7MMX0.2MM	23AD138CP STARLOCK D1.5 MMXD9.7MMX0.2MM Row ID: ID__23AD138CP_ContPgHS;	-	9	Enquire
032	23AD277CP	REAR FINISHER WAIST SEAL LH	23AD277CP REAR FINISHER WAIST SEAL LH Row ID: ID__23AD277CP_ContPgHS;	-	1	Enquire
033	23AD278CP	REAR FINISHER WAIST SEAL RH	23AD278CP REAR FINISHER WAIST SEAL RH Row ID: ID__23AD278CP_ContPgHS;	-	1	Enquire
