13 - WIPERS AND WASHER SYSTEM - 13.3 - WINDSCREEN WIPER LINKAGE of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 13 - WIPERS AND WASHER SYSTEM - 13.3 - WINDSCREEN WIPER LINKAGE

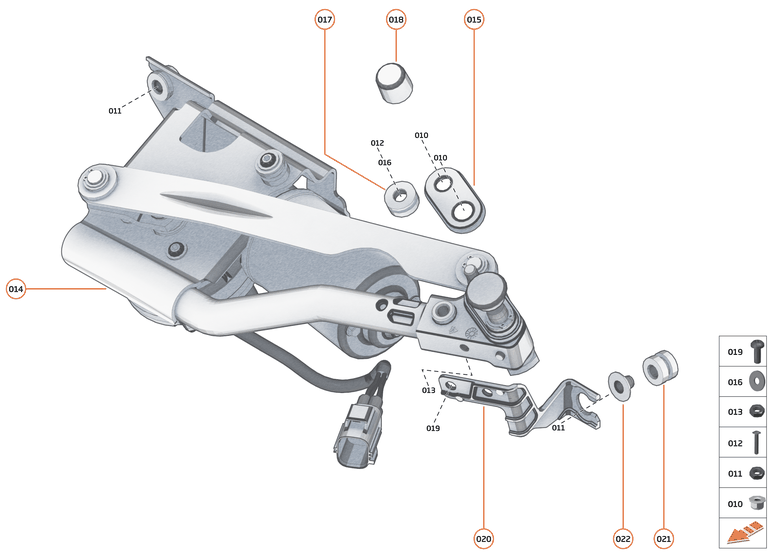

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA709	SCR-BTN HD-TX-M8X1.25X40-10.9-	00RA709 SCR-BTN HD-TX-M8X1.25X40-10.9- Row ID: ID__00RA709_ContPgHS;	-	1	Enquire
000	00RA504	NUT-HX-FL-LCK-M8X1.25-STL-85	00RA504 NUT-HX-FL-LCK-M8X1.25-STL-85 Row ID: ID__00RA504_ContPgHS;	-	1	Enquire
010	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Row ID: ID__00RA056_ContPgHS;	-	2	Enquire
011	00RA134	Nut - M6 - Hex	00RA134 Nut - M6 - Hex Row ID: ID__00RA134_ContPgHS;	-	1	Enquire
012	00RA290	Bolt - M8x40 - Button	00RA290 Bolt - M8x40 - Button Row ID: ID__00RA290_ContPgHS;	-	1	Enquire
013	00RA163	Nut - M8-8.8 - Hex	00RA163 Nut - M8-8.8 - Hex Row ID: ID__00RA163_ContPgHS;	-	1	Enquire
014	23AD422CP	ASSY WINDSCREEN WIPER MECH	23AD422CP ASSY WINDSCREEN WIPER MECH Row ID: ID__23AD422CP_ContPgHS;	-	1	Enquire
015	11A3699CP	Grommet - Wiper - Spindle	11A3699CP Grommet - Wiper - Spindle Row ID: ID__11A3699CP_ContPgHS;	-	1	Enquire
016	11A4644CP	Washer - M8 - Slip - Wiper	11A4644CP Washer - M8 - Slip - Wiper Row ID: ID__11A4644CP_ContPgHS;	-	1	Enquire
017	11A4101CP	WIPER-GROMMET-LINK24E	11A4101CP WIPER-GROMMET-LINK24E Row ID: ID__11A4101CP_ContPgHS;	$5.25	1
018	11A3698CP	Cap - Wiper - Pantograph	11A3698CP Cap - Wiper - Pantograph Row ID: ID__11A3698CP_ContPgHS;	-	1	Enquire
019	00RA116	SCREW - M6X10 - BUTTON - 8.8	00RA116 SCREW - M6X10 - BUTTON - 8.8 Row ID: ID__00RA116_ContPgHS;	-	1	Enquire
020	11A3955CP	Brace - Wiper - Mechanism - LHD	11A3955CP Brace - Wiper - Mechanism - LHD Row ID: ID__11A3955CP_ContPgHS;	-	1	Enquire
021	11A4456CP	WIPER - ANTI VIBRATION GROMMET	11A4456CP WIPER - ANTI VIBRATION GROMMET Row ID: ID__11A4456CP_ContPgHS;	$3.23	1
022	11A3932CP	WIPER - ANTI VIBRA24ON BUSH	11A3932CP WIPER - ANTI VIBRA24ON BUSH Row ID: ID__11A3932CP_ContPgHS;	$1.92	1
