8 - GLAZING CLOSURES - 8.2 - DOOR GLAZING - DYNAMIC of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 8 - GLAZING CLOSURES - 8.2 - DOOR GLAZING - DYNAMIC

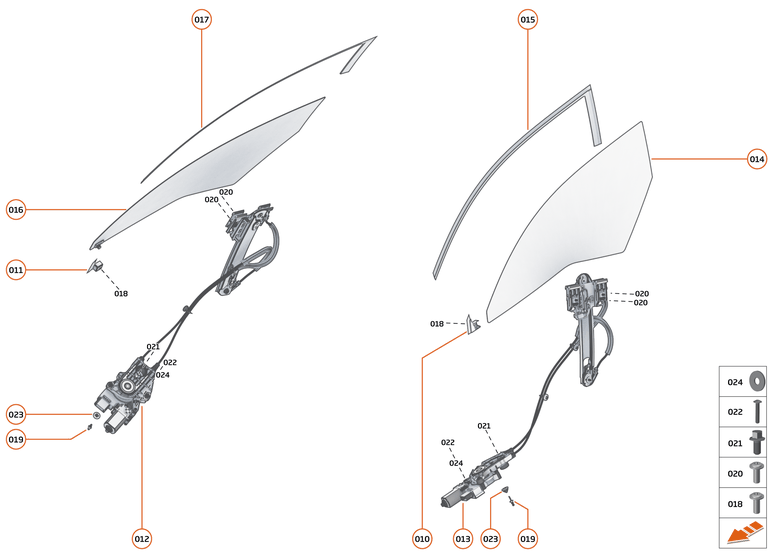

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Row ID: ID__00RA056_ContPgHS;	-	4	Enquire
000	00RX043	BOLT - HEX HEAD - FLANGE - M8X20	00RX043 BOLT - HEX HEAD - FLANGE - M8X20 Row ID: ID__00RX043_ContPgHS;	-	1	Enquire
000	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS;	-	1	Enquire
000	00RL015	CABLE TIE - SF100 - 18X - 110MM	00RL015 CABLE TIE - SF100 - 18X - 110MM Row ID: ID__00RL015_ContPgHS;	-	1	Enquire
000	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	1	Enquire
000	00RB250	CLIP - BOWDEN CABLE	00RB250 CLIP - BOWDEN CABLE Row ID: ID__00RB250_ContPgHS;	-	1	Enquire
010	15AB612CP	RETAINER - DROP GLASS - LH	15AB612CP RETAINER - DROP GLASS - LH Row ID: ID__15AB612CP_ContPgHS;	-	1	Enquire
011	15AB613CP	RETAINER - DROP GLASS - RH	15AB613CP RETAINER - DROP GLASS - RH Row ID: ID__15AB613CP_ContPgHS;	-	1	Enquire
012	15AD054CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	15AD054CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH Row ID: ID__15AD054CP_ContPgHS;	-	1	Enquire
013	15AD053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - LH	15AD053CP REGULATOR & MOTOR ASSY - DOOR GLASS - LH Row ID: ID__15AD053CP_ContPgHS;	-	1	Enquire
014	23AE054CP	ASSY GLASS DOOR DROP LH	23AE054CP ASSY GLASS DOOR DROP LH Row ID: ID__23AE054CP_ContPgHS;	-	1	Enquire
015	15AB743CP	RETAINER - DROP GLASS - LH	15AB743CP RETAINER - DROP GLASS - LH Row ID: ID__15AB743CP_ContPgHS;	-	1	Enquire
016	23AE055CP	ASSY GLASS DOOR DROP RH - ASSY GLASS DOOR DROP RH - ASSY GLASS DOOR DROP RH	23AE055CP ASSY GLASS DOOR DROP RH - ASSY GLASS DOOR DROP RH - ASSY GLASS DOOR DROP RH Row ID: ID__23AE055CP_ContPgHS;	-	1	Enquire
017	15AB744CP	RETAINER - DROP GLASS - RH	15AB744CP RETAINER - DROP GLASS - RH Row ID: ID__15AB744CP_ContPgHS;	-	1	Enquire
018	00RA430	SCREW - M4X10 - BUTTON HEAD - 10.9	00RA430 SCREW - M4X10 - BUTTON HEAD - 10.9 Row ID: ID__00RA430_ContPgHS;	-	1	Enquire
019	00RA664	STUD-BALL-M6X10X11.9-4.8-ZNPB	00RA664 STUD-BALL-M6X10X11.9-4.8-ZNPB Row ID: ID__00RA664_ContPgHS;	-	1	Enquire
020	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	2	Enquire
021	00RA458	BOLT - M6X10 - FLANGED	00RA458 BOLT - M6X10 - FLANGED Row ID: ID__00RA458_ContPgHS;	-	2	Enquire
022	00RA465	SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET	00RA465 SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET Row ID: ID__00RA465_ContPgHS;	-	2	Enquire
023	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID__00RB187_ContPgHS;	-	2	Enquire
024	00RC027	WASHER - M4 FORM C - LARGE	00RC027 WASHER - M4 FORM C - LARGE Row ID: ID__00RC027_ContPgHS;	-	2	Enquire
