10 - EXTERIOR ORNAMENTATION - 10.5 - FILLER BOWLS AND COVERS of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 10 - EXTERIOR ORNAMENTATION - 10.5 - FILLER BOWLS AND COVERS

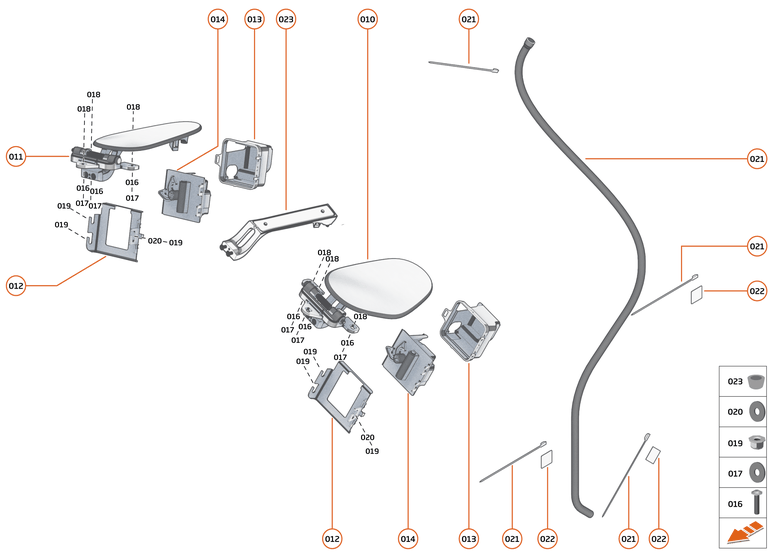

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	23AD814CP	ASSY - FUEL FILLER	23AD814CP ASSY - FUEL FILLER Row ID: ID__23AD814CP_ContPgHS;	-	1	Enquire
011	23AD815CP	ASSY OIL FILLER	23AD815CP ASSY OIL FILLER Row ID: ID__23AD815CP_ContPgHS;	-	1	Enquire
012	23AA943CP	FILLER LATCH BRACKET	23AA943CP FILLER LATCH BRACKET Row ID: ID__23AA943CP_ContPgHS;	-	2	Enquire
013	13A3933CP	HEATSHIELD - ACTUATOR HELLA	13A3933CP HEATSHIELD - ACTUATOR HELLA Row ID: ID__13A3933CP_ContPgHS;	-	2	Enquire
014	13A3932CP	ACTUATOR - FUEL FILLER	13A3932CP ACTUATOR - FUEL FILLER Row ID: ID__13A3932CP_ContPgHS;	-	2	Enquire
015	23AD991CP	FUEL FILLER DRAINAGE HOSE	23AD991CP FUEL FILLER DRAINAGE HOSE Row ID: ID__23AD991CP_ContPgHS;	-	1	Enquire
016	00RC030	Washer - M4x12x1	00RC030 Washer - M4x12x1 Row ID: ID__00RC030_ContPgHS;	-	6	Enquire
017	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	6	Enquire
018	11A7186CP	Shim - 0.5mm - Rear Bumper - MY2015	11A7186CP Shim - 0.5mm - Rear Bumper - MY2015 Row ID: ID__11A7186CP_ContPgHS;	-	18	Enquire
019	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	6	Enquire
020	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	2	Enquire
021	00RL008	CABLE TIE-SF100-18X	00RL008 CABLE TIE-SF100-18X Row ID: ID__00RL008_ContPgHS;	-	4	Enquire
022	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C Row ID: ID__00RL009_ContPgHS;	-	3	Enquire
023	23AE961CP	CAP FILLER NECK BUMP ON	23AE961CP CAP FILLER NECK BUMP ON Row ID: ID__23AE961CP_ContPgHS;	-	-	Enquire
