McLaren Ultimate Series McLaren Speedtail - 13 - WIPERS AND WASHER SYSTEM - 13.1 - WASHER SYSTEM

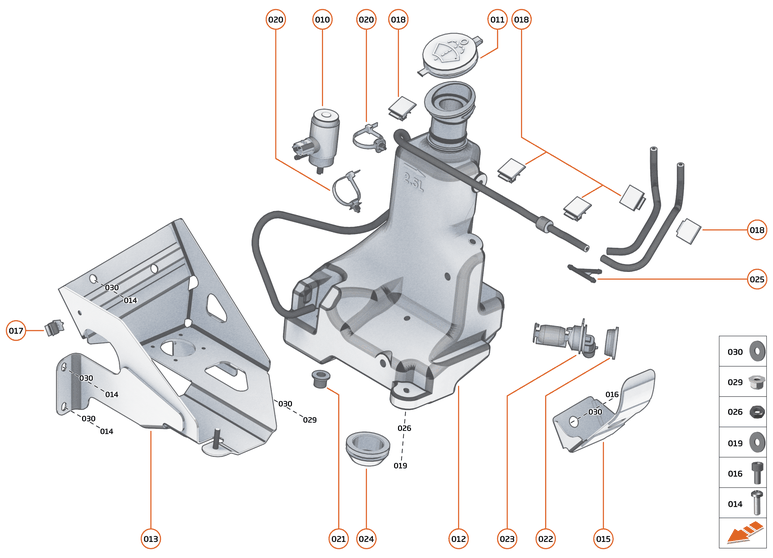

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	1	Enquire
000	00RB049	HOSE CLAMP - 40-60MM	00RB049 HOSE CLAMP - 40-60MM Row ID: ID__00RB049_ContPgHS;	-	2	Enquire
010	13A4198CP	PUMP - WINDSCREEN WASH	13A4198CP PUMP - WINDSCREEN WASH Row ID: ID__13A4198CP_ContPgHS;	-	1	Enquire
011	13A4522CP	CAP - WASHER BOTTLE	13A4522CP CAP - WASHER BOTTLE Row ID: ID__13A4522CP_ContPgHS;	-	1	Enquire
012	23AA136CP	ASSY WASHER BOTTLE AND HOSE - COMPLETE	23AA136CP ASSY WASHER BOTTLE AND HOSE - COMPLETE Row ID: ID__23AA136CP_ContPgHS;	-	1	Enquire
012	23AA385CP	ASSY - WASHER BOTTLE	23AA385CP ASSY - WASHER BOTTLE Row ID: ID__23AA385CP_ContPgHS;	-	1	Enquire
013	23AB658CP	BRKT WASHER BOTTLE LOWER	23AB658CP BRKT WASHER BOTTLE LOWER Row ID: ID__23AB658CP_ContPgHS;	-	1	Enquire
014	00RA081	SCREW - TORX - PAN - M6X16-8.8	00RA081 SCREW - TORX - PAN - M6X16-8.8 Row ID: ID__00RA081_ContPgHS;	-	3	Enquire
015	23AC947CP	BRKT WASHER BOTTLE UPPER	23AC947CP BRKT WASHER BOTTLE UPPER Row ID: ID__23AC947CP_ContPgHS;	-	1	Enquire
016	00RA691	SCR-PAN HD-TX-M6X1X20-SS-90	00RA691 SCR-PAN HD-TX-M6X1X20-SS-90 Row ID: ID__00RA691_ContPgHS;	-	1	Enquire
017	00RB170	CLIP - WASHER HOSE	00RB170 CLIP - WASHER HOSE Row ID: ID__00RB170_ContPgHS;	-	2	Enquire
018	00RB211	CLIP - PIPE - WINDSCREEN WASHER	00RB211 CLIP - PIPE - WINDSCREEN WASHER Row ID: ID__00RB211_ContPgHS;	-	5	Enquire
019	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	1	Enquire
020	11A5728CP	Tie Base - Cable - Firtree	11A5728CP Tie Base - Cable - Firtree Row ID: ID__11A5728CP_ContPgHS;	-	2	Enquire
021	13A4199CP	GROMMET - WASHER BOTTLE - PUMP	13A4199CP GROMMET - WASHER BOTTLE - PUMP Row ID: ID__13A4199CP_ContPgHS;	-	1	Enquire
022	13A4200CP	GROMMET - SENSOR - WASHER LEVEL	13A4200CP GROMMET - SENSOR - WASHER LEVEL Row ID: ID__13A4200CP_ContPgHS;	-	1	Enquire
023	13A4201CP	SENSOR - WASHER LEVEL	13A4201CP SENSOR - WASHER LEVEL Row ID: ID__13A4201CP_ContPgHS;	-	1	Enquire
024	13A4585CP	GASKET - WINDCREEN - WASHER BOTTLE	13A4585CP GASKET - WINDCREEN - WASHER BOTTLE Row ID: ID__13A4585CP_ContPgHS;	-	1	Enquire
025	13A4587CP	CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER	13A4587CP CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER Row ID: ID__13A4587CP_ContPgHS;	-	1	Enquire
026	00RA134	Nut - M6 - Hex	00RA134 Nut - M6 - Hex Row ID: ID__00RA134_ContPgHS;	-	1	Enquire
029	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	1	Enquire
030	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	4	Enquire
