Lubrication System: Pump And Filter

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 0161

Find Your Part

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - LUBRICATION SYSTEM: PUMP AND FILTER (01611)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053787 OIL PUMP ASSEMBLY Enquire To Order
670054149 OIL PUMP ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670052952 ENGINE OIL PUMP SEAL Enquire To Order
Photo Part No Description Price (each) Stock
670053356 OIL PUMP CONTROL BAR Enquire To Order
Photo Part No Description Price (each) Stock
675001417 CIRCLIP Enquire To Order
Photo Part No Description Price (each) Stock
670053697 NON-RETURN VALVE Enquire To Order
Photo Part No Description Price (each) Stock
670053443 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670050013 OIL PUMP SHAFT COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
675001404 CIRCLIP Enquire To Order
Photo Part No Description Price (each) Stock
670051450 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670177016 OIL RESERVOIR FEED TUBE Enquire To Order
Photo Part No Description Price (each) Stock
670177017 OIL DELIVERY PIPE TO ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
670051107 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670053572 CPL OIL FILTER CARTRIDGE Enquire To Order
670053958 OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
670052849 OIL FILTER Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
670050119 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670053348 OIL PRESSURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
675001199 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
675001201 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670051108 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673014039 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
673014518 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
673014519 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
11060276 CIRCLIP (SEEGER-RING) Enquire To Order
View All

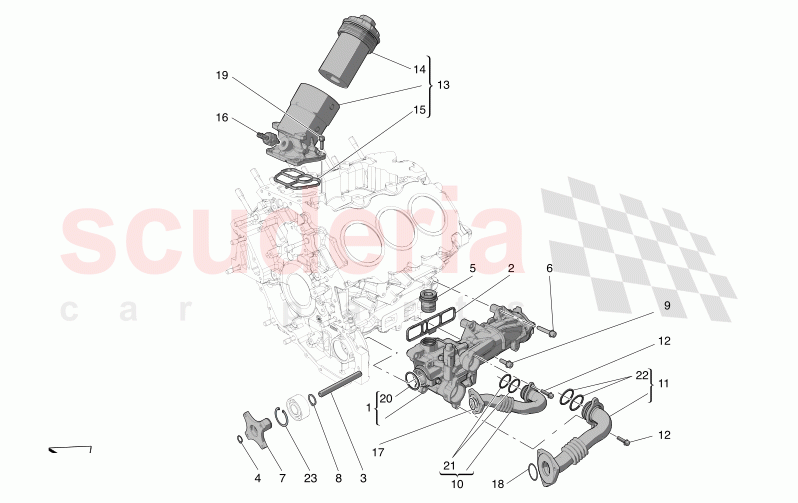

LUBRICATION SYSTEM: PUMP AND FILTER of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053787
OIL PUMP ASSEMBLY
Bespoke Assembly Number 0 - 7002077; 		- 1 Enquire
1 670054149
OIL PUMP ASSEMBLY 		- 1 Enquire
2 670052952
ENGINE OIL PUMP SEAL 		- 1 Enquire
3 670053356
OIL PUMP CONTROL BAR 		- 1 Enquire
4 675001417
CIRCLIP 		- 1 Enquire
5 670053697
NON-RETURN VALVE 		- 1 Enquire
6 670053443
SCREW 		- 4 Enquire
7 670050013
OIL PUMP SHAFT COUPLING 		- 1 Enquire
8 675001404
CIRCLIP 		- 1 Enquire
9 670051450
SCREW 		- 2 Enquire
10 670177016
OIL RESERVOIR FEED TUBE 		- 1 Enquire
11 670177017
OIL DELIVERY PIPE TO ENGINE 		- 1 Enquire
12 670051107
SCREW 		- 12 Enquire
13 670053572
CPL OIL FILTER CARTRIDGE
Bespoke Engine Number 0 - 1000119; 		- 1 Enquire
13 670053958
OIL FILTER 		- 1 Enquire
14 670052849
OIL FILTER
ARRIVING SOON 		- 1 Enquire
15 670050119
GASKET 		- 1 Enquire
16 670053348
OIL PRESSURE SENSOR 		- 1 Enquire
17 675001199
GASKET 		- 1 Enquire
18 675001201
GASKET 		- 1 Enquire
19 670051108
SCREW 		- 2 Enquire
20 673014039
GASKET 		- 1 Enquire
21 673014518
GASKET 		- 2 Enquire
22 673014519
GASKET 		- 2 Enquire
23 11060276
CIRCLIP (SEEGER-RING) 		- 1 Enquire
