INTERCOOLER SYSTEM of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

View All

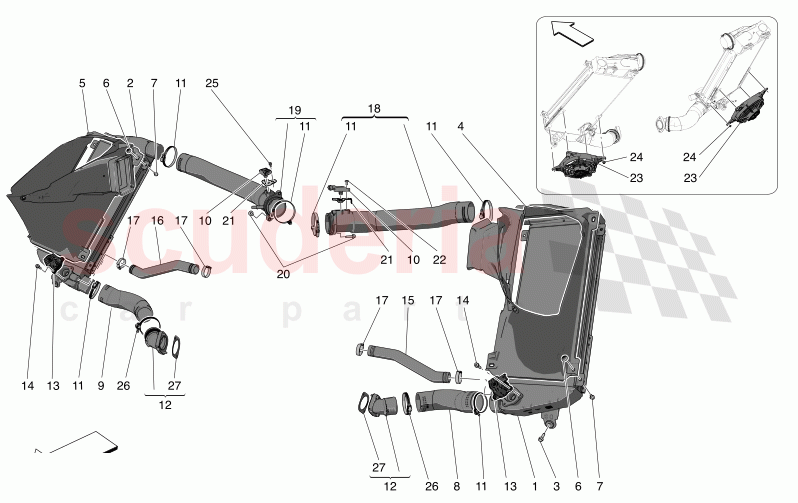

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - INTERCOOLER SYSTEM (01321)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670212790	LH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670212793	RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001211	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215624	LH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215625	RH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001357	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670293049	SLEEVE FROM TURBINE TO LH INTERCOOLER	Enquire	To Order
	670156950	SLEEVE FROM TURBINE TO LH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670293054	SLEEVE FROM TURBINE TO RH INTERCOOLER	Enquire	To Order
	670156659	SLEEVE FROM TURBINE TO RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053933	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000362	COLLARD.78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670292987	SLEEVE	Enquire	To Order
	670156669	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001051	MODULAR SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001353	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157013	LH AIR INTAKE SLEEVE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157012	RH AIR INTAKE SLEEVE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001354	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181764	LH CLEAN AIR INTAKE SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181761	RH CLEAN AIR INTAKE SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213188	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051107	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670206492	LH FRONT SEAT BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001427	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051103	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000754	COLLARD.68	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001961	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670212790	LH INTERCOOLER	670212790 LH INTERCOOLER Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
2	670212793	RH INTERCOOLER	670212793 RH INTERCOOLER Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
3	675001211	SCREW	675001211 SCREW	-	6	Enquire
4	670215624	LH SIDE AIR DUCT	670215624 LH SIDE AIR DUCT Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
5	670215625	RH SIDE AIR DUCT	670215625 RH SIDE AIR DUCT Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
6	675001063	NUT	675001063 NUT	-	8	Enquire
7	675001357	SCREW	675001357 SCREW	-	8	Enquire
8	670293049	SLEEVE FROM TURBINE TO LH INTERCOOLER	670293049 SLEEVE FROM TURBINE TO LH INTERCOOLER WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7001566 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
8	670156950	SLEEVE FROM TURBINE TO LH INTERCOOLER	670156950 SLEEVE FROM TURBINE TO LH INTERCOOLER Bespoke Assembly Number 0 - 7001565;	-	1	Enquire
9	670293054	SLEEVE FROM TURBINE TO RH INTERCOOLER	670293054 SLEEVE FROM TURBINE TO RH INTERCOOLER WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7001566 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
9	670156659	SLEEVE FROM TURBINE TO RH INTERCOOLER	670156659 SLEEVE FROM TURBINE TO RH INTERCOOLER Bespoke Assembly Number 0 - 7001565;	-	1	Enquire
10	670053933	PRESSURE SENSOR	670053933 PRESSURE SENSOR	-	2	Enquire
11	675000362	COLLARD.78	675000362 COLLARD.78	-	6	Enquire
12	670292987	SLEEVE	670292987 SLEEVE Bespoke Assembly Number 7001566 - 99999999;	-	2	Enquire
12	670156669	SLEEVE	670156669 SLEEVE Bespoke Assembly Number 0 - 7001565;	-	2	Enquire
13	675001051	MODULAR SOLENOID VALVE	675001051 MODULAR SOLENOID VALVE	-	2	Enquire
14	675001353	SCREW	675001353 SCREW	-	6	Enquire
15	670157013	LH AIR INTAKE SLEEVE ASSEMBLY	670157013 LH AIR INTAKE SLEEVE ASSEMBLY Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
16	670157012	RH AIR INTAKE SLEEVE ASSEMBLY	670157012 RH AIR INTAKE SLEEVE ASSEMBLY Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
17	675001354	COLLAR	675001354 COLLAR	-	4	Enquire
18	670181764	LH CLEAN AIR INTAKE SLEEVE	670181764 LH CLEAN AIR INTAKE SLEEVE Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
19	670181761	RH CLEAN AIR INTAKE SLEEVE	670181761 RH CLEAN AIR INTAKE SLEEVE Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
20	675001034	SCREW	675001034 SCREW	-	4	Enquire
21	670213188	BRACKET	670213188 BRACKET	-	2	Enquire
22	670051107	SCREW	670051107 SCREW	-	2	Enquire
23	670206492	LH FRONT SEAT BLACK	670206492 LH FRONT SEAT BLACK	-	2	Enquire
24	675001427	NUT	675001427 NUT	-	8	Enquire
25	670051103	SCREW	670051103 SCREW	-	2	Enquire
26	675000754	COLLARD.68	675000754 COLLARD.68	-	2	Enquire
27	675001961	GASKET	675001961 GASKET	-	2	Enquire
