Fuel Pumps And Connection Lines

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 0143

Find Your Part

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - FUEL PUMPS AND CONNECTION LINES (01431)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670160696 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
670160697 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670156469 FUEL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
670296126 DELIVERY PIPES ASSEMBLY Enquire To Order
670156467 DELIVERY PIPES ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
675001240 FUEL PUMP ELECTRIC CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
675001186 NUT Enquire To Order
675001241 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675001364 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
675001165 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670174867 FUEL PUMP CABLE Enquire To Order
Photo Part No Description Price (each) Stock
670156484 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670051104 SCREW Enquire To Order
View All

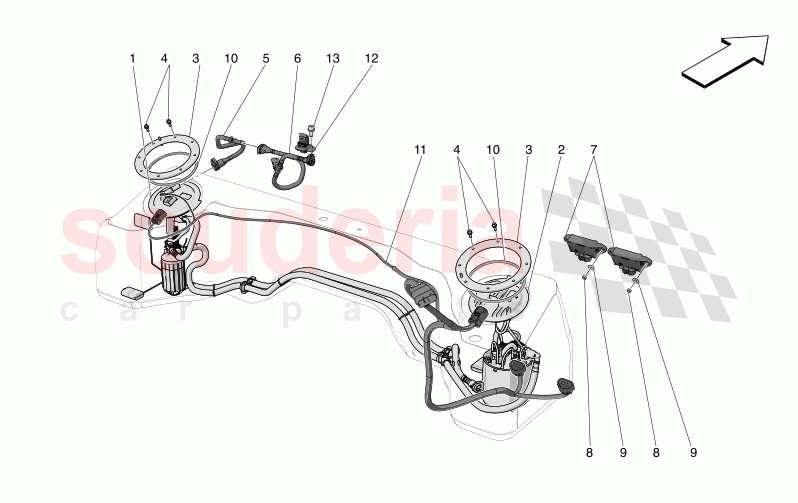

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 670160696
RING NUT 		- 2 Enquire
4 670160697
SCREW 		- 16 Enquire
5 670156469
FUEL DELIVERY PIPE 		- 1 Enquire
6 670296126
DELIVERY PIPES ASSEMBLY
Bespoke Assembly Number 7001365 - 99999999; 		- 1 Enquire
6 670156467
DELIVERY PIPES ASSEMBLY
Bespoke Assembly Number 0 - 7001364; 		- 1 Enquire
7 675001240
FUEL PUMP ELECTRIC CONTROL UNIT 		- 2 Enquire
8 675001186
NUT
Bespoke Assembly Number 7001533 - 99999999; 		- 4 Enquire
8 675001241
NUT
Bespoke Assembly Number 0 - 7001532; 		- 4 Enquire
9 675001364
WASHER 		- 4 Enquire
10 675001165
GASKET 		- 2 Enquire
11 670174867
FUEL PUMP CABLE 		- 1 Enquire
12 670156484
BRACKET 		- 1 Enquire
13 670051104
SCREW 		- 1 Enquire
