ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

View All

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL (01901)

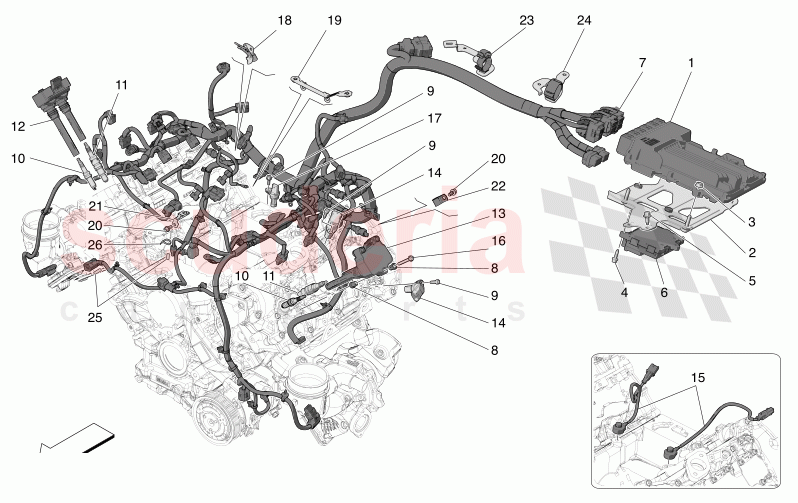

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670174005	IGNITION CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157007	CONTROL UNIT FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051107	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173066	CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670054044	ENGINE INJECTION WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053737	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051106	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053696	SPARK PLUG	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670053816	ANTECHAMBER SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053658	RH HEAD SIDE IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053659	LH HEAD SIDE IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053936	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051424	SENSOR FOR FIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053660	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050181	ANGULAR SPEED SENSOR	Enquire	To Order
	670054301	ANGULAR SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053461	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053321	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051104	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051370	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051479	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181078	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181077	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050329	GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051301	CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670174005	IGNITION CONTROL UNIT	670174005 IGNITION CONTROL UNIT	-	1	Enquire
2	670157007	CONTROL UNIT FIXING BRACKET	670157007 CONTROL UNIT FIXING BRACKET	-	1	Enquire
3	675000969	NUT	675000969 NUT	-	4	Enquire
4	675001312	SCREW	675001312 SCREW	-	3	Enquire
5	670051107	SCREW	670051107 SCREW	-	4	Enquire
6	670173066	CONTROL MODULE	670173066 CONTROL MODULE	-	1	Enquire
7	670054044	ENGINE INJECTION WIRING HARNESS	670054044 ENGINE INJECTION WIRING HARNESS	-	1	Enquire
8	670053737	BUSHING	670053737 BUSHING	-	36	Enquire
9	670051106	SCREW	670051106 SCREW	-	6	Enquire
10	670053696	SPARK PLUG ARRIVING SOON	670053696 SPARK PLUG ARRIVING SOON	-	6	Enquire
11	670053816	ANTECHAMBER SPARK PLUG	670053816 ANTECHAMBER SPARK PLUG	-	6	Enquire
12	670053658	RH HEAD SIDE IGNITION COIL	670053658 RH HEAD SIDE IGNITION COIL	-	3	Enquire
13	670053659	LH HEAD SIDE IGNITION COIL	670053659 LH HEAD SIDE IGNITION COIL	-	3	Enquire
14	670053936	TIMING SENSOR	670053936 TIMING SENSOR	-	4	Enquire
15	670051424	SENSOR FOR FIRING	670051424 SENSOR FOR FIRING	-	2	Enquire
16	670053660	SCREW	670053660 SCREW	-	18	Enquire
17	670050181	ANGULAR SPEED SENSOR	670050181 ANGULAR SPEED SENSOR Bespoke Assembly Number 0 - 7001480;	-	1	Enquire
17	670054301	ANGULAR SPEED SENSOR	670054301 ANGULAR SPEED SENSOR Bespoke Assembly Number 7001481 - 99999999;	-	1	Enquire
18	670053461	BRACKET	670053461 BRACKET	-	1	Enquire
19	670053321	BRACKET	670053321 BRACKET	-	1	Enquire
20	670051104	SCREW	670051104 SCREW	-	2	Enquire
21	670051370	BRACKET	670051370 BRACKET	-	1	Enquire
22	670051479	BRACKET	670051479 BRACKET	-	1	Enquire
23	670181078	BRACKET	670181078 BRACKET	-	1	Enquire
24	670181077	BRACKET	670181077 BRACKET	-	1	Enquire
25	670050329	GUIDE	670050329 GUIDE	-	2	Enquire
26	670051301	CLAMP	670051301 CLAMP	-	1	Enquire
