COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

View All

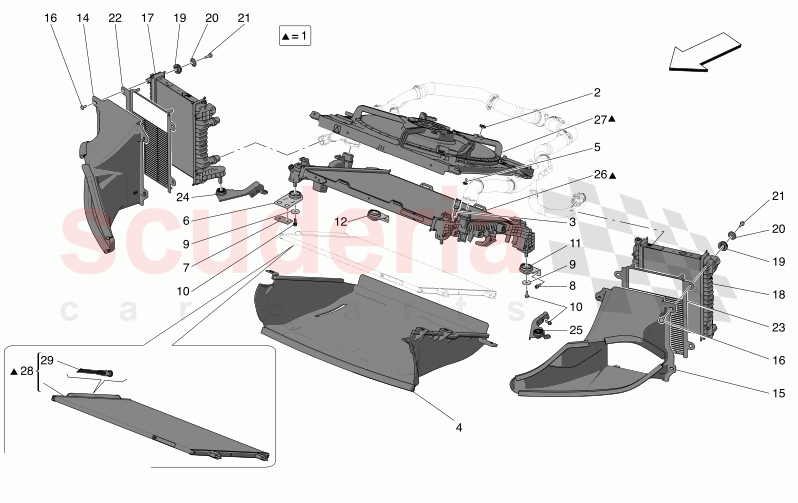

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - COOLING: AIR RADIATORS AND DUCTS (01701)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670160000	COOLING MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001040	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005736	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156538	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001053	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157041	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157461	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001055	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157462	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001357	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158302	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158301	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156539	RH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156540	LH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000354	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001056	RH ENGINE RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001057	LH ENGINE RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000201	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000409	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001048	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001083	RH RADIATOR GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001082	LH RADIATOR GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157045	RH BRACKET	Enquire	To Order
	670309010	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157047	LH BRACKET	Enquire	To Order
	670309013	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160001	WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001213	FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001449	A.C CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012300	DEHYDRATING FILTER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670160000	COOLING MODULE	670160000 COOLING MODULE	-	1	Enquire
2	675001040	PLATE	675001040 PLATE	-	3	Enquire
3	670005736	TEMPERATURE SENSOR	670005736 TEMPERATURE SENSOR	-	1	Enquire
4	670156538	AIR DUCT	670156538 AIR DUCT	-	1	Enquire
5	675001053	SCREW	675001053 SCREW	-	6	Enquire
6	670157041	BRACKET	670157041 BRACKET	-	2	Enquire
7	670157461	PLATE	670157461 PLATE	-	2	Enquire
8	675001055	SCREW	675001055 SCREW	-	4	Enquire
9	670157462	WASHER	670157462 WASHER	-	4	Enquire
10	675001357	SCREW	675001357 SCREW	-	8	Enquire
11	670158302	LH BRACKET	670158302 LH BRACKET	-	1	Enquire
12	670158301	RH BRACKET	670158301 RH BRACKET	-	1	Enquire
14	670156539	RH SIDE AIR DUCT	670156539 RH SIDE AIR DUCT Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
15	670156540	LH SIDE AIR DUCT	670156540 LH SIDE AIR DUCT Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
16	675000354	SCREW	675000354 SCREW	-	8	Enquire
17	675001056	RH ENGINE RADIATOR	675001056 RH ENGINE RADIATOR	-	1	Enquire
18	675001057	LH ENGINE RADIATOR	675001057 LH ENGINE RADIATOR	-	1	Enquire
19	675000201	FLEXIBLE PAD	675000201 FLEXIBLE PAD	-	4	Enquire
20	675000409	CUP	675000409 CUP	-	4	Enquire
21	675001048	SCREW	675001048 SCREW	-	4	Enquire
22	675001083	RH RADIATOR GRILLE	675001083 RH RADIATOR GRILLE	-	1	Enquire
23	675001082	LH RADIATOR GRILLE	675001082 LH RADIATOR GRILLE	-	1	Enquire
24	670157045	RH BRACKET	670157045 RH BRACKET Bespoke Assembly Number 0 - 7003307; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
24	670309010	RH BRACKET	670309010 RH BRACKET Bespoke Assembly Number 7003308 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
25	670157047	LH BRACKET	670157047 LH BRACKET Bespoke Assembly Number 0 - 7003307; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
25	670309013	LH BRACKET	670309013 LH BRACKET Bespoke Assembly Number 7003308 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
26	670160001	WATER RADIATOR	670160001 WATER RADIATOR	-	1	Enquire
27	675001213	FAN	675001213 FAN	-	1	Enquire
28	675001449	A.C CONDENSER	675001449 A.C CONDENSER	-	1	Enquire
29	673012300	DEHYDRATING FILTER KIT	673012300 DEHYDRATING FILTER KIT	-	1	Enquire
