Intake Manifold And Throttle Body

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 0140

Find Your Part

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - INTAKE MANIFOLD AND THROTTLE BODY (01401)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053352 RH INTAKE MANIFOLD ASSEMBLY Enquire To Order
670054056 RH INTAKE MANIFOLD ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670053354 LH INTAKE MANIFOLD ASSEMBLY Enquire To Order
670054058 LH INTAKE MANIFOLD ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670050628 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670051109 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670053933 PRESSURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
675001414 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670051436 UNION Enquire To Order
Photo Part No Description Price (each) Stock
675000670 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670053248 THROTTLE BODY Enquire To Order
Photo Part No Description Price (each) Stock
670051117 SCREW Enquire To Order
View All

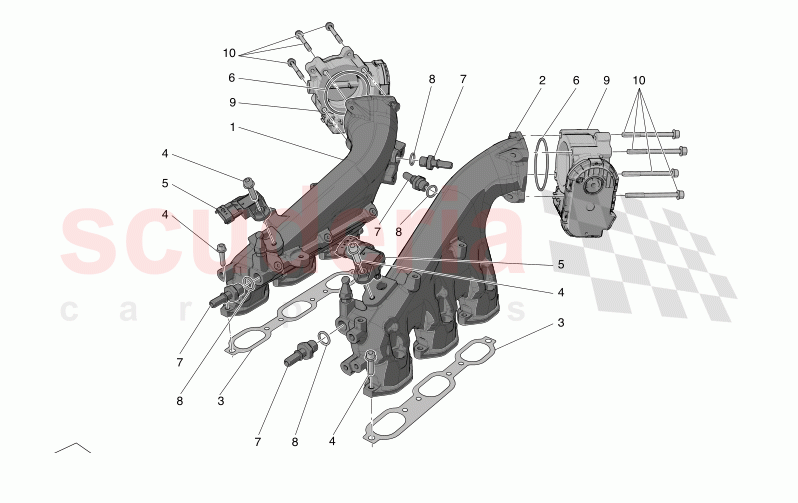

INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053352
RH INTAKE MANIFOLD ASSEMBLY
Bespoke Assembly Number 0 - 7001719; 		- 1 Enquire
1 670054056
RH INTAKE MANIFOLD ASSEMBLY
Bespoke Assembly Number 7001720 - 99999999; 		- 1 Enquire
2 670053354
LH INTAKE MANIFOLD ASSEMBLY
Bespoke Assembly Number 0 - 7001719; 		- 1 Enquire
2 670054058
LH INTAKE MANIFOLD ASSEMBLY
Bespoke Assembly Number 7001720 - 99999999; 		- 1 Enquire
3 670050628
GASKET 		- 2 Enquire
4 670051109
SCREW 		- 14 Enquire
5 670053933
PRESSURE SENSOR 		- 2 Enquire
6 675001414
O.R. GASKET 		- 2 Enquire
7 670051436
UNION 		- 4 Enquire
8 675000670
GASKET 		- 4 Enquire
9 670053248
THROTTLE BODY 		- 2 Enquire
10 670051117
SCREW 		- 8 Enquire
