Main Wiring

Maserati 4200 Spyder (2005-2007) CC

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - MAIN WIRING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200553 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
200550 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
200540 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
Photo Part No Description Price (each) Stock
206640 ENGINE INJECTION WIRING HARNESS $2,592.43 To Order
209653 ENGINE INJECTION WIRING HARNESS $1,366.55 To Order
200104 ENGINE INJECTION WIRING HARNESS $1,259.83 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
210295 DASHBOARD CABLE $2,295.32 To Order
210296 DASHBOARD CABLE $2,335.89 To Order
214703 DASHBOARD CABLE Enquire To Order
Photo Part No Description Price (each) Stock
200501 GPS NAVIGATION WIRING HARNESS $330.92 To Order
Photo Part No Description Price (each) Stock
200490 DOOR WIRING HARNESS $468.62 To Order
Photo Part No Description Price (each) Stock
200544 ROOF LIGHT WIRING HARNESS $54.30 To Order
Photo Part No Description Price (each) Stock
980002018 ELECTRIC INSTALLATION WIRING KIT $1,130.25 To Order
Photo Part No Description Price (each) Stock
200549 FUEL TANK WIRING HARNESS $90.62 To Order
200547 FUEL TANK WIRING HARNESS $158.05 To Order
Photo Part No Description Price (each) Stock
184916 F1 GEARBOX WIRING HARNESS $565.87 To Order
Photo Part No Description Price (each) Stock
210288 F1 GEARBOX WIRING HARNESS $464.52 To Order
Photo Part No Description Price (each) Stock
208909 RH LONGITUDINAL HARNESS $1,663.54 To Order
208911 RH LONGITUDINAL HARNESS $1,677.02 To Order
208910 RH LONGITUDINAL HARNESS $1,524.49 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
200505 BUMPER PARKING SENSOR WIRING HARNESS $383.49 IN STOCK
221029 SIDE MARKERS AND PARKING SENSOR LINKING CABLE $534.79 To Order
Photo Part No Description Price (each) Stock
221028 SIDE MARKER CABLE $672.60 To Order
Photo Part No Description Price (each) Stock
200545 BOOT WIRING HARNESS $80.65 To Order
200546 BOOT WIRING HARNESS $170.66 To Order
Photo Part No Description Price (each) Stock
200648 STOP LIGHT LINKING CABLE $24.34 To Order
View All

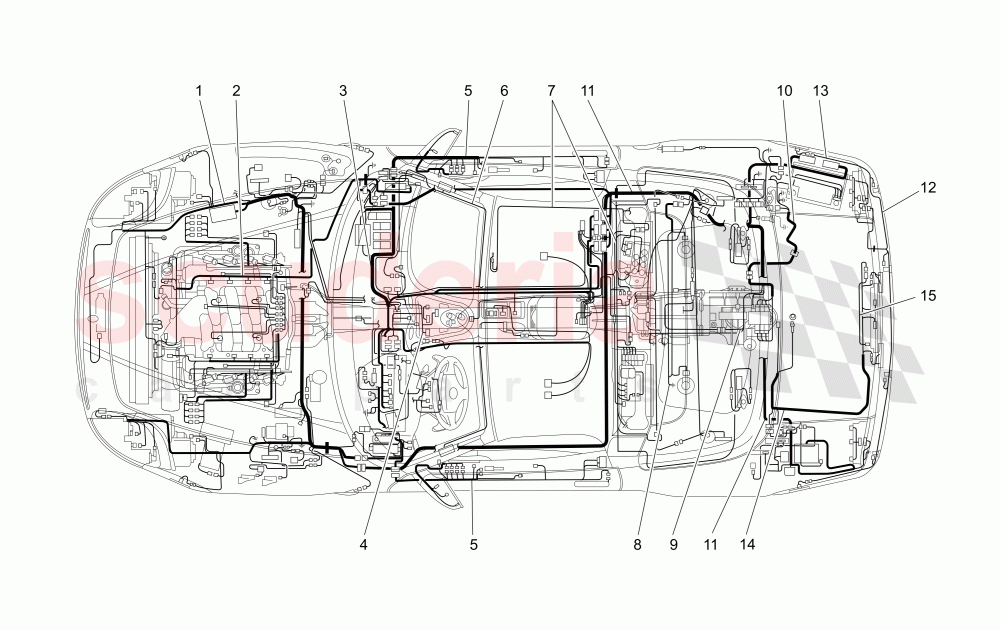

MAIN WIRING of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200553
ENGINE COMPARTMENT WIRING HARNESS
Valid for RHD 		$1,010.03 1
1 200550
ENGINE COMPARTMENT WIRING HARNESS
Valid for USA and CDN 		$1,010.03 1
1 200540
ENGINE COMPARTMENT WIRING HARNESS
Not for USA, CDN and RHD 		$1,010.03 1
2 206640
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for USA and CDN 		$2,592.43 1
2 209653
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for USA and CDN 		$1,366.55 1
2 200104
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for RHD 		$1,259.83 1
2 200103
ENGINE INJECTION WIRING HARNESS
Not for F1- -Not for USA, CDN and RHD 		$1,901.10 1
2 209651
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Not for USA, CDN and RHD 		$1,280.05 1
2 209652
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for RHD 		$1,193.64 1
3 210295
DASHBOARD CABLE
Not for RHD 		$2,295.32 1
3 210296
DASHBOARD CABLE
Valid for RHD- -Valid for cars GB opt. japan version- -Not for cars GB with satellite anti-theft 		$2,335.89 1
3 214703
DASHBOARD CABLE
Valid for GB- -Not for cars GB opt. japan version- -Valid for cars GB with satellite anti-theft 		- 1 Enquire
4 200501
GPS NAVIGATION WIRING HARNESS 		$330.92 1
5 200490
DOOR WIRING HARNESS 		$468.62 2
6 200544
ROOF LIGHT WIRING HARNESS 		$54.30 1
7 980002018
ELECTRIC INSTALLATION WIRING KIT 		$1,130.25 1
8 200549
FUEL TANK WIRING HARNESS
Valid for USA and CDN 		$90.62 1
8 200547
FUEL TANK WIRING HARNESS
Not for USA and CDN 		$158.05 1
9 184916
F1 GEARBOX WIRING HARNESS
Valid for F1 		$565.87 1
10 210288
F1 GEARBOX WIRING HARNESS
Valid for F1 		$464.52 1
11 208909
RH LONGITUDINAL HARNESS
Optional- -Telephone and CD charger- -Not for opt. HI FI system- -Not for USA, CDN, RHD and J 		$1,663.54 1
11 208911
RH LONGITUDINAL HARNESS
Optional- -Telephone and CD charger- -Not for opt. HI FI system- -Valid for RHD 		$1,677.02 1
11 208910
RH LONGITUDINAL HARNESS
Standard- -With arrangement for opt. CD charger- -Valid for RHD 		$1,524.49 1
11 208912
RH LONGITUDINAL HARNESS
Optional- -HI FI system- -Valid for RHD 		$1,762.16 1
11 210298
RH LONGITUDINAL HARNESS
Standard- -With arrangement for opt. CD charger- -Not for RHD 		$1,454.19 1
11 210299
RH LONGITUDINAL HARNESS
Optional- -HI FI system- -Not for RHD 		$1,733.69 1
12 200505
BUMPER PARKING SENSOR WIRING HARNESS
Optional- -Parking sensors- -Not for USA and CDN
IN STOCK 		$383.49 1
12 221029
SIDE MARKERS AND PARKING SENSOR LINKING CABLE
Optional- -Parking sensors- -Valid for USA and CDN 		$534.79 1
13 221028
SIDE MARKER CABLE
Valid for USA and CDN 		$672.60 1
14 200545
BOOT WIRING HARNESS
Standard 		$80.65 1
14 200546
BOOT WIRING HARNESS
Optional- -Telephone- -Not for USA, CDN and J 		$170.66 1
15 200648
STOP LIGHT LINKING CABLE 		$24.34 1
