LIGHT CLUSTERS (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - LIGHT CLUSTERS (Available with: "Spyder 90th Anniversary" Version)

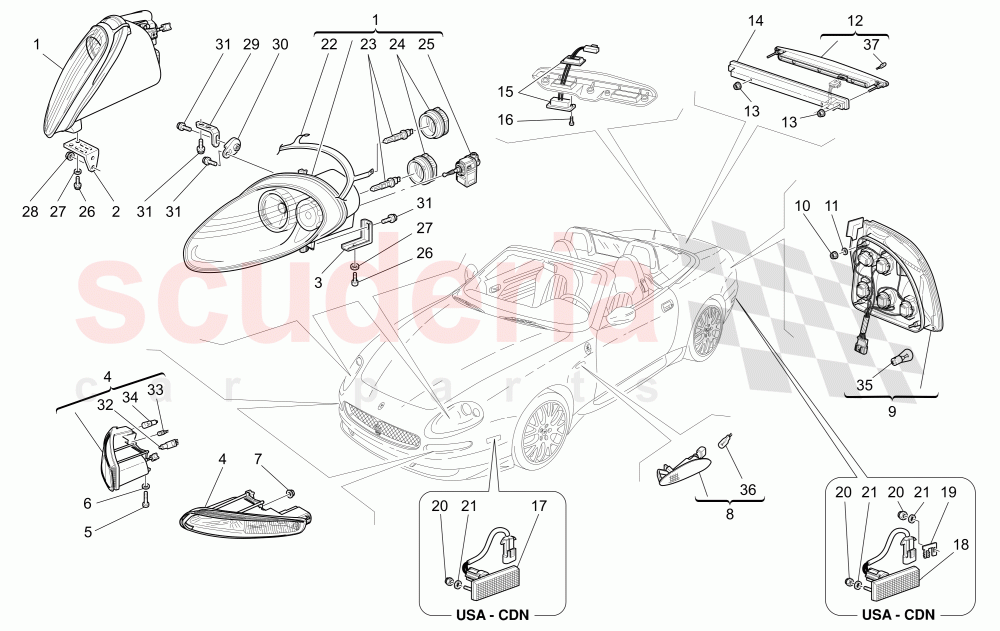

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	210572034	LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	Enquire	To Order
	210572035	LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	Enquire	To Order
	210572049	LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	383100312	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100161	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190715	FOG LAMP/POSITION/L.H. INDICATOR SET	Enquire	To Order
	188042	FOG LAMP/POSITION/L.H. INDICATOR SET	Enquire	To Order
	190714	FOG LAMP/POSITION/R.H. INDICATOR SET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11730924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13046114	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	383100127	SIDE DIRECTION SMALL LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195750	LH REAR TAILLIGHT	Enquire	To Order
	195751	RH REAR TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241531	SUPPLEMENTARY STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66490900	COMPLETE STOP LAMP MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198231	Number Plate Roof Lighting	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147563	FRONT SIDE MARKER LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140594	REAR SIDE-MARKER LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000951	L.H. HEADLAMP EXTERNAL GASKET	Enquire	To Order
	980000952	R.H. Headlamp External Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000953	HEADLIGHT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001141	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000950	HEADLAMP ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER 6.15-15 X 1	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13046114	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66379100	LAMP FIXING UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66320000	LH BRACKET	Enquire	To Order
	66379200	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001167	HEADLIGHT BULB	Enquire	To Order
	980000953	HEADLIGHT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001160	LIGHT POSITION BULB	Enquire	To Order
	980000955	LIGHT POSITION BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000954	DIRECTION LIGHT BULB	Enquire	To Order
	980001167	HEADLIGHT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87720021	BULB 21 W.	Enquire	To Order
	87720521	TWO LIGHT BULB 5/21 W.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001160	LIGHT POSITION BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100502	STOP LAMP BULB	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	210572034	LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	210572034 LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Valid for USA and CDN	-	1	Enquire
1	210572035	LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	210572035 LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Valid for USA and CDN	-	1	Enquire
1	210572049	LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	210572049 LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Valid for USA and CDN	-	1	Enquire
1	208126034	LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	208126034 LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Not for USA, CDN, RHD and J	-	1	Enquire
1	208126035	LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 IN STOCK	208126035 LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Not for USA, CDN, RHD and J IN STOCK	-	1	Enquire
1	208126049	LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	208126049 LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Not for USA, CDN, RHD and J	-	1	Enquire
1	209681034	LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	209681034 LH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Valid for RHD and J	-	1	Enquire
1	209681035	LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	209681035 LH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Valid for RHD and J	-	1	Enquire
1	209681049	LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	209681049 LH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Valid for RHD and J	-	1	Enquire
1	210570034	RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	210570034 RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Valid for USA and CDN	-	1	Enquire
1	210570035	RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	210570035 RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Valid for USA and CDN	-	1	Enquire
1	210570049	RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	210570049 RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Valid for USA and CDN	-	1	Enquire
1	208125034	RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	208125034 RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Not for USA, CDN, RHD and J	-	1	Enquire
1	208125035	RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	208125035 RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Not for USA, CDN, RHD and J	-	1	Enquire
1	208125049	RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	208125049 RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Not for USA, CDN, RHD and J	-	1	Enquire
1	209679034	RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500	209679034 RH HEADLIGHT - NERO CARBONIO (Cod. PPG 226520) (CARBON BLACK (Code PPG 226520)) - 68171500 Valid for RHD and J	-	1	Enquire
1	209679035	RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300	209679035 RH HEADLIGHT - GRIGIO TOURING (Cod. PPG 226689 - 238641) (TOURING GREY (Cod. PPG 226689 - 238641)) - 68172100 - 68589300 Valid for RHD and J	-	1	Enquire
1	209679049	RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY)	209679049 RH HEADLIGHT - GRIGIO TEXTURE (TEXTURE GREY) Valid for RHD and J	-	1	Enquire
2	383100312	FRONT BRACKET	383100312 FRONT BRACKET	-	2	Enquire
3	383100161	REAR BRACKET	383100161 REAR BRACKET	-	2	Enquire
4	190715	FOG LAMP/POSITION/L.H. INDICATOR SET	190715 FOG LAMP/POSITION/L.H. INDICATOR SET Valid for USA and CDN	-	1	Enquire
4	188042	FOG LAMP/POSITION/L.H. INDICATOR SET	188042 FOG LAMP/POSITION/L.H. INDICATOR SET Not for USA and CDN	-	1	Enquire
4	190714	FOG LAMP/POSITION/R.H. INDICATOR SET	190714 FOG LAMP/POSITION/R.H. INDICATOR SET Valid for USA and CDN	-	1	Enquire
4	188041	FOG LAMP/POSITION/R.H. INDICATOR SET	188041 FOG LAMP/POSITION/R.H. INDICATOR SET Not for USA and CDN	-	1	Enquire
5	11730924	SCREW	11730924 SCREW	-	2	Enquire
6	12643724	Washer 6.15-18x1.5 ARRIVING SOON	12643724 Washer 6.15-18x1.5 ARRIVING SOON	-	2	Enquire
7	13046114	NUT IN STOCK	13046114 NUT IN STOCK	-	2	Enquire
8	383100127	SIDE DIRECTION SMALL LAMP	383100127 SIDE DIRECTION SMALL LAMP	-	2	Enquire
9	195750	LH REAR TAILLIGHT	195750 LH REAR TAILLIGHT	-	1	Enquire
9	195751	RH REAR TAILLIGHT	195751 RH REAR TAILLIGHT	-	1	Enquire
10	13046011	NUT	13046011 NUT M5	-	6	Enquire
11	12638124	WASHER	12638124 WASHER	-	6	Enquire
12	241531	SUPPLEMENTARY STOP LIGHT	241531 SUPPLEMENTARY STOP LIGHT	-	1	Enquire
13	87940800	NUT	87940800 NUT	-	2	Enquire
14	66490900	COMPLETE STOP LAMP MOULDING	66490900 COMPLETE STOP LAMP MOULDING	-	1	Enquire
15	198231	Number Plate Roof Lighting IN STOCK	198231 Number Plate Roof Lighting IN STOCK	-	2	Enquire
16	15901575	SCREW	15901575 SCREW	-	4	Enquire
17	147563	FRONT SIDE MARKER LAMP	147563 FRONT SIDE MARKER LAMP Valid for USA and CDN	-	2	Enquire
18	140594	REAR SIDE-MARKER LAMP	140594 REAR SIDE-MARKER LAMP Valid for USA and CDN	-	2	Enquire
19	155751	CLIP	155751 CLIP Valid for USA and CDN	-	2	Enquire
20	14084111	NUT IN STOCK	14084111 NUT Valid for USA and CDN IN STOCK	-	8	Enquire
21	12638124	WASHER	12638124 WASHER Valid for USA and CDN	-	8	Enquire
22	980000951	L.H. HEADLAMP EXTERNAL GASKET	980000951 L.H. HEADLAMP EXTERNAL GASKET	-	1	Enquire
22	980000952	R.H. Headlamp External Gasket	980000952 R.H. Headlamp External Gasket	-	1	Enquire
23	980000953	HEADLIGHT BULB	980000953 HEADLIGHT BULB	-	4	Enquire
24	980001141	CAP	980001141 CAP	-	4	Enquire
25	980000950	HEADLAMP ACTUATOR	980000950 HEADLAMP ACTUATOR	-	2	Enquire
26	11730924	SCREW	11730924 SCREW	-	4	Enquire
27	12644424	WASHER 6.15-15 X 1 IN STOCK	12644424 WASHER 6.15-15 X 1 IN STOCK	-	4	Enquire
28	13046114	NUT IN STOCK	13046114 NUT IN STOCK	-	4	Enquire
29	66379100	LAMP FIXING UPPER BRACKET	66379100 LAMP FIXING UPPER BRACKET	-	2	Enquire
30	66320000	LH BRACKET	66320000 LH BRACKET	-	1	Enquire
30	66379200	RH BRACKET	66379200 RH BRACKET	-	1	Enquire
31	11730624	SCREW	11730624 SCREW	-	10	Enquire
32	980001167	HEADLIGHT BULB	980001167 HEADLIGHT BULB Valid for USA and CDN	-	2	Enquire
32	980000953	HEADLIGHT BULB	980000953 HEADLIGHT BULB Not for USA and CDN	-	2	Enquire
33	980001160	LIGHT POSITION BULB	980001160 LIGHT POSITION BULB Valid for USA and CDN	-	2	Enquire
33	980000955	LIGHT POSITION BULB	980000955 LIGHT POSITION BULB Not for USA and CDN	-	2	Enquire
34	980000954	DIRECTION LIGHT BULB	980000954 DIRECTION LIGHT BULB Not for USA and CDN	-	2	Enquire
34	980001167	HEADLIGHT BULB	980001167 HEADLIGHT BULB Valid for USA and CDN	-	2	Enquire
35	87720021	BULB 21 W.	87720021 BULB 21 W.	-	8	Enquire
35	87720521	TWO LIGHT BULB 5/21 W.	87720521 TWO LIGHT BULB 5/21 W.	-	2	Enquire
36	980001160	LIGHT POSITION BULB	980001160 LIGHT POSITION BULB	-	2	Enquire
37	383100502	STOP LAMP BULB	383100502 STOP LAMP BULB	-	10	Enquire
