ELECTRICAL CAPOTE: STRUCTURE (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - ELECTRICAL CAPOTE: STRUCTURE (Available with: "Spyder 90th Anniversary" Version)

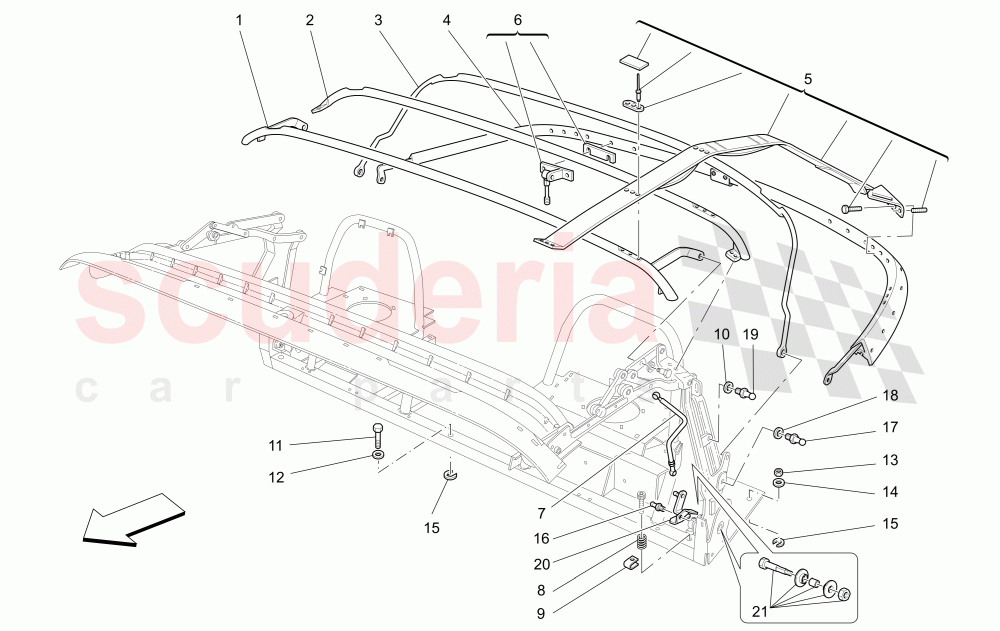

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66103600	FRONT MOVABLE RIB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67240800	CENTRAL RIB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67519100	REAR RIB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67518000	BOW ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002020	BELTS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002019	PULL DOWN KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66604400	L.H. TIE ROD FOR CAPOTE LEVERS DOOR	Enquire	To Order
	66604300	R.H. TIE ROD FOR CAPOTE LEVERS DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66319500	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66319400	SPRING FASTENING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67641900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377030378	WASHER	Enquire	To Order
	377030379	WASHER	Enquire	To Order
	377030380	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66609200	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67377400	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66649400	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66604600	L.H. LEVER FOR CAPOTE DOOR MOVEMENT	Enquire	To Order
	66604500	R.H. LEVER FOR CAPOTE DOOR MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138221	LEVER MOVEMENT PIN KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66103600	FRONT MOVABLE RIB	66103600 FRONT MOVABLE RIB	-	1	Enquire
2	67240800	CENTRAL RIB	67240800 CENTRAL RIB	-	1	Enquire
3	67519100	REAR RIB	67519100 REAR RIB	-	1	Enquire
4	67518000	BOW ASSEMBLY	67518000 BOW ASSEMBLY	-	1	Enquire
5	980002020	BELTS KIT	980002020 BELTS KIT	-	1	Enquire
6	980002019	PULL DOWN KIT	980002019 PULL DOWN KIT	-	1	Enquire
7	66604400	L.H. TIE ROD FOR CAPOTE LEVERS DOOR	66604400 L.H. TIE ROD FOR CAPOTE LEVERS DOOR	-	1	Enquire
7	66604300	R.H. TIE ROD FOR CAPOTE LEVERS DOOR	66604300 R.H. TIE ROD FOR CAPOTE LEVERS DOOR	-	1	Enquire
8	66319500	SPRING	66319500 SPRING	-	1	Enquire
9	66319400	SPRING FASTENING PLATE	66319400 SPRING FASTENING PLATE	-	1	Enquire
10	67641900	WASHER	67641900 WASHER	-	2	Enquire
11	16044424	SCREW	16044424 SCREW	-	4	Enquire
12	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	-	4	Enquire
13	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
14	12647021	WASHER	12647021 WASHER	-	4	Enquire
15	377030378	WASHER	377030378 WASHER Thickness mm. 0,50	-	-	Enquire
15	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	-	-	Enquire
15	377030380	WASHER	377030380 WASHER Thickness mm. 1,00	-	-	Enquire
15	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	-	-	Enquire
15	377030382	WASHER	377030382 WASHER Thickness mm. 3,00	-	-	Enquire
16	66609200	PIN	66609200 PIN	-	2	Enquire
17	67377400	PIN	67377400 PIN	-	2	Enquire
18	84653800	WASHER	84653800 WASHER	-	4	Enquire
19	66649400	PIN	66649400 PIN	-	2	Enquire
20	66604600	L.H. LEVER FOR CAPOTE DOOR MOVEMENT	66604600 L.H. LEVER FOR CAPOTE DOOR MOVEMENT	-	1	Enquire
20	66604500	R.H. LEVER FOR CAPOTE DOOR MOVEMENT	66604500 R.H. LEVER FOR CAPOTE DOOR MOVEMENT	-	1	Enquire
21	980138221	LEVER MOVEMENT PIN KIT	980138221 LEVER MOVEMENT PIN KIT	-	4	Enquire
22	66118800	CAPOTE ARC PLATE	66118800 CAPOTE ARC PLATE	-	2	Enquire
