ELECTRICAL CAPOTE: HYDRAULIC SYSTEM of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

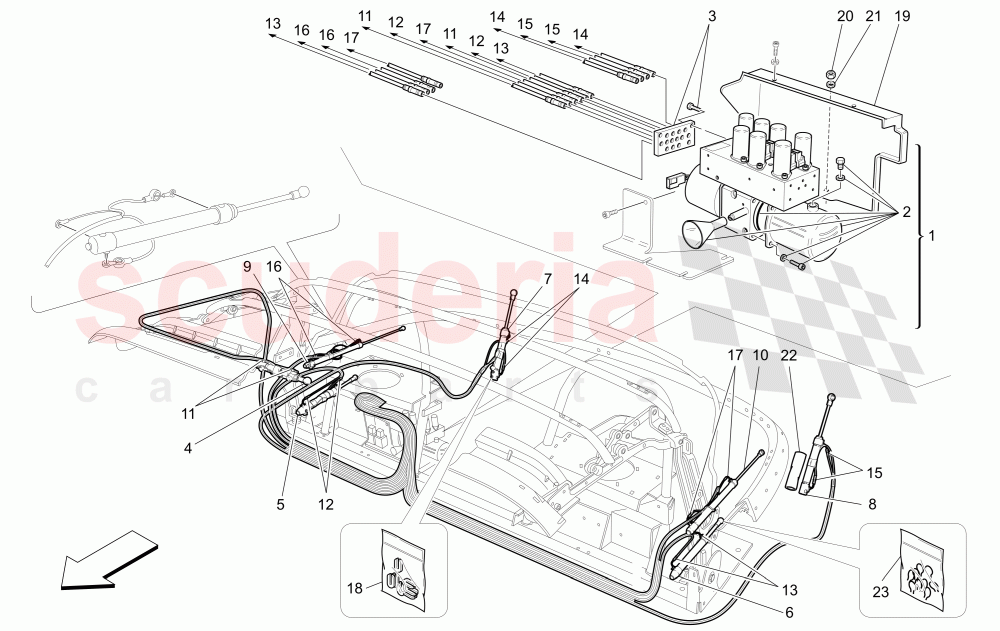

Maserati 4200 Spyder (2005-2007) CC - ELECTRICAL CAPOTE: HYDRAULIC SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66106400	COMPLETE ELECTROHYDRAULIC GROUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001092	OIL TANK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001093	PIPES FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66662600	FRONT CROSS MEMBER HYDRAULIC CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115400	RH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115500	LH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115600	RH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115700	LH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115800	RH HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66115900	L.H. HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002002	FRONT CROSS MEMBER OIL CYLINDER PIPES KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002003	R.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002004	L.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002005	R.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002006	L.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002007	R.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002008	L.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001094	PIPES FIXING CLIP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66956400	CAPOTE PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896472	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002015	SHEATHS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980002017	RINGS KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66106400	COMPLETE ELECTROHYDRAULIC GROUP	66106400 COMPLETE ELECTROHYDRAULIC GROUP	-	1	Enquire
2	980001092	OIL TANK KIT	980001092 OIL TANK KIT	-	1	Enquire
3	980001093	PIPES FIXING PLATE	980001093 PIPES FIXING PLATE	-	1	Enquire
4	66662600	FRONT CROSS MEMBER HYDRAULIC CYLINDER	66662600 FRONT CROSS MEMBER HYDRAULIC CYLINDER	-	1	Enquire
5	66115400	RH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	66115400 RH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	-	1	Enquire
6	66115500	LH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	66115500 LH HYDROELECTRIC CYLINDER FOR SOFT TOP MOVEMENT	-	1	Enquire
7	66115600	RH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	66115600 RH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	-	1	Enquire
8	66115700	LH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	66115700 LH HYDROELECTRIC CYLINDER FOR COVER MOVEMENT	-	1	Enquire
9	66115800	RH HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	66115800 RH HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	-	1	Enquire
10	66115900	L.H. HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	66115900 L.H. HYDROELECTRIC CYLINDER FOR ARCH MOVEMENT	-	1	Enquire
11	980002002	FRONT CROSS MEMBER OIL CYLINDER PIPES KIT	980002002 FRONT CROSS MEMBER OIL CYLINDER PIPES KIT	-	1	Enquire
12	980002003	R.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	980002003 R.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
13	980002004	L.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	980002004 L.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
14	980002005	R.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	980002005 R.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
15	980002006	L.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	980002006 L.H. COVER MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
16	980002007	R.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	980002007 R.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
17	980002008	L.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	980002008 L.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT	-	1	Enquire
18	980001094	PIPES FIXING CLIP KIT	980001094 PIPES FIXING CLIP KIT	-	1	Enquire
19	66956400	CAPOTE PUMP COVER	66956400 CAPOTE PUMP COVER	-	1	Enquire
20	15896472	NUT	15896472 NUT M5	-	2	Enquire
21	13577778	WASHER	13577778 WASHER D. 5,45-15X1,2	-	2	Enquire
22	980002015	SHEATHS KIT	980002015 SHEATHS KIT	-	1	Enquire
23	980002017	RINGS KIT	980002017 RINGS KIT	-	1	Enquire
