Name: ELECTRICAL CAPOTE: STRUCTURE
Rating: 5.0 (1 reviews)

ELECTRICAL CAPOTE: STRUCTURE of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - ELECTRICAL CAPOTE: STRUCTURE

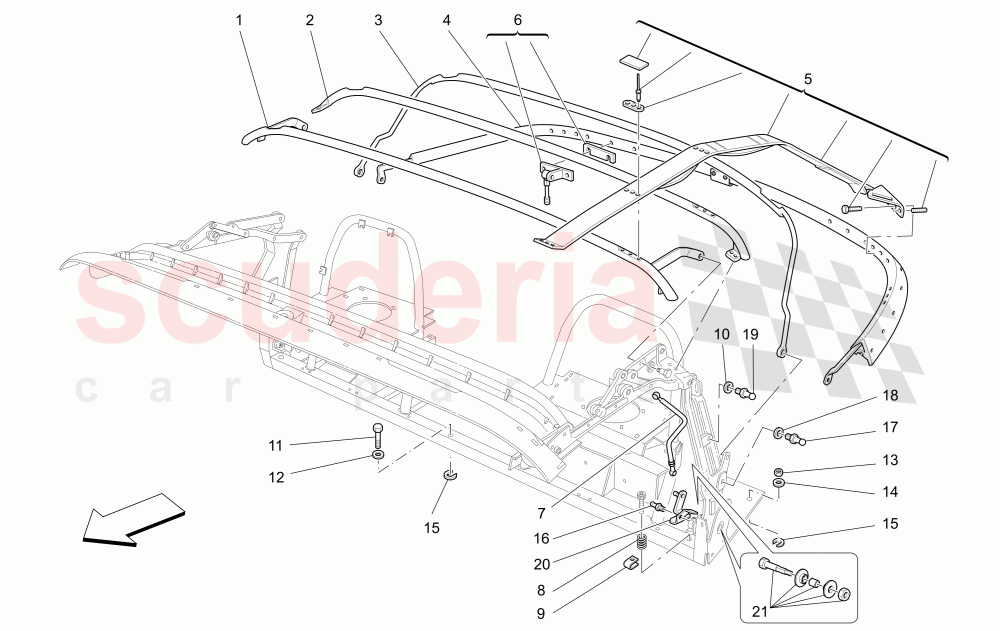

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66103600	FRONT MOVABLE RIB	$337.57	To Order

Photo	Part No	Description	Price (each)	Stock
	67240800	CENTRAL RIB	$239.42	To Order

Photo	Part No	Description	Price (each)	Stock
	67519100	REAR RIB	$447.05	To Order

Photo	Part No	Description	Price (each)	Stock
	67518000	BOW ASSEMBLY	$1,546.78	To Order

Photo	Part No	Description	Price (each)	Stock
	980002020	BELTS KIT	$701.21	To Order

Photo	Part No	Description	Price (each)	Stock
	980002019	PULL DOWN KIT	$222.97	To Order

Photo	Part No	Description	Price (each)	Stock
	66604400	L.H. TIE ROD FOR CAPOTE LEVERS DOOR	$579.70	To Order
	66604300	R.H. TIE ROD FOR CAPOTE LEVERS DOOR	$579.70	To Order

Photo	Part No	Description	Price (each)	Stock
	66319500	SPRING	$12.88	To Order

Photo	Part No	Description	Price (each)	Stock
	66319400	SPRING FASTENING PLATE	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	67641900	WASHER	$25.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	377030378	WASHER	$5.79	To Order
	377030379	WASHER	$7.04	To Order
	377030380	WASHER	$31.42	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66609200	PIN	$172.86	To Order

Photo	Part No	Description	Price (each)	Stock
	67377400	PIN	$23.10	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66649400	PIN	$84.81	To Order

Photo	Part No	Description	Price (each)	Stock
	66604600	L.H. LEVER FOR CAPOTE DOOR MOVEMENT	$105.81	To Order
	66604500	R.H. LEVER FOR CAPOTE DOOR MOVEMENT	$105.81	To Order

Photo	Part No	Description	Price (each)	Stock
	980138221	LEVER MOVEMENT PIN KIT	$423.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66103600	FRONT MOVABLE RIB	66103600 FRONT MOVABLE RIB	$337.57	1
2	67240800	CENTRAL RIB	67240800 CENTRAL RIB	$239.42	1
3	67519100	REAR RIB	67519100 REAR RIB	$447.05	1
4	67518000	BOW ASSEMBLY	67518000 BOW ASSEMBLY	$1,546.78	1
5	980002020	BELTS KIT	980002020 BELTS KIT	$701.21	1
6	980002019	PULL DOWN KIT	980002019 PULL DOWN KIT	$222.97	1
7	66604400	L.H. TIE ROD FOR CAPOTE LEVERS DOOR	66604400 L.H. TIE ROD FOR CAPOTE LEVERS DOOR	$579.70	1
7	66604300	R.H. TIE ROD FOR CAPOTE LEVERS DOOR	66604300 R.H. TIE ROD FOR CAPOTE LEVERS DOOR	$579.70	1
8	66319500	SPRING	66319500 SPRING	$12.88	1
9	66319400	SPRING FASTENING PLATE	66319400 SPRING FASTENING PLATE	$5.31	1
10	67641900	WASHER	67641900 WASHER	$25.78	2
11	16044424	SCREW	16044424 SCREW	$2.39	4
12	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	$1.62	4
13	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	$2.05	4
14	12647021	WASHER	12647021 WASHER	$2.00	4
15	377030378	WASHER	377030378 WASHER Thickness mm. 0,50	$5.79	-
15	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	$7.04	-
15	377030380	WASHER	377030380 WASHER Thickness mm. 1,00	$31.42	-
15	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	$7.04	-
15	377030382	WASHER	377030382 WASHER Thickness mm. 3,00	$8.31	-
16	66609200	PIN	66609200 PIN	$172.86	2
17	67377400	PIN	67377400 PIN	$23.10	2
18	84653800	WASHER	84653800 WASHER	-	4	Enquire
19	66649400	PIN	66649400 PIN	$84.81	2
20	66604600	L.H. LEVER FOR CAPOTE DOOR MOVEMENT	66604600 L.H. LEVER FOR CAPOTE DOOR MOVEMENT	$105.81	1
20	66604500	R.H. LEVER FOR CAPOTE DOOR MOVEMENT	66604500 R.H. LEVER FOR CAPOTE DOOR MOVEMENT	$105.81	1
21	980138221	LEVER MOVEMENT PIN KIT	980138221 LEVER MOVEMENT PIN KIT	$423.17	4
22	66118800	CAPOTE ARC PLATE	66118800 CAPOTE ARC PLATE	$97.03	2
