DOOR LOCK of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - DOOR LOCK

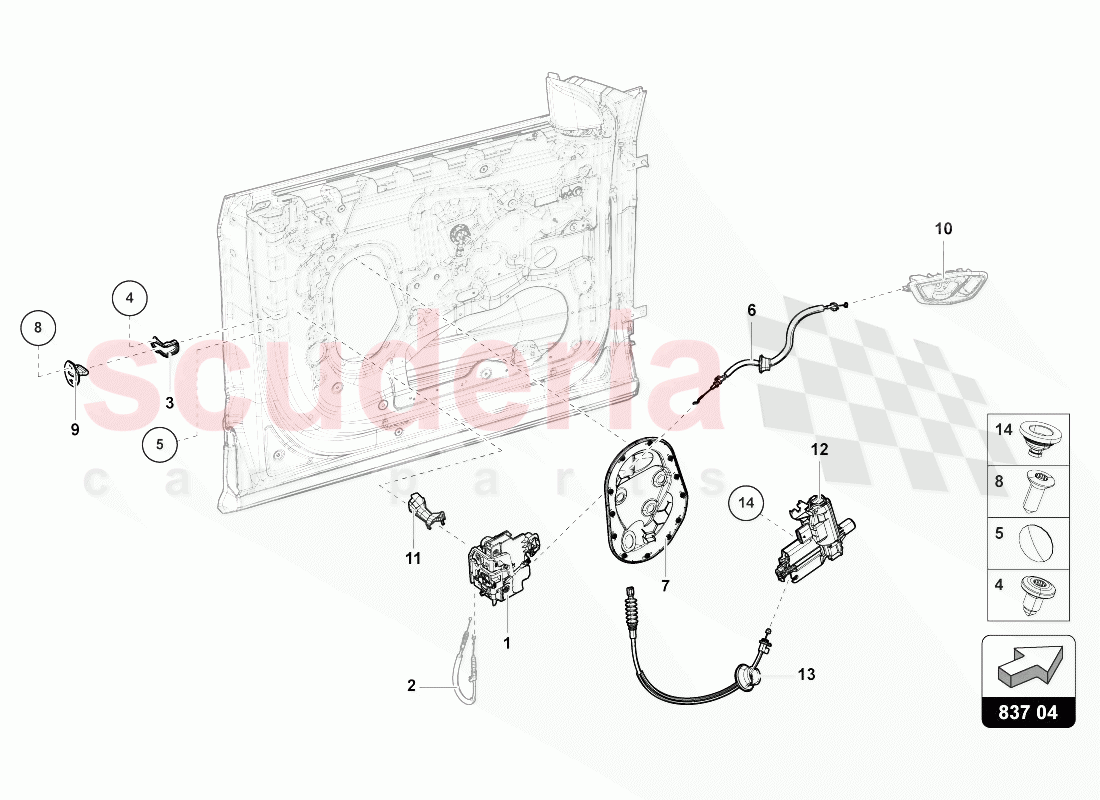

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4K1837016J	DOOR LOCK	Enquire	To Order
	4K1837015K	DOOR LOCK	Enquire	To Order
	4K1837016K	DOOR LOCK	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
		BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML837087	UNDERLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003348A	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0837111	COVER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4ML837085	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0837103C	COVER FOR DOOR INNER PANEL	Enquire	To Order
	4M0837104C	COVER FOR DOOR INNER PANEL	Enquire	To Order
	4M0837915A	COVER FOR DOOR INNER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91017402	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0837033A	LOCK STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML837349	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0837059	DRIVE UNIT	Enquire	To Order
	4N0837060	DRIVE UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8837315	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0837311	MOUNTING BUFFER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4K1837016J	DOOR LOCK	4K1837016J DOOR LOCK MANUALLY OPERATED DOOR - KEYLESS ENTRY W/O SAFELOCK-RIGHT LHD-RIGHT LHD	-	1	Enquire
1	4K1837015K	DOOR LOCK	4K1837015K DOOR LOCK DOOR POWER- LATCHING - WITH SAFELOCK-DRIVER SIDE LHD	-	-	Enquire
1	4K1837016K	DOOR LOCK	4K1837016K DOOR LOCK DOOR POWER- LATCHING - WITH SAFELOCK-PASSENGER SIDE LHD	-	-	Enquire
1	4K1837015H	DOOR LOCK	4K1837015H DOOR LOCK MANUALLY OPERATED DOOR - KEYLESS ENTRY-LEFT LHD-LEFT LHD	-	1	Enquire
1	4K1837016H	DOOR LOCK	4K1837016H DOOR LOCK MANUALLY OPERATED DOOR - KEYLESS ENTRY-RIGHT LHD-RIGHT LHD	-	1	Enquire
1	4K1837015J	DOOR LOCK	4K1837015J DOOR LOCK MANUALLY OPERATED DOOR - KEYLESS ENTRY W/O SAFELOCK-LEFT LHD-LEFT LHD	-	1	Enquire
2	-	BOWDEN CABLE	BOWDEN CABLE SEE ILLUSTRATION :- 837-030	-	-	Enquire
3	4ML837087	UNDERLAY	4ML837087 UNDERLAY	-	2	Enquire
4	WHT003348A	OVAL HEXAGON SOCKET HEAD BOLT	WHT003348A OVAL HEXAGON SOCKET HEAD BOLT M8X14	-	4	Enquire
5	4H0837111	COVER CAP IN STOCK	4H0837111 COVER CAP 14,2 IN STOCK	-	-	Enquire
6	4ML837085	BOWDEN CABLE	4ML837085 BOWDEN CABLE	-	1	Enquire
7	4M0837103C	COVER FOR DOOR INNER PANEL	4M0837103C COVER FOR DOOR INNER PANEL 8 PASSIVE SPEAKERS-LEFT FRONT-LEFT FRONT	-	1	Enquire
7	4M0837104C	COVER FOR DOOR INNER PANEL	4M0837104C COVER FOR DOOR INNER PANEL 8 PASSIVE SPEAKERS-RIGHT FRONT-RIGHT FRONT	-	1	Enquire
7	4M0837915A	COVER FOR DOOR INNER PANEL	4M0837915A COVER FOR DOOR INNER PANEL MANUALLY OPERATED DOOR-LEFT FRONT-LEFT FRONT	-	1	Enquire
7	4M0837916A	COVER FOR DOOR INNER PANEL	4M0837916A COVER FOR DOOR INNER PANEL MANUALLY OPERATED DOOR-RIGHT FRONT-RIGHT FRONT	-	1	Enquire
8	N91017402	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT IN STOCK	N91017402 COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT M8X22 IN STOCK	-	4	Enquire
9	4M0837033A	LOCK STRIKER	4M0837033A LOCK STRIKER	-	2	Enquire
10	-	LOCK	LOCK SEE ILLUSTRATION : 867.01	-	-	Enquire
11	4ML837349	COVER	4ML837349 COVER LEFT-LEFT	-	1	Enquire
12	4N0837059	DRIVE UNIT	4N0837059 DRIVE UNIT DOOR POWER- LATCHING-LEFT	-	-	Enquire
12	4N0837060	DRIVE UNIT	4N0837060 DRIVE UNIT DOOR POWER- LATCHING-RIGHT	-	1	Enquire
13	4M8837315	BOWDEN CABLE	4M8837315 BOWDEN CABLE DOOR POWER- LATCHIN-FRONT	-	-	Enquire
14	4N0837311	MOUNTING BUFFER	4N0837311 MOUNTING BUFFER	-	-	Enquire
