UNDERBODY of Lamborghini Lamborghini Urus (2018-2019)

View All

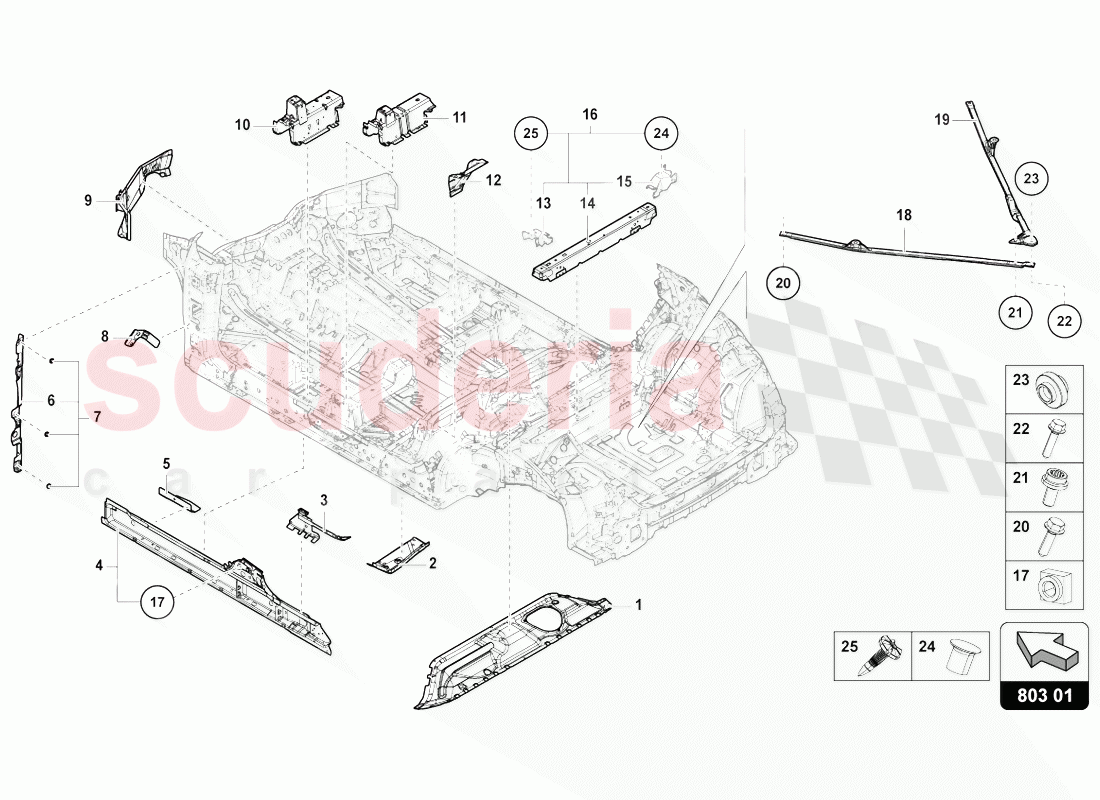

Lamborghini Urus (2018-2019) - UNDERBODY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0803093F	BOTTOM PLATE	$239.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803729	EXTENSION	$60.28	To Order
	4M0803730	EXTENSION	$60.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803135E	CLOSING ELEMENT	$79.46	To Order
	4M0803136E	CLOSING ELEMENT	$79.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803779AF	SIDE MEMBER	$262.10	To Order
	4M0803780AF	SIDE MEMBER	$262.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803433D	REINFORCEMENT	$4.31	To Order
	4M0803434A	REINFORCEMENT	$11.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML803857A	ARM	$407.26	To Order
	4ML803858A	ARM	$407.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML803415A	CLAMPING BRACKET	$422.04	To Order
	4ML803416A	CLAMPING BRACKET	$422.04	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML803041A	ARM	$272.84	To Order
	4ML803042A	ARM	$272.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803099	CLOSING ELEMENT	$175.39	To Order
	4M0803100	CLOSING ELEMENT	$175.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803173E	SEAT SUPPORT	$172.72	To Order
	4M0803174C	SEAT SUPPORT	$172.72	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803141D	SEAT SUPPORT	$107.54	To Order
	4M0803142C	SEAT SUPPORT	$123.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803285B	REINFORCEMENT	$67.76	To Order
	4M0803286C	REINFORCEMENT	$69.37	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6803897C	ARM	$131.99	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6803345D	ARM	$113.87	To Order

Photo	Part No	Description	Price (each)	Stock
	N10549703	NUT, SQUARE	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803227F	BRACE	$74.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803228B	BRACE	$669.38	To Order

Photo	Part No	Description	Price (each)	Stock
	N10629602	HEX COLLARED BOLT	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	N10728502	HEX COLLARED BOLT	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	N90943903	GROMMET	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	N90622902	RIVET	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006547	FLOW DRILL SCREW	$1.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0803093F	BOTTOM PLATE	4M0803093F BOTTOM PLATE	$239.25	1
2	4M0803729	EXTENSION	4M0803729 EXTENSION LEFT	$60.28	1
2	4M0803730	EXTENSION	4M0803730 EXTENSION RIGHT	$60.28	1
3	4M0803135E	CLOSING ELEMENT	4M0803135E CLOSING ELEMENT LEFT	$79.46	1
3	4M0803136E	CLOSING ELEMENT	4M0803136E CLOSING ELEMENT RIGHT	$79.56	1
4	4M0803779AF	SIDE MEMBER	4M0803779AF SIDE MEMBER LEFT INNER-LEFT INNER	$262.10	1
4	4M0803780AF	SIDE MEMBER	4M0803780AF SIDE MEMBER RIGHT INNER-RIGHT INNER	$262.10	1
5	4M0803433D	REINFORCEMENT	4M0803433D REINFORCEMENT LEFT OUTER-LEFT OUTER	$4.31	1
5	4M0803434A	REINFORCEMENT	4M0803434A REINFORCEMENT RIGHT OUTER	$11.96	1
6	4ML803857A	ARM	4ML803857A ARM LEFT	$407.26	1
6	4ML803858A	ARM	4ML803858A ARM RIGHT	$407.26	1
7	4ML803415A	CLAMPING BRACKET	4ML803415A CLAMPING BRACKET LEFT	$422.04	1
7	4ML803416A	CLAMPING BRACKET	4ML803416A CLAMPING BRACKET RIGHT	$422.04	1
8	4ML803041A	ARM	4ML803041A ARM LEFT	$272.84	1
8	4ML803042A	ARM	4ML803042A ARM RIGHT	$272.84	1
9	4M0803099	CLOSING ELEMENT	4M0803099 CLOSING ELEMENT LEFT	$175.39	1
9	4M0803100	CLOSING ELEMENT	4M0803100 CLOSING ELEMENT RIGHT	$175.39	1
10	4M0803173E	SEAT SUPPORT	4M0803173E SEAT SUPPORT LEFT FRONT	$172.72	1
10	4M0803174C	SEAT SUPPORT	4M0803174C SEAT SUPPORT RIGHT FRONT	$172.72	1
11	4M0803141D	SEAT SUPPORT	4M0803141D SEAT SUPPORT LEFT REAR	$107.54	1
11	4M0803142C	SEAT SUPPORT	4M0803142C SEAT SUPPORT RIGHT REAR	$123.79	1
12	4M0803285B	REINFORCEMENT	4M0803285B REINFORCEMENT LEFT	$67.76	1
12	4M0803286C	REINFORCEMENT	4M0803286C REINFORCEMENT RIGHT	$69.37	1
13	-	ARM	ARM SEE ILLUSTRATION : 809.02-LEFT	-	-	Enquire
14	4M6803897C	ARM	4M6803897C ARM	$131.99	1
15	-	ARM	ARM SEE ILLUSTRATION : 809.02-RIGHT	-	-	Enquire
16	4M6803345D	ARM	4M6803345D ARM	$113.87	1
17	N10549703	NUT, SQUARE	N10549703 NUT, SQUARE M6	$1.43	2
18	4M0803227F	BRACE	4M0803227F BRACE LEFT-LEFT	$74.75	1
19	4M0803228B	BRACE	4M0803228B BRACE RIGHT-RIGHT	$669.38	1
20	N10629602	HEX COLLARED BOLT	N10629602 HEX COLLARED BOLT	$3.51	4
21	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X16	$3.05 MSRP: ~~7.27~~ (58% off)	1
22	N10728502	HEX COLLARED BOLT	N10728502 HEX COLLARED BOLT M10X40	$3.55	1
23	N90943903	GROMMET	N90943903 GROMMET	$4.31	-
24	N90622902	RIVET	N90622902 RIVET	$0.49	-
25	WHT006547	FLOW DRILL SCREW	WHT006547 FLOW DRILL SCREW M5X20	$1.23	14
