Name: SUPPORT FOR COOLANT RADIATOR
Rating: 5.0 (1 reviews)

SUPPORT FOR COOLANT RADIATOR of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - SUPPORT FOR COOLANT RADIATOR

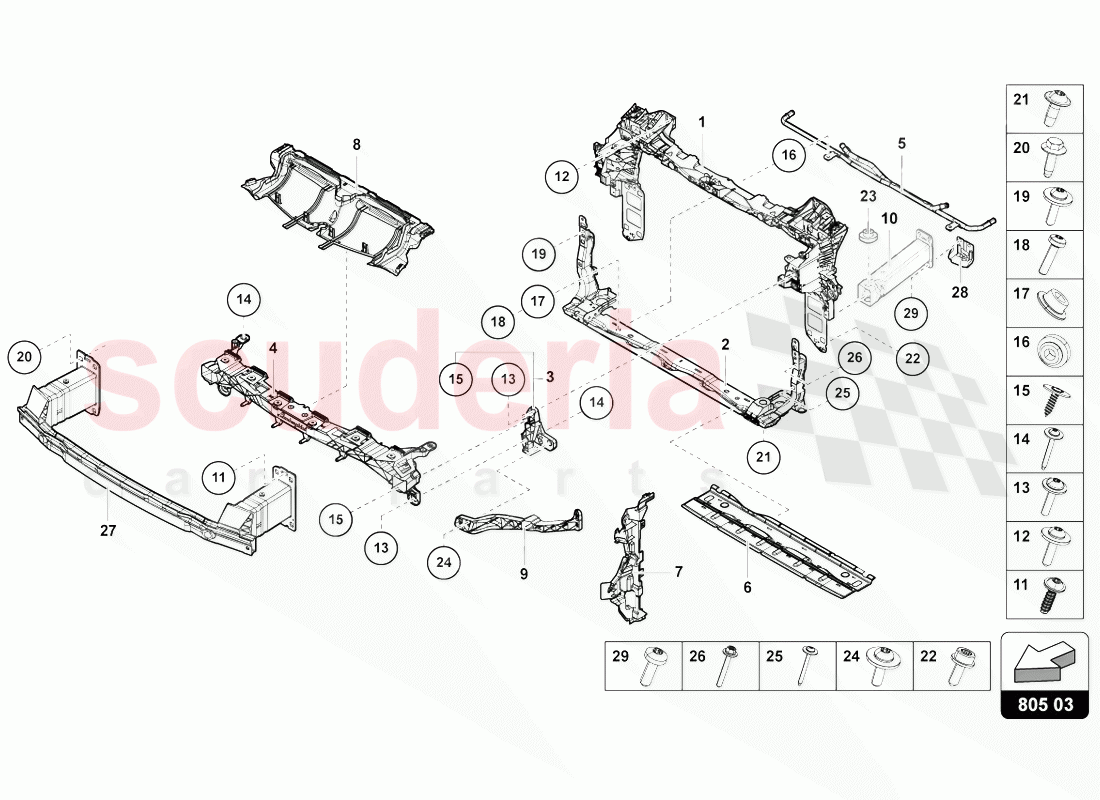

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML805594A	SUPPORT FOR COOLANT RADIATOR	$682.80	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805295A	LOCK CARRIER WITH MOUNTING FOR COOLANT RADIATOR	$577.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805133	BRACKET	$112.05	To Order
	4ML805134	SIDE MEMBER	$95.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805262	CROSS MEMBER	$483.13	To Order

Photo	Part No	Description	Price (each)	Stock
		HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805607	BRACKET FOR HEADLIGHT	$74.70	To Order
	4ML805608	BRACKET FOR HEADLIGHT	$74.58	To Order

Photo	Part No	Description	Price (each)	Stock
		SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0805399B	HEXAGON SOCKET HEAD PANEL BOLT	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	N91132602	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	N91228201	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	867129669	GROMMET	$2.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	BUSH	$8.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N10413408	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N90993603	HEX SOCKET HEAD BOLT (COMBI)	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	N91196402	HEXAGON BOLT	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N91262801	HEX SOCKET HEAD BOLT (COMBI)	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N91215101	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
		BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90684704	HEXAGON SOCKET HEAD BOLT (COMBI)	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	N91262801	HEX SOCKET HEAD BOLT (COMBI)	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N10826101	HEXAGON BOLT WITH WASHER	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML807109A	BUMPER CARRIER	$1,209.67	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802277B	ANGLED BRACKET	$21.86	To Order
	4M0802278B	ANGLED BRACKET	$21.86	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096801	HEXAGON SOCKET FLAT HEAD BOLT	$1.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML805594A	SUPPORT FOR COOLANT RADIATOR	4ML805594A SUPPORT FOR COOLANT RADIATOR WITHOUT ADDITIONAL FRONT UNDERBODY GUARD	$682.80	1
2	4M0805295A	LOCK CARRIER WITH MOUNTING FOR COOLANT RADIATOR	4M0805295A LOCK CARRIER WITH MOUNTING FOR COOLANT RADIATOR	$577.98	1
3	4ML805133	BRACKET	4ML805133 BRACKET LEFT	$112.05	1
3	4ML805134	SIDE MEMBER	4ML805134 SIDE MEMBER RIGHT	$95.93	1
4	4ML805262	CROSS MEMBER	4ML805262 CROSS MEMBER FRONT	$483.13	1
5	-	HOSE CONNECTOR	HOSE CONNECTOR 121-060	-	-	Enquire
6	-	SPOILER	SPOILER LOWER FRONT 121-060	-	-	Enquire
7	-	AIR GUIDE	AIR GUIDE 121-060	-	-	Enquire
8	-	AIR GUIDE	AIR GUIDE UPPER FRONT 121-060	-	-	Enquire
9	4ML805607	BRACKET FOR HEADLIGHT	4ML805607 BRACKET FOR HEADLIGHT LEFT	$74.70	1
9	4ML805608	BRACKET FOR HEADLIGHT	4ML805608 BRACKET FOR HEADLIGHT RIGHT	$74.58	1
10	-	SIDE MEMBER	SIDE MEMBER SEE ILLUSTRATION : 805.02	-	-	Enquire
11	8K0805399B	HEXAGON SOCKET HEAD PANEL BOLT	8K0805399B HEXAGON SOCKET HEAD PANEL BOLT 7X22	$3.45	1
12	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	N90993602 TORX SCREW (COMBINATION), SELF-LOCKING	$1.34	2
13	N91132602	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91132602 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M6X28	$2.78	6
14	N91228201	HEX SOCKET HEAD BOLT (COMBI)	N91228201 HEX SOCKET HEAD BOLT (COMBI) T30	-	4	Enquire
15	-	SCREW	SCREW NO PART - INCLUDED IN REF.:- 3	-	-	Enquire
16	867129669	GROMMET	867129669 GROMMET	$2.50 MSRP: ~~7.07~~ (64.6% off)	2
17	1K0129734B	BUSH	1K0129734B BUSH	$8.84	2
18	N10413408	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10413408 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$0.88	2
19	N90993603	HEX SOCKET HEAD BOLT (COMBI)	N90993603 HEX SOCKET HEAD BOLT (COMBI) M6X25	$1.55	6
20	N91196402	HEXAGON BOLT	N91196402 HEXAGON BOLT M10X35	$3.51	8
21	N91262801	HEX SOCKET HEAD BOLT (COMBI)	N91262801 HEX SOCKET HEAD BOLT (COMBI) T30	$3.11	2
22	N91215101	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91215101 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X25	$2.15 MSRP: ~~7.11~~ (69.8% off)	2
23	-	BRACKET	BRACKET SEE ILLUSTRATION : 805.02	-	-	Enquire
24	N90684704	HEXAGON SOCKET HEAD BOLT (COMBI)	N90684704 HEXAGON SOCKET HEAD BOLT (COMBI) M6X20	$1.13	8
25	N91262801	HEX SOCKET HEAD BOLT (COMBI)	N91262801 HEX SOCKET HEAD BOLT (COMBI) T30	$3.11	2
26	N10826101	HEXAGON BOLT WITH WASHER	N10826101 HEXAGON BOLT WITH WASHER M8X65MM	$4.23	2
27	4ML807109A	BUMPER CARRIER	4ML807109A BUMPER CARRIER	$1,209.67	1
28	4M0802277B	ANGLED BRACKET	4M0802277B ANGLED BRACKET LEFT	$21.86	-
28	4M0802278B	ANGLED BRACKET	4M0802278B ANGLED BRACKET RIGHT	$21.86	-
29	N91096801	HEXAGON SOCKET FLAT HEAD BOLT	N91096801 HEXAGON SOCKET FLAT HEAD BOLT M6X20	$1.55 MSRP: ~~7.29~~ (78.7% off)	8
