Name: BOTTOM PLATE
Rating: 5.0 (1 reviews)

View All

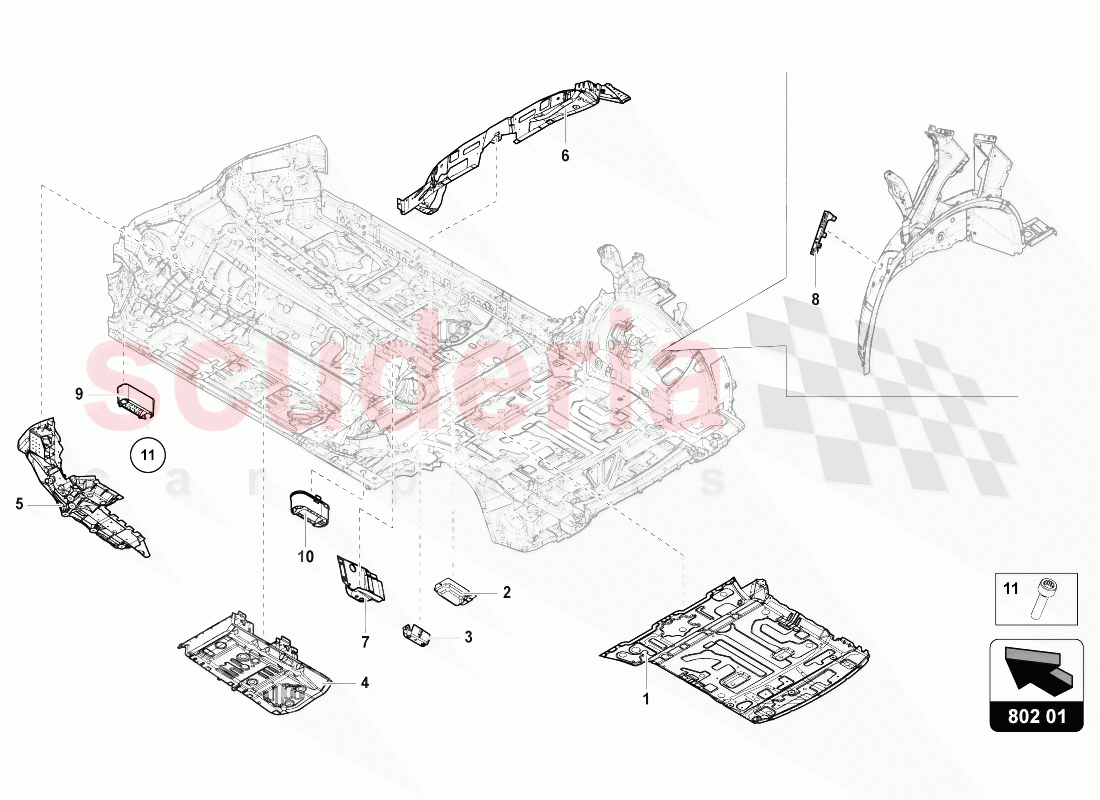

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M6802069H	FLOOR,RR,FRONT	$528.24	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802081	REAR CROSS PANEL	$422.04	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802845C	SOCKET - JACK	$34.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802847B	SOCKET - JACK	$35.05	To Order

Photo	Part No	Description	Price (each)	Stock
	N91128701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M6802069H	FLOOR,RR,FRONT	4M6802069H FLOOR,RR,FRONT	$528.24	1
2	4M0802763D	CONSOLE	4M0802763D CONSOLE LEFT	$91.00	1
2	4M0802764D	CONSOLE	4M0802764D CONSOLE RIGHT	$91.00	1
3	4M0802781A	CONSOLE	4M0802781A CONSOLE LEFT	$72.33	1
3	4M0802782A	CONSOLE	4M0802782A CONSOLE RIGHT	$72.33	1
4	4M0802015	BOTTOM PLATE	4M0802015 BOTTOM PLATE LEFT	$409.95	1
4	4M0802016	BOTTOM PLATE	4M0802016 BOTTOM PLATE RIGHT	$409.95	1
5	4M0802313G	MOUNTING PLATE	4M0802313G MOUNTING PLATE LEFT	$903.21	1
5	4M0802314G	MOUNTING PLATE	4M0802314G MOUNTING PLATE RIGHT	$720.43	1
6	4M0802081	REAR CROSS PANEL	4M0802081 REAR CROSS PANEL	$422.04	1
7	4M0802245B	CONSOLE	4M0802245B CONSOLE LEFT	$56.25	1
7	4M0802246B	CONSOLE	4M0802246B CONSOLE RIGHT	$56.46	1
8	4M0802177B	RETAINING PLATE FOR TRIM	4M0802177B RETAINING PLATE FOR TRIM LEFT	$19.49	1
8	4M0802178B	RETAINING PLATE FOR TRIM	4M0802178B RETAINING PLATE FOR TRIM RIGHT	$19.49	1
9	4M0802845C	SOCKET - JACK	4M0802845C SOCKET - JACK	$34.35	1
10	4M0802847B	SOCKET - JACK	4M0802847B SOCKET - JACK	$35.05	1
11	N91128701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91128701 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X32	$3.11 MSRP: ~~7.14~~ (56.4% off)	2
