Name: DOOR
Rating: 5.0 (1 reviews)

View All

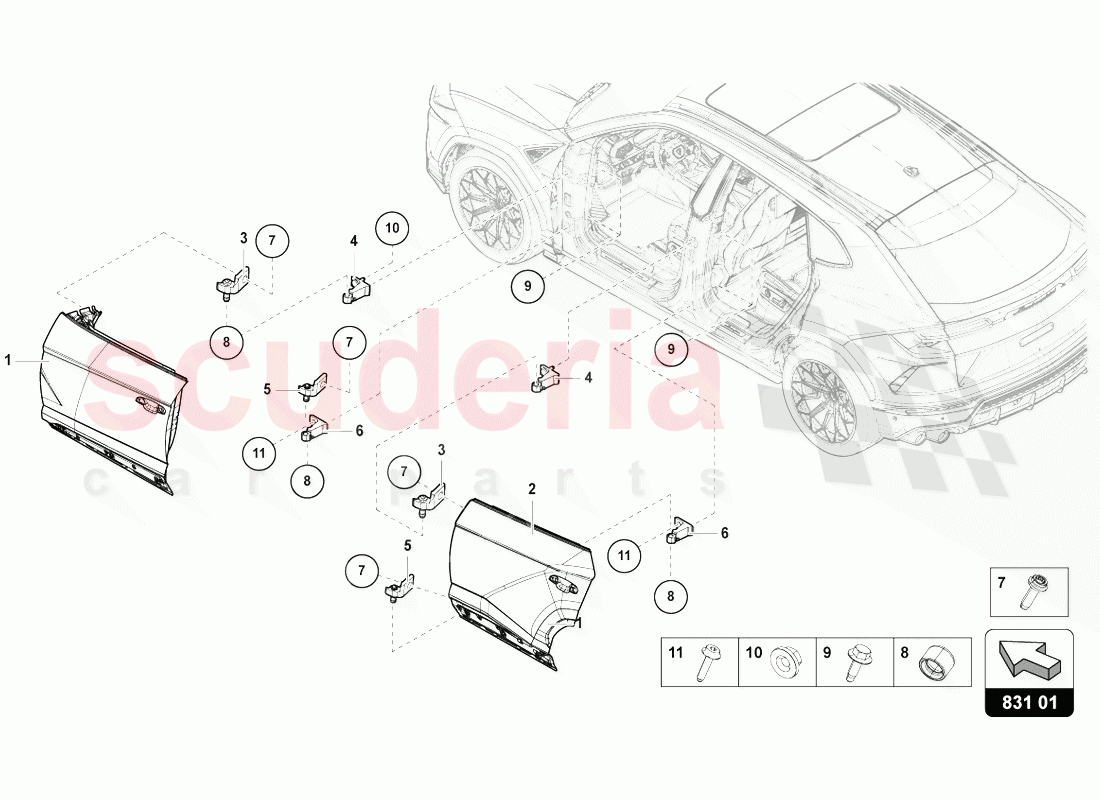

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91258201	INT. SERRATION FLANGE SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	8T0837947	COVER CAP	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N01953010	HEXAGON FLANGE M8X25	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004869	HEX. NUT WITH WASHER	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000042A	HEX SOCKET HEAD COLLARED BOLT	$1.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4ML831051A	DOOR SHELL	4ML831051A DOOR SHELL LEFT FRONT	$8,635.74	1
1	4ML831052A	DOOR SHELL	4ML831052A DOOR SHELL RIGHT FRONT	$8,635.74	1
2	4ML833051A	DOOR SHELL	4ML833051A DOOR SHELL LEFT REAR	$8,555.09	1
2	4ML833052A	DOOR SHELL	4ML833052A DOOR SHELL RIGHT REAR	$9,657.23	1
3	4K8833407A	HINGE	4K8833407A HINGE LEFT	$18.75	2
3	4K8833408A	HINGE	4K8833408A HINGE RIGHT	$18.75	2
4	80A831403E	DOOR HINGE HALF- LOWER PART	80A831403E DOOR HINGE HALF- LOWER PART LEFT UPPER	$32.27	2
4	80A831404E	DOOR HINGE HALF- LOWER PART	80A831404E DOOR HINGE HALF- LOWER PART RIGHT UPPER	$32.27	2
5	8S0833405A	DOOR HINGE HALF- UPPER PART	8S0833405A DOOR HINGE HALF- UPPER PART LEFT LOWER	$20.03	2
5	8S0833406A	DOOR HINGE HALF- UPPER PART	8S0833406A DOOR HINGE HALF- UPPER PART RIGHT LOWER	$20.03	2
6	8V5833403E	DOOR HINGE HALF- LOWER PART	8V5833403E DOOR HINGE HALF- LOWER PART LEFT	$32.27	2
6	8V5833404E	DOOR HINGE HALF- LOWER PART	8V5833404E DOOR HINGE HALF- LOWER PART RIGHT	$32.27	2
7	N91258201	INT. SERRATION FLANGE SCREW	N91258201 INT. SERRATION FLANGE SCREW M10X32	$2.23	8
8	8T0837947	COVER CAP	8T0837947 COVER CAP	$1.08	8
9	N01953010	HEXAGON FLANGE M8X25	N01953010 HEXAGON FLANGE M8X25 M8X25	$0.92	8
10	WHT004869	HEX. NUT WITH WASHER	WHT004869 HEX. NUT WITH WASHER M8	$2.35	4
11	WHT000042A	HEX SOCKET HEAD COLLARED BOLT	WHT000042A HEX SOCKET HEAD COLLARED BOLT M8X36	$1.96	4
