Doors 1 of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Doors 1

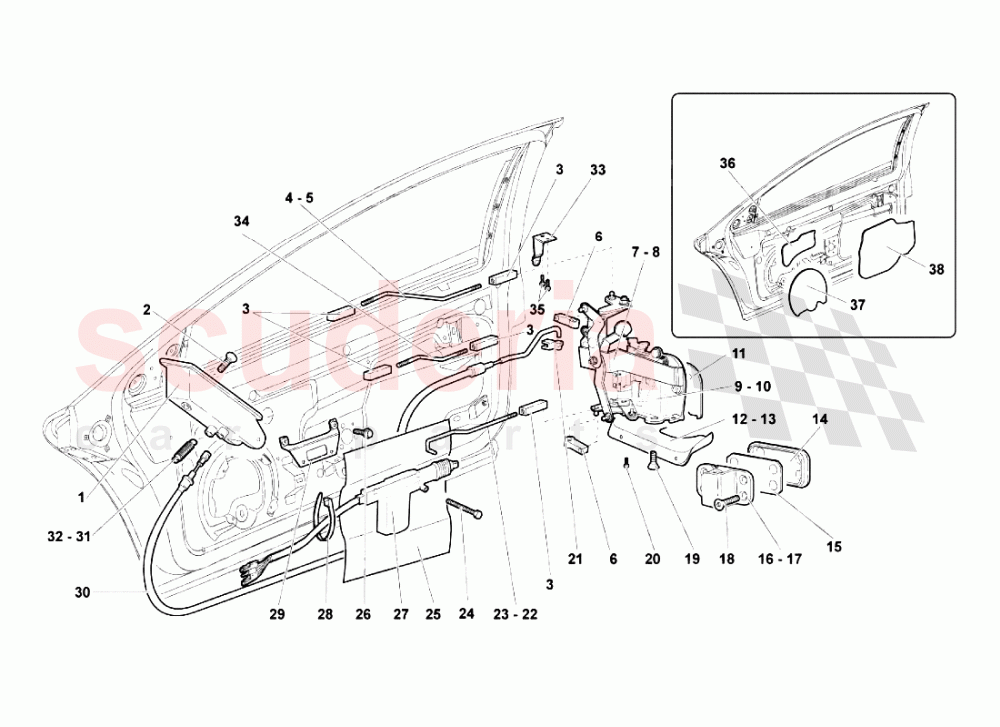

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400827185	HANDLE	400827185 HANDLE	$1,868.29	2
002	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT IN STOCK	$1.43 MSRP: ~~7.17~~ (80.1% off)	2
003	410837261	PAWL	410837261 PAWL	$3.37	5
004	410837238A	RIGHT TIE ROD	410837238A RIGHT TIE ROD	$64.47	1
006	410837299	PAWL	410837299 PAWL	$16.95	2
007	410837019	LEFT LEVER SUPPORTING BRACKET ASSEMBLY	410837019 LEFT LEVER SUPPORTING BRACKET ASSEMBLY	$837.35	1
008	410837162	RIGHT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	410837162 RIGHT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	$1,579.30	1
009	418837011C	LH LOCK	418837011C LH LOCK	$3,904.57	1
010	418837012C	RH LOCK	418837012C RH LOCK	$3,051.07	1
011	600940141	GASKET KIT (LH - RH)	600940141 GASKET KIT (LH - RH)	$192.52	1
012	410837902	RH ORNAMENT	410837902 RH ORNAMENT	$442.22	1
013	410837901	LH ORNAMENT	410837901 LH ORNAMENT	$442.22	1
014	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$15.91	2
015	410837963	SPACER IN STOCK	410837963 SPACER IN STOCK	$16.19	2
016	410831408A	Hinge Half Right hand IN STOCK	410831408A Hinge Half Right hand IN STOCK	$862.90	1
017	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand IN STOCK	$489.25	1
018	N10711501	SCREW M6X20 IN STOCK	N10711501 SCREW M6X20 IN STOCK	$0.74 MSRP: ~~7.30~~ (89.9% off)	4
019	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT IN STOCK	$1.43 MSRP: ~~7.17~~ (80.1% off)	4
020	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
021	410837230	SECURING ELEMENT IN STOCK	410837230 SECURING ELEMENT IN STOCK	$1.10 MSRP: ~~7.27~~ (84.9% off)	2
022	410837654	RIGHT TIE ROD	410837654 RIGHT TIE ROD	$59.76	1
023	410837653	LEFT TIE ROD	410837653 LEFT TIE ROD	$59.76	1
024	WHT003575	SCREW 4.2X19	WHT003575 SCREW 4.2X19	$4.84	2
025	410837909	PROTECTION	410837909 PROTECTION	$533.60	2
026	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	2
027	410837122	ACTUATOR	410837122 ACTUATOR	$1,024.19	2
028	893971850C	CABLE TIES	893971850C CABLE TIES	$0.28 MSRP: ~~7.37~~ (96.2% off)	2
029	410837467	BRACKET	410837467 BRACKET	$57.54	1
030	410837018	DOOR OPENING CABLE ASSEMBLY	410837018 DOOR OPENING CABLE ASSEMBLY	$126.20	1
031	410837723	LH SPRING	410837723 LH SPRING	$60.96	1
032	410837724	RH SPRING	410837724 RH SPRING	$60.96	1
033	410837226A	LEVER	410837226A LEVER	$680.13	2
034	410837511	TIE ROD	410837511 TIE ROD	$59.76	1
035	WHT003370	SCREW	WHT003370 SCREW	$0.34 MSRP: ~~7.34~~ (95.4% off)	2
036	410867253	PROTECTION	410867253 PROTECTION	$8.80	2
037	410867254	PROTECTION	410867254 PROTECTION	$14.86	2
038	410867254A	RH PROTECTION	410867254A RH PROTECTION	$36.50	1
038	410867253A	LH PROTECTION	410867253A LH PROTECTION	$36.50	1
