Rear Bumpers of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Rear Bumpers

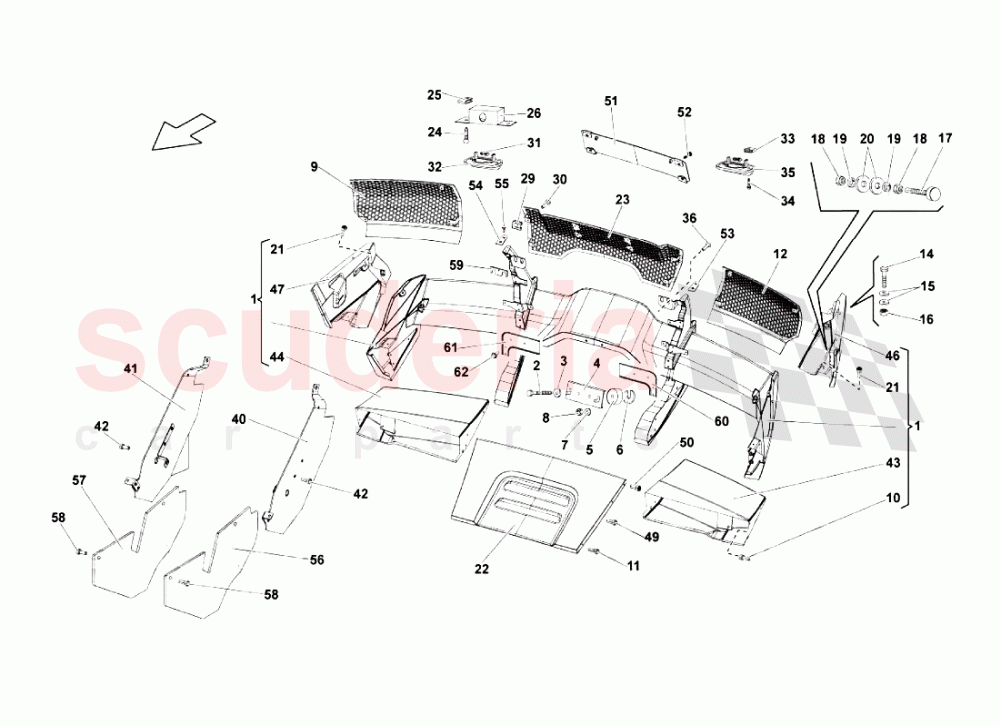

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	429807302	REAR BUMPER ASSEMBLY	429807302 REAR BUMPER ASSEMBLY	$35,779.45	1
002	N10027004	SCREW M8X90	N10027004 SCREW M8X90	$8.48	4
003	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	4
004	410807331	REAR BUMPER FIXING BRACKET ASSEMBLY	410807331 REAR BUMPER FIXING BRACKET ASSEMBLY	$67.08	2
005	410807869	REAR BUMPER CENTRAL RUBBER	410807869 REAR BUMPER CENTRAL RUBBER	$257.40	1
006	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	$153.25	4
007	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	4
008	N1118410	NUT M8	N1118410 NUT M8	-	4	Enquire
010	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	$1.07	12
011	429807486A	SCREW M5X70	429807486A SCREW M5X70	$7.40	2
014	N402936	SCREW M5X16.0	N402936 SCREW M5X16.0	-	4	Enquire
015	N91109202	WASHER	N91109202 WASHER	$0.67 MSRP: ~~7.29~~ (90.8% off)	8
016	N211963	NUT M5	N211963 NUT M5	-	4	Enquire
017	410807699	JOURNAL	410807699 JOURNAL	$90.87	2
018	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	2	Enquire
019	N152785	WASHER 8.4	N152785 WASHER 8.4	-	2	Enquire
020	N90840802	WASHER	N90840802 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	4
021	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	$1.07	4
022	429807649	GRID	429807649 GRID	$9,301.05	1
023	429807675	GRID	429807675 GRID	$3,823.94	1
024	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
025	N90834301	CLIP NUT	N90834301 CLIP NUT	$1.16	4
026	410807001A	BRACKET	410807001A BRACKET	$73.53	2
029	N90834301	CLIP NUT	N90834301 CLIP NUT	$1.16	4
030	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	$1.01	4
031	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W	$9.55	4
032	8N0943022A	RH License Plate Lamp	8N0943022A RH License Plate Lamp	$18.88	1
033	N90834301	CLIP NUT	N90834301 CLIP NUT	$1.16	4
034	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
035	8N0943021A	LH License Plate Lamp	8N0943021A LH License Plate Lamp	$19.11	1
036	N90319404	SCREW	N90319404 SCREW	$1.89	4
040	429863247A	LH INSULATION	429863247A LH INSULATION	$399.20	1
041	429863248A	RH INSULATION	429863248A RH INSULATION	$604.86	1
042	N90319404	SCREW	N90319404 SCREW	$1.89	4
043	429807985	LH WING	429807985 LH WING	$7,217.72	1
044	429807986	RH WING	429807986 RH WING	$7,217.72	1
046	429807119	LH SIDE BUMPER	429807119 LH SIDE BUMPER	$1,995.96	1
047	429807120	RH SIDE BUMPER	429807120 RH SIDE BUMPER	$1,995.96	1
049	N10754501	SCREW M5X50	N10754501 SCREW M5X50	$5.51	2
050	N200006	SCREW M5X40	N200006 SCREW M5X40	-	2	Enquire
051	429807287A	LICENSE PLATE HOLDER	429807287A LICENSE PLATE HOLDER	$151.22	1
052	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	$0.95 MSRP: ~~7.24~~ (86.9% off)	4
053	429827533	SHIM	429827533 SHIM	$131.18	1
054	429827533A	SHIM	429827533A SHIM	$131.18	1
055	410806224	RIVET 3.2X(11-12)	410806224 RIVET 3.2X(11-12)	$0.36 MSRP: ~~7.34~~ (95.1% off)	4
056	429863247B	LH INSULATION	429863247B LH INSULATION	$670.71	1
057	429863248B	RH INSULATION	429863248B RH INSULATION	$670.71	1
058	N90319404	SCREW	N90319404 SCREW	$1.89	4
059	429807175A	ADJUSTMENT SHIM (3	429807175A ADJUSTMENT SHIM (3	$37.19	4
059	429807175	ADJUSTMENT SHIM (2	429807175 ADJUSTMENT SHIM (2	$31.65	4
060	429807347	LH BRACKET	429807347 LH BRACKET	$89.52	1
061	429807348	RH BRACKET	429807348 RH BRACKET	$89.52	1
062	N10536103	SCREW M8X16	N10536103 SCREW M8X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	4
