Lamborghini Murcielago LP670 - Front Hood

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

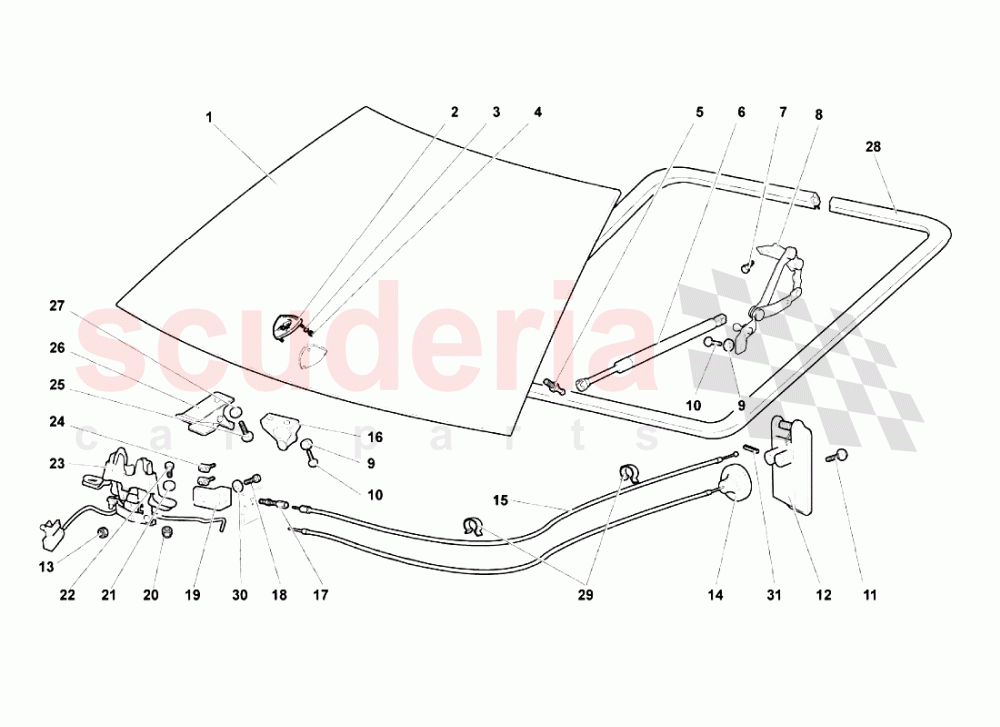

Front Hood of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410823021
FRONT HOOD ASSEMBLY 		$17,802.38 1
002 400853745D
Lamborghini Badge 		$410.94 1
003 4T0853139
CLIP 		$1.43 (80.1% off) 2
004 WHT003570
NUT M3 		$1.81 (74.5% off) 2
005 410827345
JOURNAL 		$51.54 2
006 400823359A
FRONT HOOD STRUT 		$1,409.65 2
007 N90319404
SCREW 		$1.89 2
008 410805383A
FRONT HOOD LEFT HINGE ASSEMBLY 		$350.83 1
008 410805384A
FRONT HOOD RIGHT HINGE ASSEMBLY 		$350.83 1
010 1Z0860505C
SCREW 		$0.92 (87.3% off) 2
011 WHT001190
ROUND HD. SCREW 		$0.53 1
012 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY 		$1,305.01 1
013 N211963
NUT M5 		- 1 Enquire
015 418827531
ENGINE HOOD OPENING CABLE ASSEMBLY 		$90.64 1
016 410823186
STRIKER PLATE ASSY 		$231.85 1
017 410827421
ADJUSTER SCREW 		$6.11 1
018 N01020717
SCREW M5X12 		$0.67 (90.8% off) 1
019 410905131
SECURING PLATE 		$27.77 1
020 N1118312
NUT M6 		- 2 Enquire
021 WHT002961
WASHER 		$0.42 2
022 N91051101
SCREW M6X30 		$1.47 (79.6% off) 2
023 410827501B
LOCK 		$759.41 1
025 1Z0860505C
SCREW 		$0.92 (87.3% off) 2
026 410823183
REAR HOOD SAFETY CATCH BRACKET ASSEMBLY 		$837.35 1
028 410823723
GASKET 		$96.53 1
029 477971851
CLAMP 		$0.21 (97.2% off) 2
030 N152773
WASHER 		- 2 Enquire
031 N133481
SPRING PIN 		- 1 Enquire
