Lamborghini Murcielago LP670 - Frame Elements 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

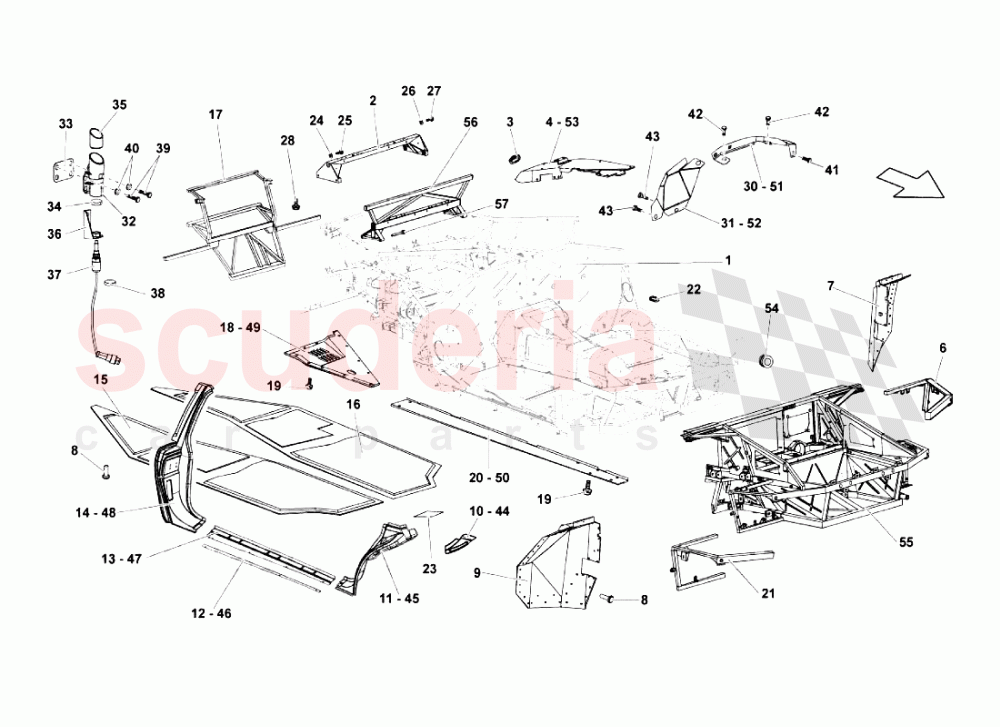

Frame Elements 1 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
003 400821189
Plug 		$2.69 4
004 429813766
RH SHEET 		- 1 Enquire
007 418809153
LEFT FRONT WHEELARCH, REAR PART 		$4,798.39 1
008 410821316
RIVET 		$6.52 66
009 418809154
RIGHT FRONT WHEELARCH, REAR PART 		$4,798.39 1
010 410809440A
RIGID UPPER CONNECTION 		$231.85 1
011 410805047
FRONT LEFT COVERING 		$2,768.84 1
012 410831165
OUTER LOWER LEFT PROFILE 		$84.81 1
013 410801256
CENTER RIGHT COVERING 		$752.69 1
014 418868813
REAR LEFT COVERING 		$618.29 1
015 410825219
BOARD 		$7,486.55 1
016 410825220
BOARD 		$7,486.55 1
018 410825216
RIGHT REAR SIDE MEMBER BOTTOM 		$1,720.43 1
019 WHT003069
SCREW M6X1X20 		$44.78 11
020 410825211
LEFT FRONT SIDE MEMBER BOTTOM 		$1,377.68 1
022 410821801
PLUG 		$37.19 1
023 410837267
LID 		$567.23 2
044 410809439A
RIGID UPPER CONNECTION 		$193.56 1
045 410805048
FRONT RIGHT COVERING 		$2,768.84 1
046 410831166
OUTER LOWER RIGHT PROFILE 		$96.53 1
047 410801255
CENTER LEFT COVERING 		$752.69 1
048 418868814
REAR RIGHT COVERING 		$2,123.69 1
049 410825215A
LEFT REAR SIDE MEMBER BOTTOM 		$2,022.86 1
050 410825210
RIGHT FRONT SIDE MEMBER BOTTOM 		$1,377.68 1
053 429813765
LH SHEET 		- 1 Enquire
054 410805746
FAIRLEAD (E-GEAR) 		$3.24 1
055 429898045A
FRONT FRAME (SEE IDENTITY PLATE PROCEDURE) 		$22,547.00 1
056 429813235
CROSS MEMBER 		$3,010.75 1
057 N91045502
SCREW M8X65 		$4.37 8
