Rear Hood And Spoiler of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Rear Hood And Spoiler

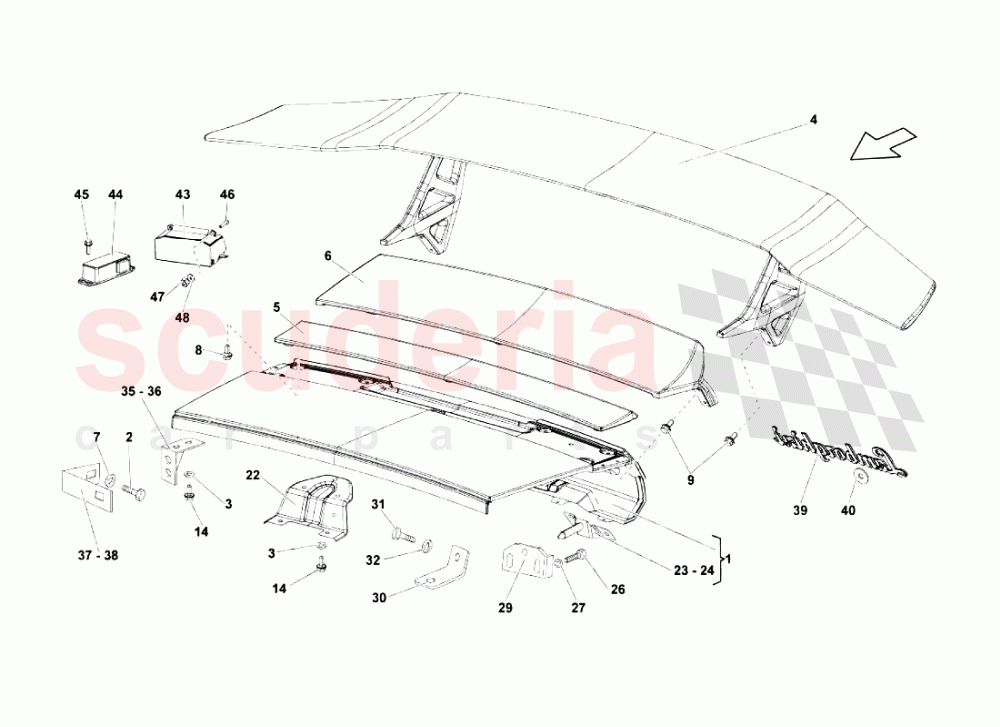

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	429827015A	ENGINE HOOD (REAR VIEW CAMERA)	429827015A ENGINE HOOD (REAR VIEW CAMERA)	$31,807.72	1
001	429827015	ENGINE HOOD (STANDARD)	429827015 ENGINE HOOD (STANDARD)	$27,842.66	1
002	N10536103	SCREW M8X16	N10536103 SCREW M8X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
003	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	7
004	429827933	HIGH REAR WING	429827933 HIGH REAR WING	$28,796.95	1
005	429827488	COVER	429827488 COVER	$7,190.83	1
006	429827948	SILENCER COVER HOOD REAR SPOILER (STANDARD)	429827948 SILENCER COVER HOOD REAR SPOILER (STANDARD)	$17,177.36	1
007	N90840802	WASHER	N90840802 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	2
008	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT	$0.77 MSRP: ~~7.30~~ (89.5% off)	7
009	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT	$0.77 MSRP: ~~7.30~~ (89.5% off)	8
014	N90319404	SCREW	N90319404 SCREW	$1.89	7
022	418827277	LOCK FASTENER CASE	418827277 LOCK FASTENER CASE	$540.33	1
023	410827523	LH BRACKET	410827523 LH BRACKET	$643.83	1
024	410827524	RH BRACKET	410827524 RH BRACKET	$270.18	1
026	N1021723	SCREW M6X20	N1021723 SCREW M6X20	-	4	Enquire
027	WHT002961	WASHER	WHT002961 WASHER	$0.42	4
029	429814421	BRACKET	429814421 BRACKET	$747.31	2
030	418827909	BRACKET	418827909 BRACKET	$45.05	2
031	N10536103	SCREW M8X16	N10536103 SCREW M8X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
032	N1166623	WASHER	N1166623 WASHER	-	2	Enquire
035	410813535	LH BRACKET	410813535 LH BRACKET	$15.60	1
036	410813536	RH BRACKET	410813536 RH BRACKET	$15.60	1
037	410827199	LH BRACKET	410827199 LH BRACKET	$77.42	1
038	410827200	RH BRACKET	410827200 RH BRACKET	$77.42	1
039	400853742B	Lamborghini Lettering	400853742B Lamborghini Lettering	$254.06	1
040	4T0853139	CLIP	4T0853139 CLIP	$1.43 MSRP: ~~7.17~~ (80.1% off)	2
043	410980543	REAR VIEW CAMERA	410980543 REAR VIEW CAMERA	$3,823.94	1
044	410907441	REAR VIEW CAMERA CONTROL UNIT	410907441 REAR VIEW CAMERA CONTROL UNIT	$1,646.50	1
045	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	2
046	N90455205	SCREW M4X10	N90455205 SCREW M4X10	$0.74 MSRP: ~~7.24~~ (89.8% off)	2
047	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
048	N1152221	WASHER	N1152221 WASHER	-	2	Enquire
