Lamborghini Murcielago LP670 - Doors 3

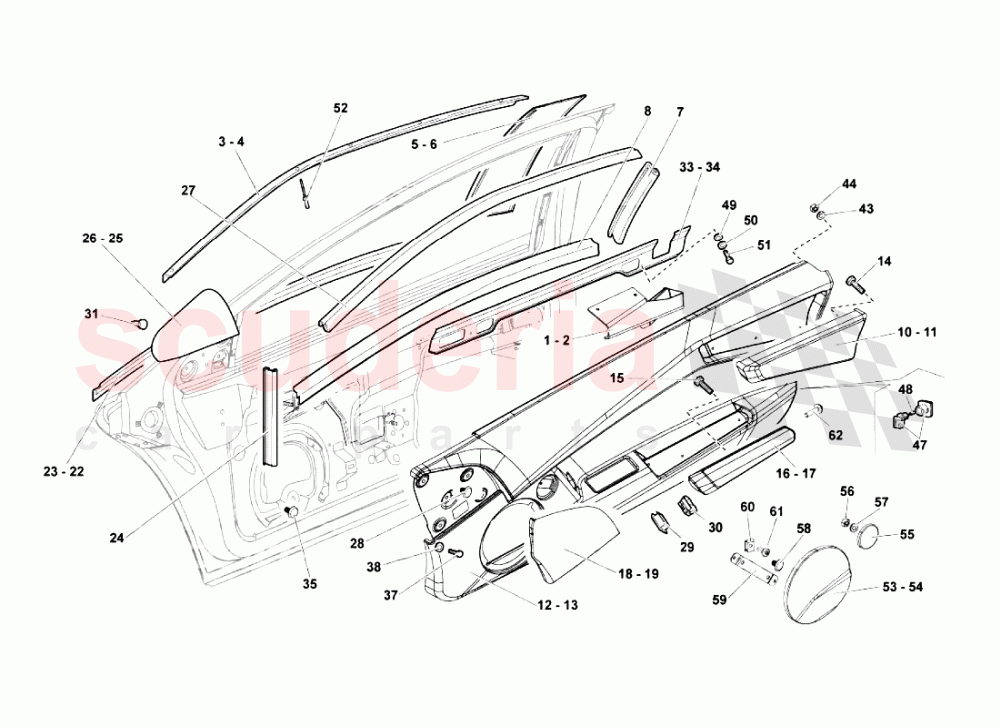

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	429867378A	RH BRACKET	429867378A RH BRACKET	-	1	Enquire
002	429867377A	LH BRACKET	429867377A LH BRACKET	-	1	Enquire
003	418837483	LH CHANNEL	418837483 LH CHANNEL	-	1	Enquire
004	418837484	RH CHANNEL	418837484 RH CHANNEL	-	1	Enquire
005	418868335	LEFT PROFILE	418868335 LEFT PROFILE	-	1	Enquire
006	418868336	RIGHT PROFILE	418868336 RIGHT PROFILE	-	1	Enquire
007	418837863	GASKET	418837863 GASKET	-	2	Enquire
008	410868383	DOOR WINDOWS INTERIOR WATER DEFLUXION PROFILE	410868383 DOOR WINDOWS INTERIOR WATER DEFLUXION PROFILE	-	2	Enquire
010	429868110	RIGHT DOOR UPHOLSTERY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429868110 RIGHT DOOR UPHOLSTERY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
011	429868109	LEFT DOOR UPHOLSTERY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429868109 LEFT DOOR UPHOLSTERY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
012	429867008	RH DOOR PANEL ASSEMBLY	429867008 RH DOOR PANEL ASSEMBLY	-	1	Enquire
013	429867007	LH DOOR PANEL ASSEMBLY	429867007 LH DOOR PANEL ASSEMBLY	-	1	Enquire
014	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	-	12	Enquire
015	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	-	8	Enquire
016	429867348	RIGHT COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429867348 RIGHT COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
017	429867347	LEFT COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429867347 LEFT COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
018	429867462	RIGHT PANEL FRONT COVER ASSEMBLY	429867462 RIGHT PANEL FRONT COVER ASSEMBLY	-	1	Enquire
019	429867461	LEFT PANEL FRONT COVER ASSEMBLY	429867461 LEFT PANEL FRONT COVER ASSEMBLY	-	1	Enquire
022	410868380	RIGHT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE	410868380 RIGHT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE	-	1	Enquire
023	410868379	LEFT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE	410868379 LEFT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE	-	1	Enquire
024	418837977	GASKET	418837977 GASKET	-	2	Enquire
025	429868361	LEFT DOOR TRIANGLE (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429868361 LEFT DOOR TRIANGLE (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
026	429868362	RIGHT DOOR TRIANGLE (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429868362 RIGHT DOOR TRIANGLE (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
027	418837530	GASKET	418837530 GASKET	-	2	Enquire
028	400863119	BUNGS	400863119 BUNGS	-	8	Enquire
029	410868487	DOOR SWITCH BRACKET	410868487 DOOR SWITCH BRACKET	-	2	Enquire
030	410962107	DOOR LOCK/UNLOCK SWITCH	410962107 DOOR LOCK/UNLOCK SWITCH	-	2	Enquire
031	4D0867299A	FASTENER	4D0867299A FASTENER	-	6	Enquire
033	410837839A	INNER WATER SCRAPER RIGHT WINDOW GLASS	410837839A INNER WATER SCRAPER RIGHT WINDOW GLASS	-	1	Enquire
034	410837840A	INNER WATER SCRAPER LEFT WINDOW GLASS	410837840A INNER WATER SCRAPER LEFT WINDOW GLASS	-	1	Enquire
035	400863119	BUNGS	400863119 BUNGS	-	8	Enquire
037	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
038	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
043	WHT001187	WASHER	WHT001187 WASHER	-	16	Enquire
044	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	-	16	Enquire
047	410947413	DOOR LAMP	410947413 DOOR LAMP	-	2	Enquire
049	N10612001	WASHER	N10612001 WASHER	-	8	Enquire
050	WHT003364	WASHER	WHT003364 WASHER	-	8	Enquire
051	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	-	8	Enquire
052	N162151	RIVET 3.2X9.3	N162151 RIVET 3.2X9.3	-	26	Enquire
053	429035474	LEFT COVER (WITHOUT LOUDSPEAKERS)	429035474 LEFT COVER (WITHOUT LOUDSPEAKERS)	-	1	Enquire
054	429035474A	RIGHT COVER (WITHOUT LOUDSPEAKERS)	429035474A RIGHT COVER (WITHOUT LOUDSPEAKERS)	-	1	Enquire
055	429035475	COVER (WITHOUT LOUDSPEAKERS)	429035475 COVER (WITHOUT LOUDSPEAKERS)	-	2	Enquire
056	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	-	2	Enquire
057	N1152221	WASHER	N1152221 WASHER	-	2	Enquire
058	400863119	BUNGS	400863119 BUNGS	-	4	Enquire
059	429867508	BRACKET (WITHOUT LOUDSPEAKERS)	429867508 BRACKET (WITHOUT LOUDSPEAKERS)	-	2	Enquire
060	N90156103	CLIP	N90156103 CLIP	-	4	Enquire
061	N90648704	SCREW ST4.8X16	N90648704 SCREW ST4.8X16	-	4	Enquire
062	WHT000757	SCREW	WHT000757 SCREW	-	2	Enquire
