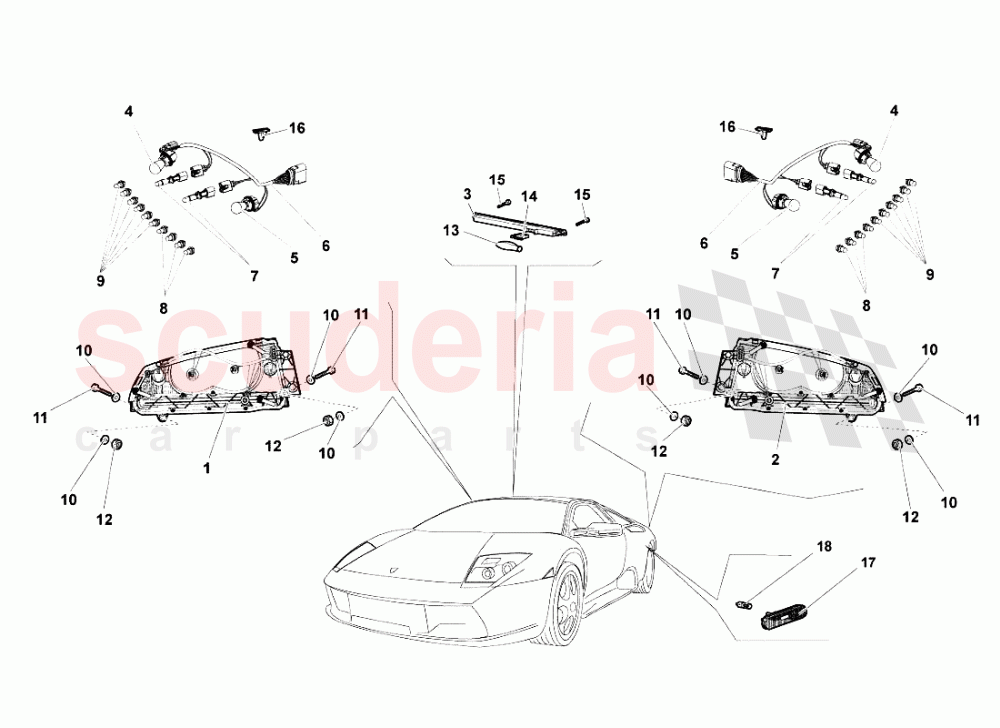

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410945096C	RH REAR LIGHT ASSEMBLY	410945096C RH REAR LIGHT ASSEMBLY	$6,377.68	1
002	410945095C	LH REAR LIGHT ASSEMBLY	410945095C LH REAR LIGHT ASSEMBLY	$6,377.68	1
003	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	$191.59	1
004	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W	$11.66	2
005	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W	$8.50	2
007	N90054401	LAMP W3W	N90054401 LAMP W3W	$8.48	4
008	N0177539	LAMP W5W	N0177539 LAMP W5W	$13.10	8
009	N01775311	LAMP WY5W	N01775311 LAMP WY5W	$7.87	12
010	N01166623	WASHER	N01166623 WASHER	$1.23	4
011	N10607601	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10607601 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$2.35 MSRP: ~~7.03~~ (66.6% off)	4
012	WHT000765	NUT	WHT000765 NUT	$1.25 MSRP: ~~7.19~~ (82.6% off)	4
013	410945090	PROTECTION	410945090 PROTECTION	$10.49	1
014	867906231	CONNECTOR	867906231 CONNECTOR	$1.19 MSRP: ~~4.45~~ (73.3% off)	1
015	WHT003104	SCREW M4X25	WHT003104 SCREW M4X25	$4.90	2
016	410972672	SUPPORT	410972672 SUPPORT	$0.95 MSRP: ~~7.24~~ (86.9% off)	2
